Hayter Heritage RS17-102H - 149E (290000001 - 290999999) - Electrics

Name: Hayter Heritage RS17-102H - 149E (290000001 - 290999999) - Electrics
SKU: rs17 102h heritage tractor 149e electrics-group
Price: 3.2 GBP
Availability: InStock

Part No. rs17 102h heritage tractor 149e electrics-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage RS17-102H - 149E (290000001 - 290999999) - Electrics

Description

Hayter Heritage RS17-102H - 149E

Serial No: 290000001 - 290999999

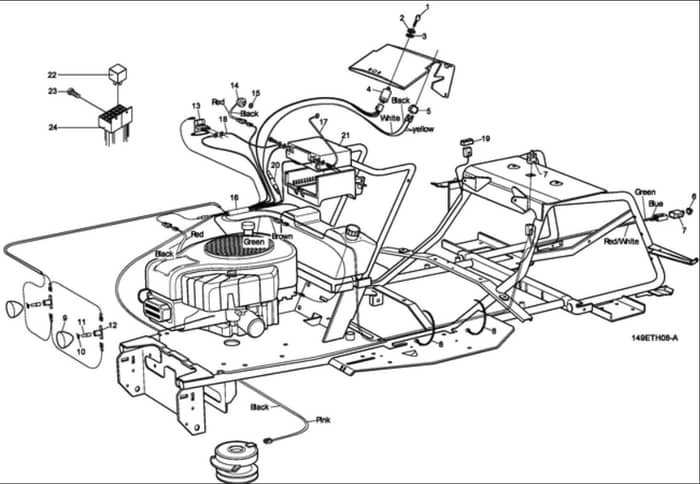

Electrics - Parts Diagram

	Part No.	Details
1	HAAL525316 Available to backorder	Key - Ignition	£3.84 £3.20
4	AK525315 In stock	Ignition Switch	£32.32 £26.93
5	HAAL514328 Available to backorder	Light Switch	£20.28 £16.90
13	AK521361 In stock	Relay	£31.69 £26.41
21	HAAL451000 Available to backorder	Battery	£139.92 £116.60
