Hayter Heritage RS17-102H - 149E (290000001 - 290999999) - Cutterdeck

Description

Hayter Heritage RS17-102H - 149E

Serial No: 290000001 - 290999999

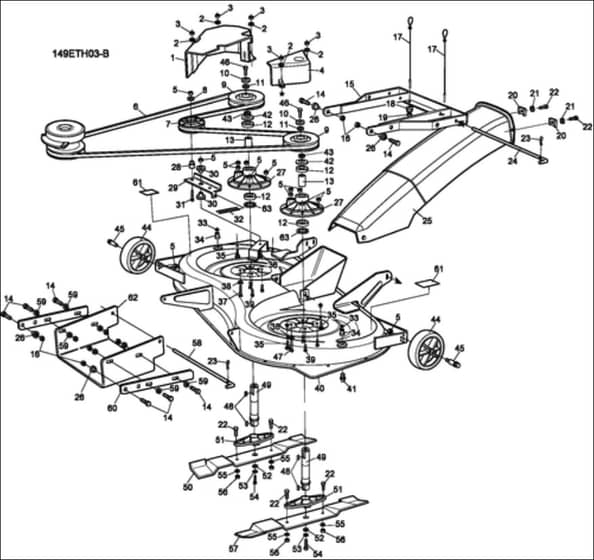

Cutterdeck - Parts Diagram

	Part No.	Details
1	AK51487501 In stock	Cover	£12.24 £10.20
2	AK703451 In stock	Washer	£1.03 £0.86
4	AK51489701 Available to backorder	Cover	£7.44 £6.20
5	HAAL704537 Available to backorder	Nut	£1.13 £0.94
7	HAAL464459 Available to backorder	Pulley	£48.96 £40.80
9	HAAL521451 In stock	Pulley	£44.75 £37.29
12	HAAL700503 Available to backorder	Bearing	£44.52 £37.10
14	HAAL700704 Available to backorder	Bolt	£2.32 £1.93
16	HAAL700122 Available to backorder	Nut	£1.22 £1.02
17	AK514861 Available to backorder	Cable	£9.84 £8.20
21	HAAL700200 Available to backorder	Washer	£0.98 £0.82
26	HAAL51415930 Available to backorder	Bush	£29.76 £24.80
27	HAAL464121 Available to backorder	Quill	£60.48 £50.40
28	AK514216 In stock	Spacer	£2.96 £2.47
40	AK51482601 Available to backorder	Deck	£296.40 £247.00
44	HAAL514887 Available to backorder	Wheel	£16.56 £13.80
45	HAAL52111030 Available to backorder	Bolt	£46.92 £39.10
48	AK701595 In stock	Key	£1.44 £1.20
50	HAAL521207 Available to backorder	Blade Rh	£72.12 £60.10
51	HAAL514176 Available to backorder	Blade Holder	£24.96 £20.80
53	AK702254 Available to backorder	Washer	£1.04 £0.87
55	HAAL700137 Available to backorder	Washer	£0.50 £0.42
57	HAAL521208 Available to backorder	Blade Lh	£72.12 £60.10
60	HAAL51421301 Available to backorder	Height Adjuster Plate	£15.72 £13.10
63	HAAL704863 Available to backorder	Washer	£5.28 £4.40
