Hayter Heritage RS17-102H - 149E - (149E270000001 - 149E280999999)
Hayter Heritage RS17-102H - 149E (149E270000001 - 149E280999999) - Electrics

Hayter Heritage RS17-102H - 149E (149E270000001 - 149E280999999) - Electrics

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage RS17-102H - 149E (149E270000001 - 149E280999999) - Electrics

Description

Hayter Heritage RS17-102H - 149E

Serial No: 149E270000001 - 149E280999999

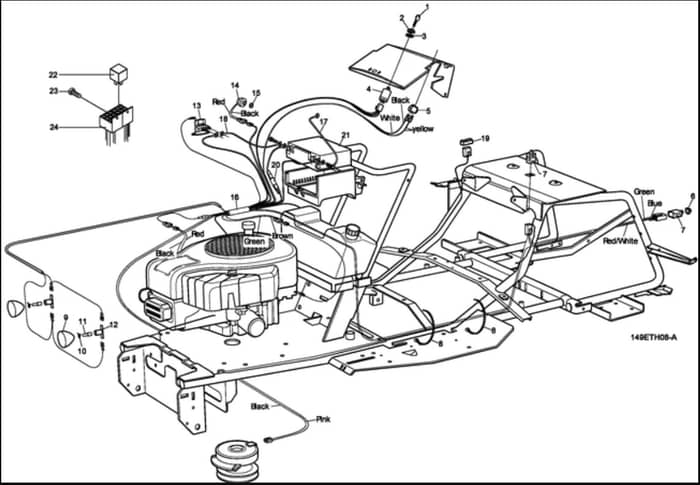

Electrics - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HAAL525316 Available to backorder	Key - Ignition		£3.72 £3.10
	4		AK525315 Available to backorder	Ignition Switch		£31.12 £25.93
	5		HAAL514328 Available to backorder	Light Switch		£19.60 £16.33
	13		AK521361 In stock	Relay		£33.52 £27.93
	21		HAAL451000 Available to backorder	Battery		£145.76 £121.47

Description

Hayter Heritage RS17-102H - 149E

Serial No: 149E270000001 - 149E280999999

Electrics - Parts Diagram
