Hayter Heritage RS17-102H - 149D (149D260000001 - 149D260999999) - Seat Assembly

Name: Hayter Heritage RS17-102H - 149D (149D260000001 - 149D260999999) - Seat Assembly
SKU: rs17 102h heritage tractor 149d seat assembly-group
Price: 0.94 GBP
Availability: InStock

Part No. rs17 102h heritage tractor 149d seat assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage RS17-102H - 149D (149D260000001 - 149D260999999) - Seat Assembly

Description

Hayter Heritage RS17-102H - 149D

Serial No: 149D260000001 - 149D260999999

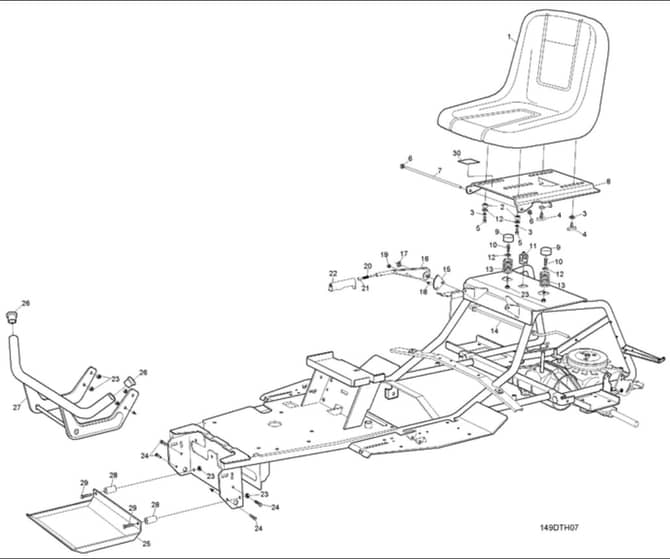

Seat Assembly - Parts Diagram

	Part No.	Details
1	AK514166 Available to backorder	Seat	£119.16 £99.30
2	HAAL521727 Available to backorder	Spacer	£1.56 £1.30
5	HAAL700051 Available to backorder	Bolt	£1.22 £1.02
7	HAAL51414130 Available to backorder	Rod	£7.44 £6.20
23	HAAL704537 Available to backorder	.	£1.13 £0.94
28	HAAL514299 Available to backorder	Rocker Stop	£4.08 £3.40
