Hayter Heritage M10-30H - 134E (290000001 - 290999999) - Mower Housing

Name: Hayter Heritage M10-30H - 134E (290000001 - 290999999) - Mower Housing
SKU: m10 30h heritage tractor 134e mower housing-group
Price: 2.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage M10-30H - 134E (290000001 - 290999999) - Mower Housing

Description

Hayter Heritage M10-30H - 134E

Serial No: 290000001 - 290999999

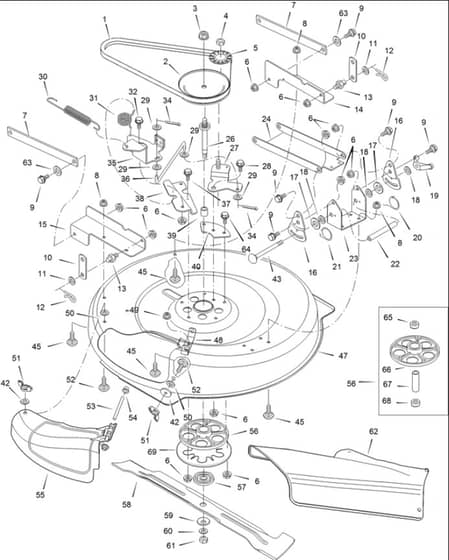

Mower Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BP37X111MA Available to backorder	Belt Blade Drive	£25.98 £21.65
2	BP1401092MA Available to backorder	Pulley Input	£71.17 £59.31
3	BP15X140MA Available to backorder	Locknut	£5.82 £4.85
8	HAMU15X79 Available to backorder	Nut Flange	£3.04 £2.53
11	BP017X91MA Available to backorder	Washer	£3.88 £3.23

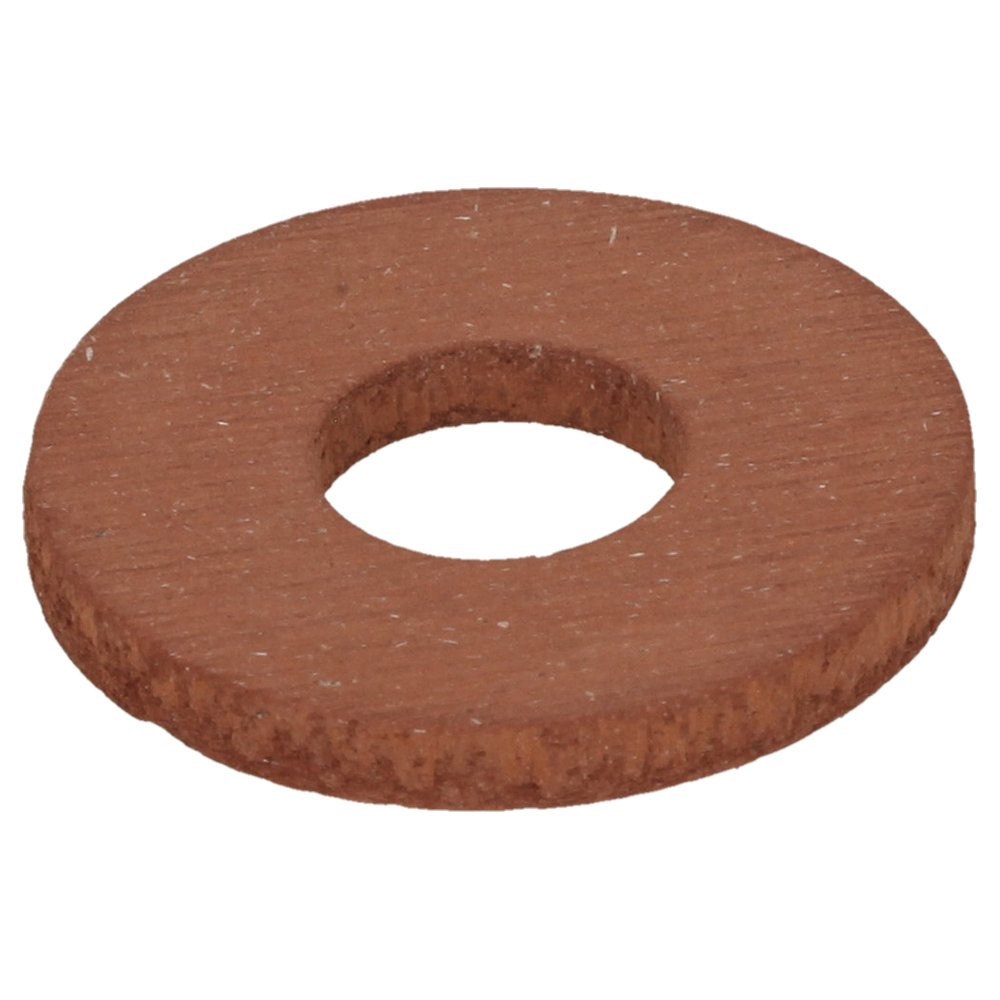

17	BP094137MA Available to backorder	Pad Friction	£4.88 £4.07
18	BP017X45MA Available to backorder	Washer	£3.88 £3.23
19	BP095004MA Available to backorder	Wingnut	£13.72 £11.43
20	BP166X43MA Available to backorder	Spring Left Torsion	£5.46 £4.55
26	BP1401065MA Available to backorder	Shaft Splined	£18.46 £15.38
27	BP1401258E701MA Available to backorder	Idler Arm Assembly	£108.72 £90.60
28	HAMU9X39 Available to backorder	Bolt Shoulder	£4.40 £3.67
30	HAMU165X157 Available to backorder	Spring Extension	£11.48 £9.57
31	BP166X46MA Available to backorder	Spring Torsion	£5.30 £4.42
39	HAMU1401094 Available to backorder	Spacer Jackshaft	£5.26 £4.38
49	BP704067 Available to backorder	Nut Flange	£3.24 £2.70
51	BP703141 Available to backorder	Nut Wing	£3.76 £3.13
53	BP094957ZMA Available to backorder	Rod Chute Deflector	£7.55 £6.29
55	BP1401080MA Available to backorder	Cover Mulch	£68.45 £57.04
58	BP1401079E701MA Available to backorder	Blade	£64.20 £53.50
59	BP17X166MA Available to backorder	Washer Cup	£7.84 £6.53
60	BP17X165MA Available to backorder	Washer	£6.31 £5.26
61	BP15X100MA Available to backorder	Nut Blade Mount	£3.78 £3.15
65	HAMU92281 Available to backorder	Bearing Upper Jackshaft	£12.72 £10.60
66	BP94282MA Available to backorder	Jackshaft Housing	£119.99 £99.99

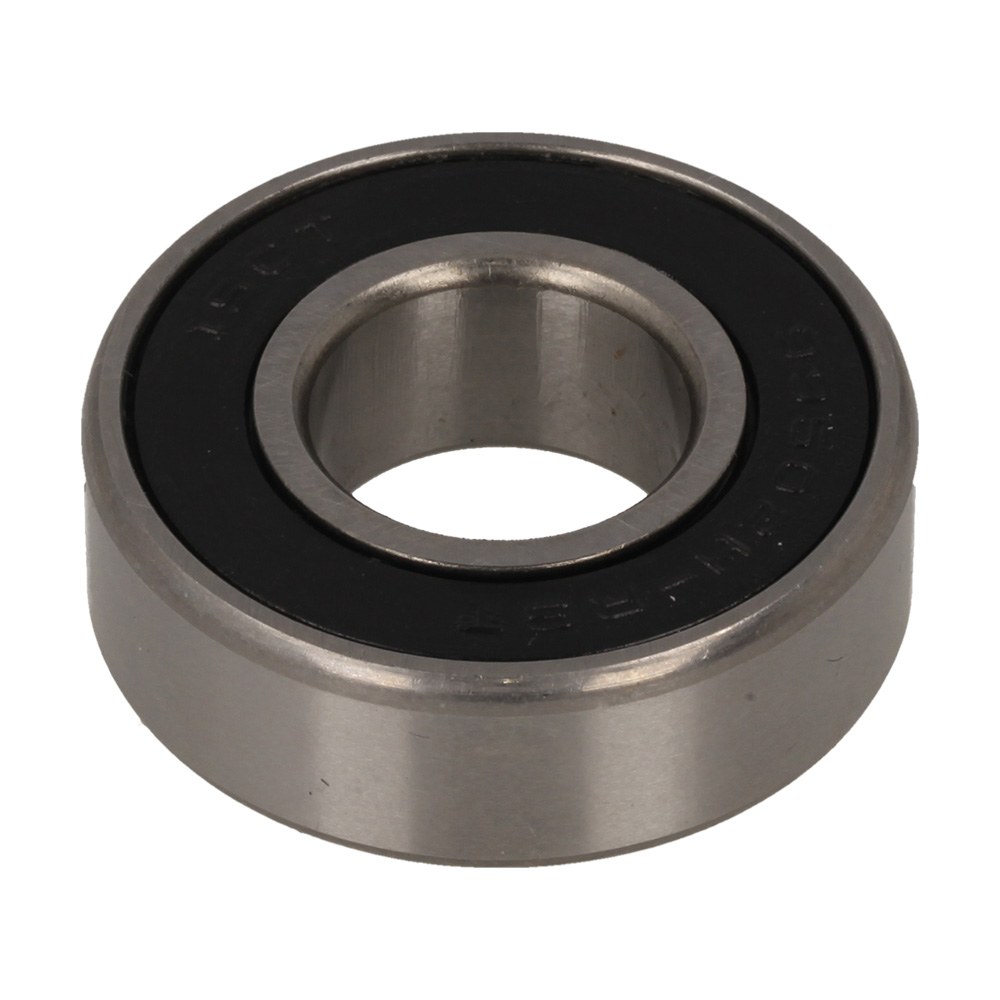

68	BP092282MA Available to backorder	Bearing Lower Jackshaft	£10.27 £8.56
69	BP7300836ZMA Available to backorder	Plate Jackshaft Support	£13.28 £11.07
