Hayter Heritage M10-30H - 134E (290000001 - 290999999) - Mower Housing 02

Description

Hayter Heritage M10-30H - 134E

Serial No: 290000001 - 290999999

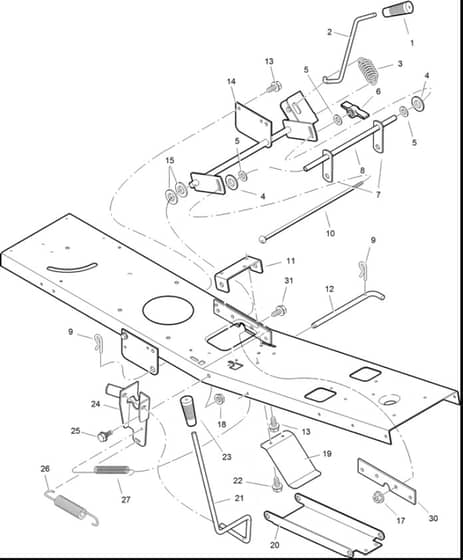

Mower Housing 02 - Parts Diagram

	Part No.	Details
4	BP094137MA Available to backorder	Pad Friction	£4.92 £4.10
5	BP017X45MA Available to backorder	Washer	£3.91 £3.26
6	BP095004MA Available to backorder	Wingnut	£13.84 £11.53
11	HAMU1401030E701 Available to backorder	Bracket Front Hanger Pivot	£23.88 £19.90
15	HAMU17X206 Available to backorder	Washer	£2.88 £2.40
17	HAMU15X79 Available to backorder	Nut Flange	£3.14 £2.62
22	BP26X263MA Available to backorder	Screw	£4.20 £3.50
26	HAMU165X157 Available to backorder	Spring Extension	£11.88 £9.90
30	HAMU1401260E701 Available to backorder	Plate Reinforcement	£10.26 £8.55
