Hayter Heritage H15-40 - 145R (145R001001 - 145R099999) - Rear Chassis Assembly

Hayter Heritage H15-40 - 145R (145R001001 - 145R099999) - Rear Chassis Assembly

Description

Hayter Heritage H15-40 - 145R

Serial No: 145R001001 - 145R099999

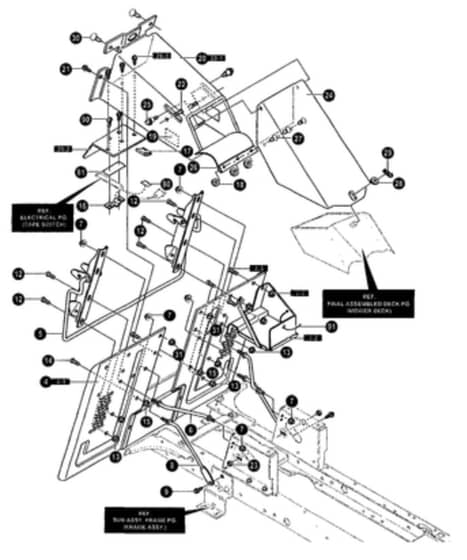

Rear Chassis Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	5		HAMU95359-853 Available to backorder	Weldment-Latch Lever		£58.60 £48.83
	31		HAMU15X79 Available to backorder	Nut . 5/16-18 Hexwdfllk Whiz		£3.04 £2.53
	41		HAMU343678E701 Available to backorder	Assy. Back Plate/Battery		£199.98 £166.65
	43		HAMU180073 Available to backorder	Screw		£5.26 £4.38

Description

Hayter Heritage H15-40 - 145R

Serial No: 145R001001 - 145R099999

Rear Chassis Assembly - Parts Diagram
