Hayter Heritage H15-40 - 145R (145R001001 - 145R099999) - Deck Assembly 02

Name: Hayter Heritage H15-40 - 145R (145R001001 - 145R099999) - Deck Assembly 02
SKU: h15 40 heritage tractor psei1026 deck assembly-group
Price: 2.52 GBP
Availability: InStock

Part No. h15 40 heritage tractor psei1026 deck assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage H15-40 - 145R (145R001001 - 145R099999) - Deck Assembly 02

Description

Hayter Heritage H15-40 - 145R

Serial No: 145R001001 - 145R099999

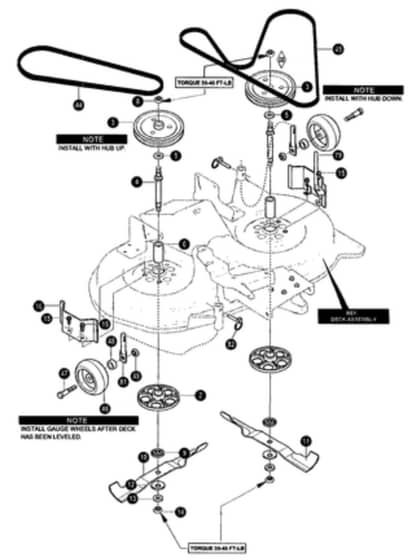

Deck Assembly 02 - Parts Diagram

	Part No.	Details
2	BP1401241MA In stock	Jackshaft Housing	£89.63 £74.69
4	4459 In stock	Jackshaft	£10.44 £8.70
6	BP091903MA Available to backorder	Spacer	£4.92 £4.10
10	HAMU690499E701 Available to backorder	Blade. Lh	£90.00 £75.00
11	HAMU690500E701 Available to backorder	Blade. Rh	£78.96 £65.80
12	BP17X166MA Available to backorder	Washer. Flat	£7.03 £5.86
13	BP17X165MA Available to backorder	Washer. Flat	£6.37 £5.31
15	BP0025X6MA Available to backorder	Screw	£4.20 £3.50
44	BP710231MA Available to backorder	Belt. V	£32.15 £26.79
45	BP1001223MA Available to backorder	Belt. Deck	£83.64 £69.70
46	HAMU92683 Available to backorder	Gauge Wheel	£25.37 £21.14
79	HAMU95280 Available to backorder	Rod. Belt Guide	£3.02 £2.52
81	HAMU95187-853 Available to backorder	Rod. Gage Short	£48.17 £40.14
