Hayter Heritage DC12-30 - 143S (143S001001 - 143S099999) - Mower Housing

Description

Hayter Heritage DC12-30 - 143S

Serial No: 143S001001 - 143S099999

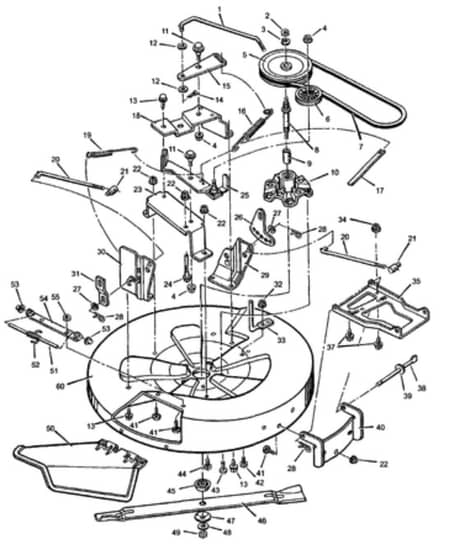

Mower Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	HAMU774090 Available to backorder	Pulley. Splined	£85.18 £70.98
7	BP037X74MA In stock	Belt. Blade	£37.50 £31.25
8	4459 In stock	Jackshaft	£16.79 £13.99
9	BP091903MA Available to backorder	Spacer	£119.99 £99.99
10	BP455962MA Available to backorder	Housing. Mandrel	£76.08 £63.40
11	HAMU9X39 Available to backorder	Bolt. Shoulder	£4.40 £3.67
13	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
14	HAMU30X20 Available to backorder	Pin. Cotter	£5.65 £4.71
22	HAMU15X79 Available to backorder	Nut. Flange	£3.04 £2.53
43	BP26X216MA Available to backorder	Screw	£5.68 £4.73
46	HAMU56246E701 Available to backorder	Blade Standard	£42.24 £35.20
47	BP17X166MA Available to backorder	Washer. Cup	£7.84 £6.53
48	HAMU17X165 Available to backorder	Washer	£6.31 £5.26
49	BP15X100MA Available to backorder	Nut. Blade Mount	£3.78 £3.15
58	BP703141 Available to backorder	Wingnut	£3.76 £3.13
