Hayter Heritage DC12-30 - 143P (143P001001 - 143P099999) - Mower Housing

Description

Hayter Heritage DC12-30 - 143P

Serial No: 143P001001 - 143P099999

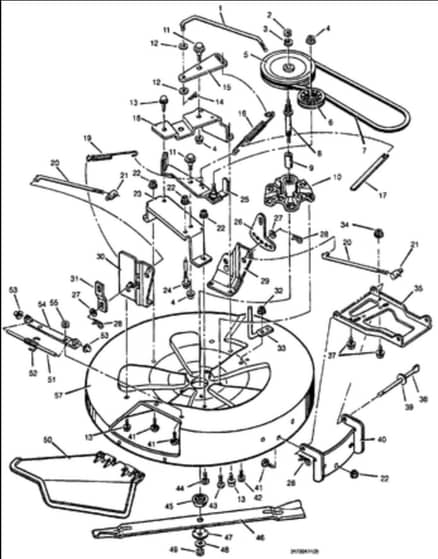

Mower Housing - Parts Diagram

	Part No.	Details
5	HAMU774090 Available to backorder	Pulley. Splined	£89.04 £74.20
7	BP037X74MA Available to backorder	Belt. Blade	£40.90 £34.08
8	4459 In stock	Jackshaft	£10.44 £8.70
9	BP091903MA Available to backorder	Spacer	£4.92 £4.10
10	BP455962MA Available to backorder	Housing. Mandrel	£74.28 £61.90
11	HAMU9X39 In stock	Bolt. Shoulder	£4.86 £4.05
13	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
14	HAMU30X20 Available to backorder	Pin. Cotter	£5.65 £4.71
22	HAMU15X79 Available to backorder	Nut. Flange	£3.14 £2.62
36	BP703141 Available to backorder	Wingnut	£3.62 £3.02
43	BP26X216MA Available to backorder	Screw	£5.88 £4.90
46	HAMU56246E701 In stock	Blade Standard	£44.98 £37.48
47	BP17X166MA Available to backorder	Washer. Cup	£7.03 £5.86

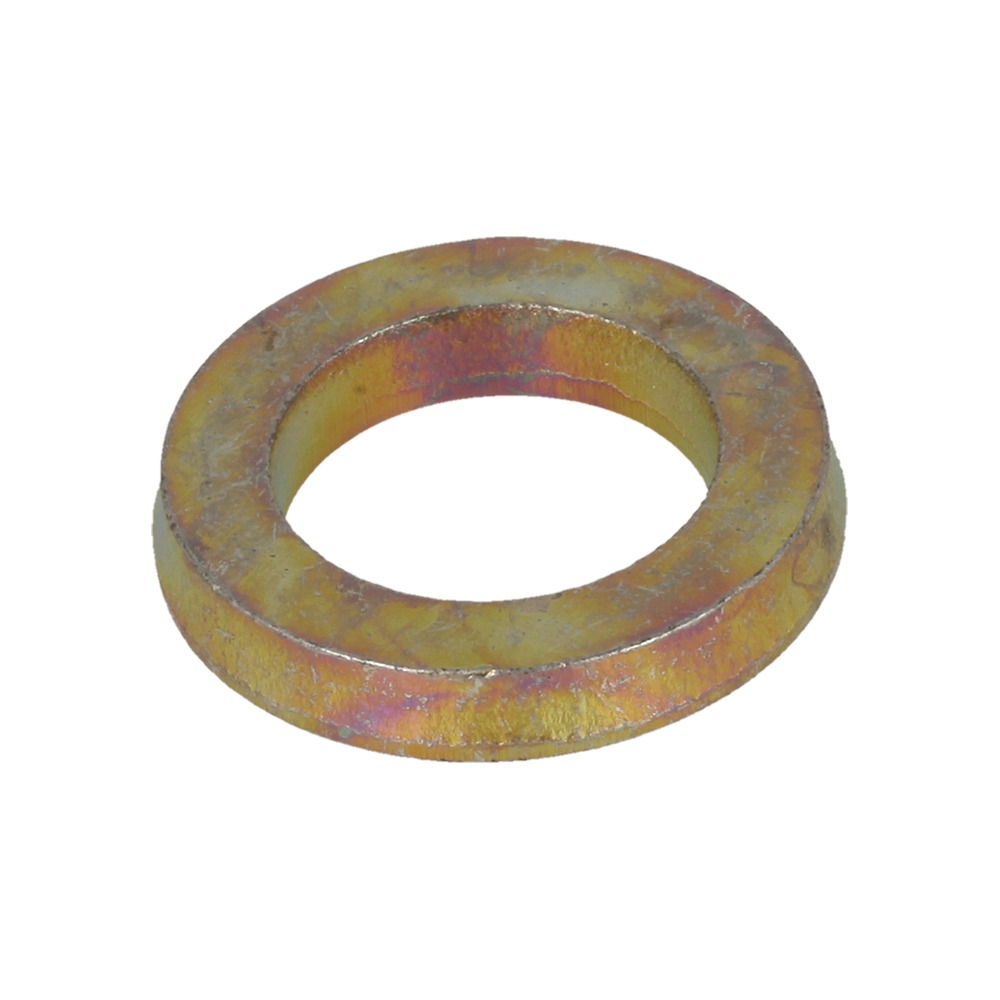

48	BP17X165MA Available to backorder	Washer	£6.37 £5.31
49	BP15X100MA In stock	Nut. Blade Mount	£4.06 £3.38
