Hayter Heritage DC12-30 - 143P (143P001001 - 143P099999) - Motion Drive

Description

Hayter Heritage DC12-30 - 143P

Serial No: 143P001001 - 143P099999

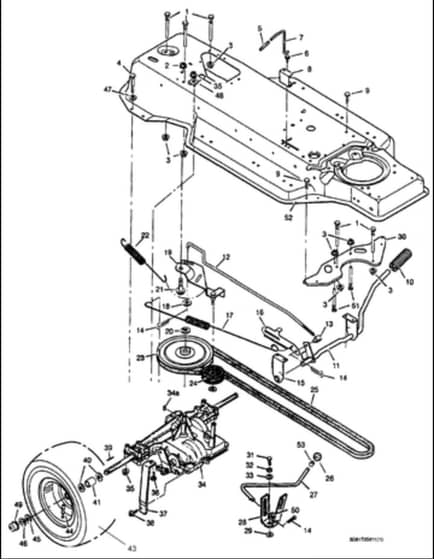

Motion Drive - Parts Diagram

	Part No.	Details
3	HAMU15X79 Available to backorder	Nut. Flange	£3.14 £2.62
6	HAMU26X214 Available to backorder	Screw	£5.44 £4.53
9	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
10	SY1727261SM Available to backorder	Cover. Pedal	£9.71 £8.09
13	BP021920ZMA Available to backorder	Nut. Adjuster	£22.16 £18.47
14	HAMU30X20 Available to backorder	Pin. Cotter	£5.65 £4.71
21	HAMU9X39 In stock	Bolt. Shoulder	£4.86 £4.05
23	HAMU95094 Available to backorder	Pulley. Drive	£54.12 £45.10
24	HAMU421409 Available to backorder	Pulley	£30.12 £25.10
25	BP037X61MA Available to backorder	Belt. Motion Drive	£35.26 £29.38
31	HAMU1X145 Available to backorder	Screw	£5.44 £4.53
34	BP020697MA Available to backorder	Key. Woodruff	£5.51 £4.59
35	HAMU15X88 Available to backorder	Nut	£2.98 £2.48
38	BP26X216MA Available to backorder	Screw	£5.88 £4.90
45	BP17X195MA Available to backorder	Washer	£4.72 £3.93
46	HAMU11X3 Available to backorder	E-Ring	£4.06 £3.38
47	HAMU17X146 Available to backorder	Washer	£4.24 £3.53
48	HAMU17X45 Available to backorder	Washer	£4.03 £3.36
49	BP094618MA In stock	Cap. Hub	£4.44 £3.70
52	HAMU92515E549 Available to backorder	Frame Assembly	£358.56 £298.80
