Hayter Heritage 19-42 - 147R (147R001001 - 147R099999) - Deck Assembly 02

Name: Hayter Heritage 19-42 - 147R (147R001001 - 147R099999) - Deck Assembly 02
SKU: 19 42 heritage tractor psei1138 deck assembly-group
Price: 3.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage 19-42 - 147R (147R001001 - 147R099999) - Deck Assembly 02

Description

Hayter Heritage 19-42 - 147R

Serial No: 147R001001 - 147R099999

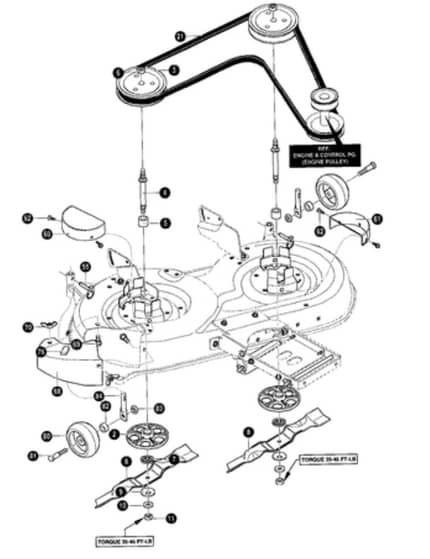

Deck Assembly 02 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BP492574MA Available to backorder	Asm.. Jackshaft Housing 42"	£71.22 £59.35
4	BP094129MA Available to backorder	Mandrel	£23.74 £19.78
6	HAMU15X140 Available to backorder	Nut. 9/16-18 Unf-2B (15x121)	£5.82 £4.85

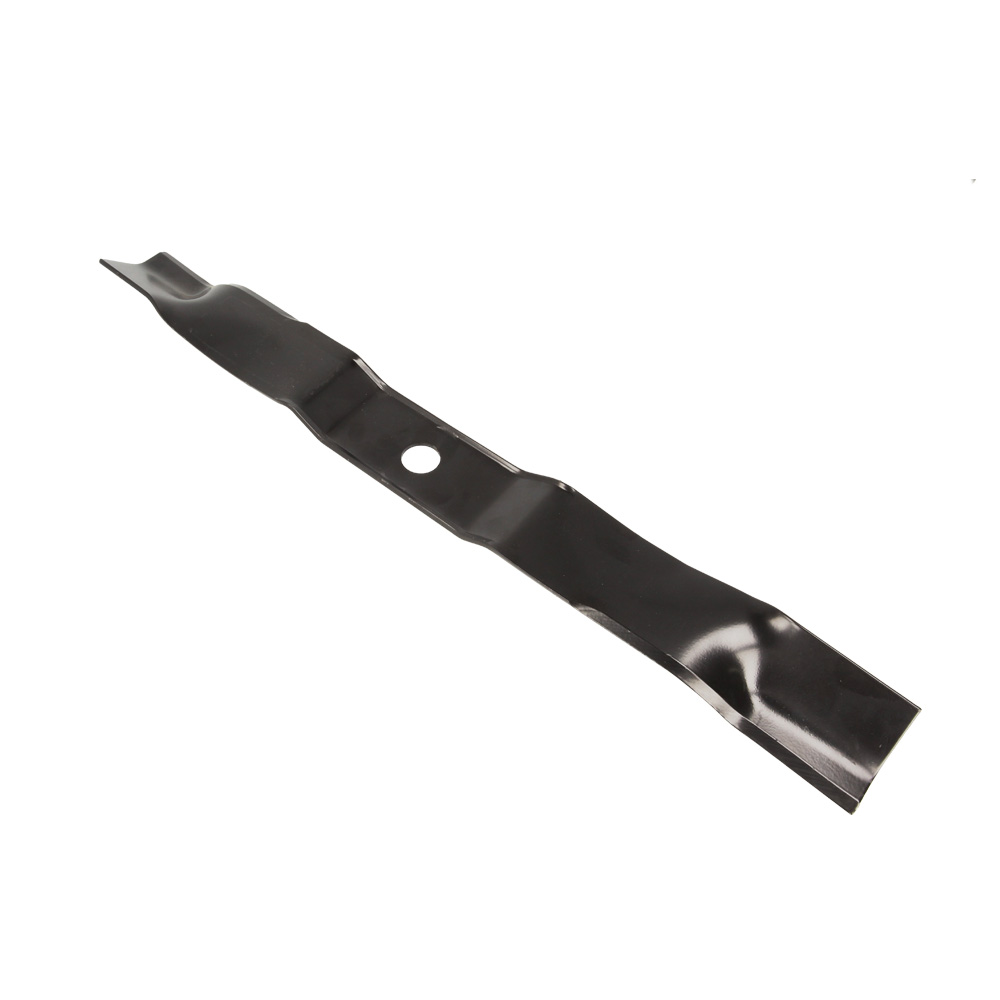

8	BP095100E701MA Available to backorder	42" (3N1) Blade	£23.40 £19.50
9	BP17X166MA Available to backorder	Washer. Flat	£7.84 £6.53

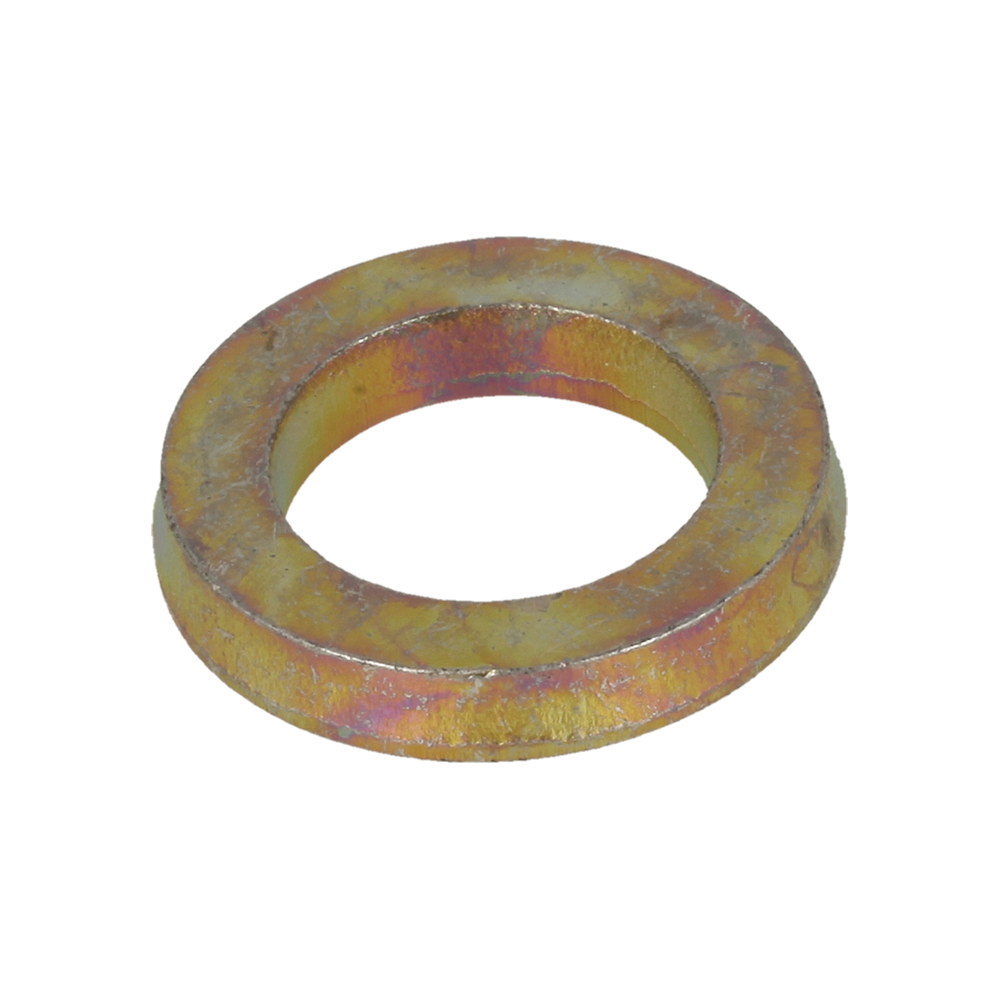

10	BP17X165MA Available to backorder	Washer. Flat	£6.31 £5.26
11	BP15X100MA Available to backorder	Nut	£3.78 £3.15
70	BP703141 Available to backorder	Nut.Wing 5/16-18 Serr	£3.76 £3.13
80	HAMU92683 Available to backorder	Gauge Wheel	£24.52 £20.43
84	HAMU95187-853 Available to backorder	Rod. Gage Short	£48.89 £40.74
