Hayter Heritage 13-30 - 131S (131S001001 - 131S099999) - Motion Drive

Description

Hayter Heritage 13-30 - 131S

Serial No: 131S001001 - 131S099999

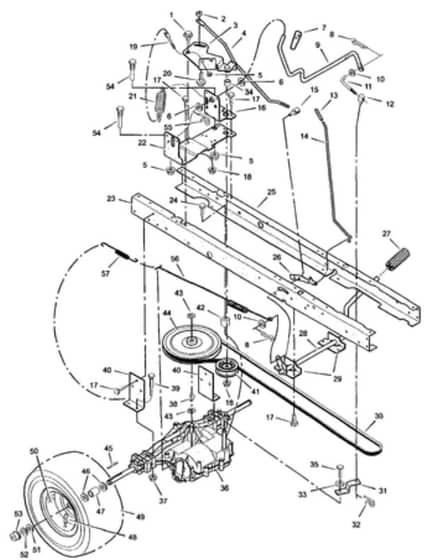

Motion Drive - Parts Diagram

	Part No.	Details
1	HAMU9X39 In stock	Bolt. Shoulder	£4.86 £4.05
5	HAMU15X79 Available to backorder	Nut. Flange	£3.14 £2.62
7	HAMU92697 Available to backorder	Grip. Shift Lever	£5.60 £4.67
8	HAMU30X20 Available to backorder	Pin. Cotter	£5.65 £4.71
12	BP021920ZMA Available to backorder	Nut. Adjuster	£22.16 £18.47
15	HAMU94815Z Available to backorder	Nut. Adjuster	£14.74 £12.28
16	HAMU94034E700 Available to backorder	Bracket. Shift	£14.05 £11.71
17	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
21	HAMU165X116 Available to backorder	Spring. Extension	£8.60 £7.17
22	HAMU690166E700 Available to backorder	Bracket. Shifter	£22.31 £18.59
24	HAMU710002 Available to backorder	Screw	£5.44 £4.53
27	SY1727261SM Available to backorder	Cover. Pedal	£9.71 £8.09
29	HAMU94035E700 Available to backorder	Bracket. Pedal	£11.57 £9.64
30	BP037X87MA In stock	Belt. Motion Drive	£38.77 £32.31
31	HAMU94031Z Available to backorder	Yoke. Shift	£7.22 £6.02
37	HAMU15X88 Available to backorder	Nut	£2.98 £2.48
38	BP020697MA Available to backorder	Key. Woodruff	£5.51 £4.59
41	BP690409MA In stock	Pulley	£17.50 £14.58
44	HAMU95094 Available to backorder	Pulley. Drive	£54.12 £45.10
51	BP17X195MA Available to backorder	Washer	£4.72 £3.93
52	HAMU11X3 Available to backorder	E-Ring	£4.06 £3.38
53	BP094618MA In stock	Cap. Hub	£4.44 £3.70
