Hayter Heritage 13-30 - 131E (131E270000001 - 131E270999999) - Engine Mount

Description

Hayter Heritage 13-30 - 131E

Serial No: 131E270000001 - 131E270999999

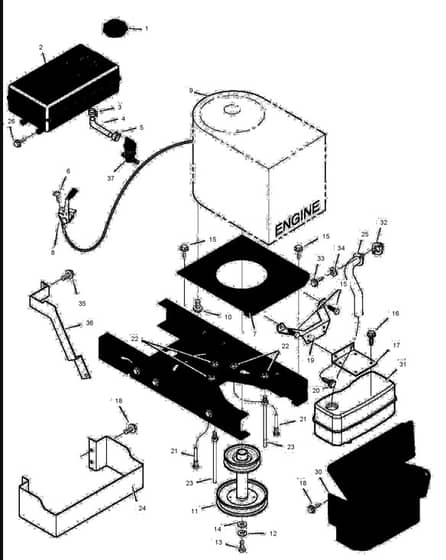

Engine Mount - Parts Diagram

	Part No.	Details
1	BP092317MA Available to backorder	Cap. Fuel Tank	£12.17 £10.14
0	HAMU32618 Available to backorder	Tie Strap	£5.44 £4.53
1	BP0019X8MA Available to backorder	Washer. 3/8-5/8 Star	£3.24 £2.70
2	HAMU7601092 Available to backorder	Fuel Tank	£105.72 £88.10
13	HAMU1X140 In stock	Bolt. Hex	£5.71 £4.76
15	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
18	HAMU26X277 Available to backorder	Screw	£4.64 £3.87
21	HAMU94384 Available to backorder	Guide. Belt	£3.29 £2.74
22	HAMU15X79 Available to backorder	Nut. Flange	£3.14 £2.62
25	BP1001747MA Available to backorder	Exhaust Tube. Single	£43.97 £36.64
32	HA88-4410 In stock	Gasket. Muffler	£5.09 £4.24
35	HAMU6X104 Available to backorder	Bolt. Washer Hex Head	£5.44 £4.53
36	BP1001880E701MA Available to backorder	Guard. Exhaust Pipe	£45.24 £37.70
37	BP698183 In stock	Valve. Fuel Shut-Off	£9.91 £8.26
