Hayter Heritage 13-30 - 131D (131D260000001 - 131D260999999) - Chassis - Hood

Description

Hayter Heritage 13-30 - 131D

Serial No: 131D260000001 - 131D260999999

Chassis - Hood - Parts Diagram

	Part No.	Details
7	HAMU9X56 Available to backorder	Bolt. Shoulder	£2.89 £2.41
8	HAMU94154E701 Available to backorder	Support. Seat	£38.48 £32.07
10	BP1001648E701MA Available to backorder	Bracket . Pivot	£62.16 £51.80
16	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
17	BP26X263MA Available to backorder	Screw	£4.20 £3.50
21	HAMU94829E701 Available to backorder	Plate. Index	£20.80 £17.33
25	HAMU1001538E701 Available to backorder	Hood	£331.75 £276.46
26	BP1001531E701MA Available to backorder	Grille	£124.20 £103.50

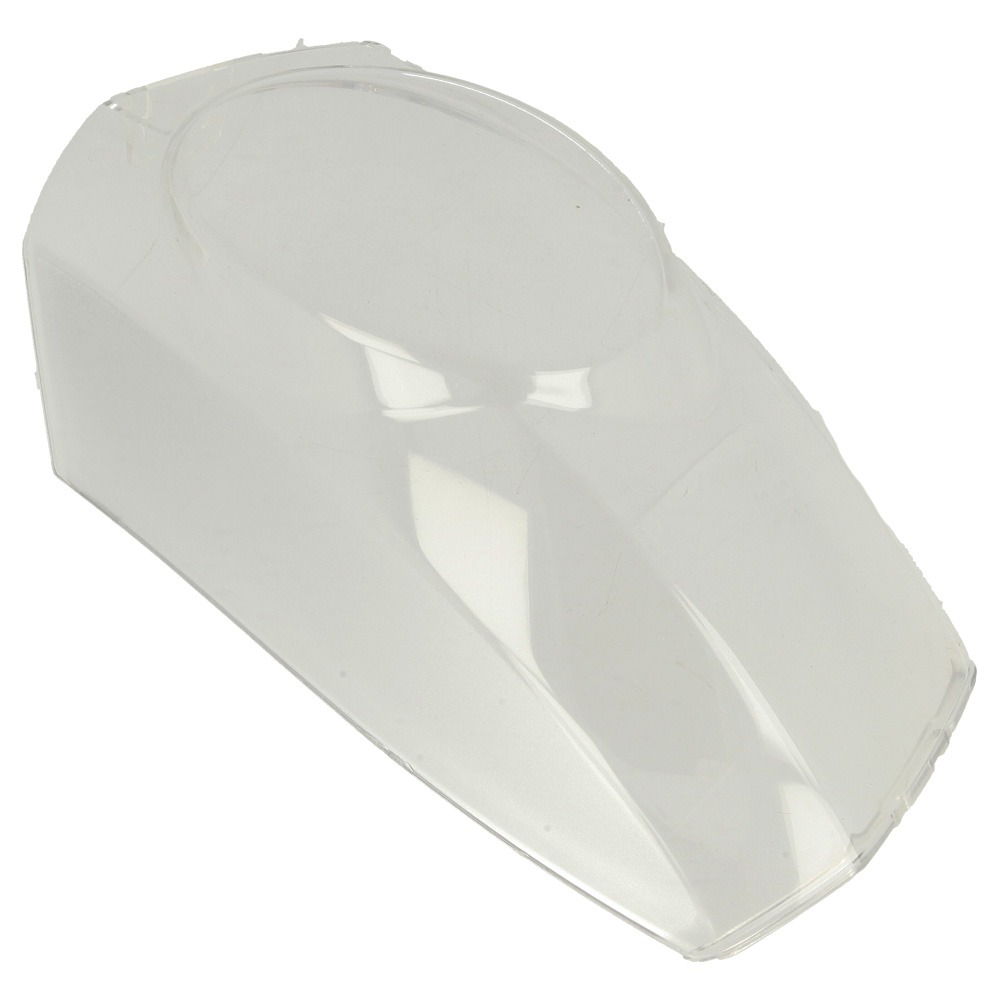

27	BP1001546MA Available to backorder	Lens. Left	£11.96 £9.97
29	HAMU1001545 Available to backorder	Lens. Right	£14.63 £12.19
32	HAMU26X238 Available to backorder	Screw	£5.44 £4.53
40	HAMU94007E701 Available to backorder	Axle. Hanger	£43.09 £35.91
43	HAMU1001928E701 Available to backorder	Frame. Right	£96.60 £80.50
44	HAMU1001927E701 Available to backorder	Frame. Left	£108.12 £90.10
47	HAMU690434E701 Available to backorder	Panel. Rear	£46.22 £38.52
49	HAMU26X277 Available to backorder	Screw	£4.64 £3.87
50	BP015X81MA Available to backorder	Nut	£3.91 £3.26
52	HAMU690482E701 Available to backorder	Support. Battery	£19.99 £16.66
53	HAMU1001540 Available to backorder	Insert. Grille	£35.54 £29.62
59	HAMU1001755 Available to backorder	Grommet. Parking Brake	£5.44 £4.53
73	BP48X4032MA Available to backorder	Warning Decal	£17.09 £14.24
