Hayter Heritage 13-30 - 131B (131B001001 - 131B099999) - Steering

Description

Hayter Heritage 13-30 - 131B

Serial No: 131B001001 - 131B099999

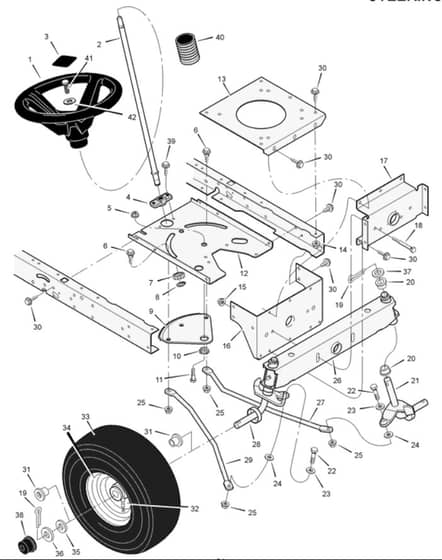

Steering - Parts Diagram

	Part No.	Details
4	BP094124MA Available to backorder	Bearing	£12.11 £10.09
8	BP011X25MA Available to backorder	Ring. Snap	£4.06 £3.38
14	HAMU15X88 Available to backorder	Nut	£2.98 £2.48
15	HAMU15X118 Available to backorder	Nut. Flange	£2.89 £2.41
17	HAMU94007E701 Available to backorder	Axle. Hanger	£43.09 £35.91
20	BP690150MA Available to backorder	Bearing	£7.01 £5.84
22	HAMU1X111 Available to backorder	Bolt. Hex	£3.00 £2.50
24	HAMU17X53 Available to backorder	Washer	£2.35 £1.96
26	HAMU7601037 Available to backorder	Axle Assembly	£363.72 £303.10
30	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
31	BP091334MA In stock	Bearing. Wheel	£6.40 £5.33
35	BP17X195MA Available to backorder	Washer	£4.72 £3.93
38	BP094618MA In stock	Cap. Hub	£4.44 £3.70
39	HAMU26X267 Available to backorder	Screw	£3.86 £3.22
42	HAMU17X146 Available to backorder	Washer	£4.24 £3.53
