Hayter Heritage 10-30 - 133T (133T001001 - 133T099999) - Mower Housing

Description

Hayter Heritage 10-30 - 133T

Serial No: 133T001001 - 133T099999

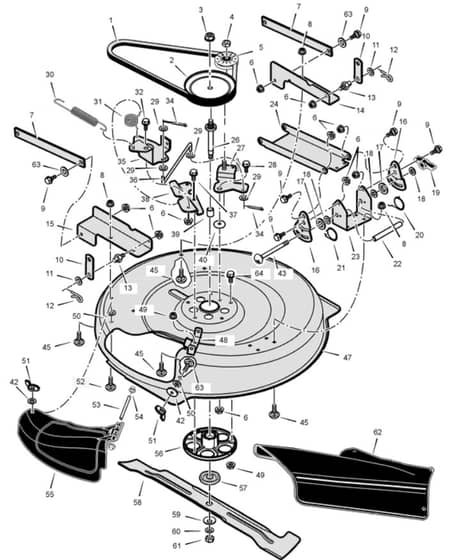

Mower Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BP37X111MA Available to backorder	Belt. Blade Drive	£25.98 £21.65
3	HAMU15X140 Available to backorder	Locknut	£5.82 £4.85
5	BP690410MA Available to backorder	Pulley. Idler	£13.90 £11.58
8	HAMU15X79 Available to backorder	Nut. Flange	£3.04 £2.53
14	HAMU1401047E701 Available to backorder	Bracket. Left Rear	£22.30 £18.58
15	HAMU1401048-853 Available to backorder	Bracket. Right Rear	£21.80 £18.17
16	HAMU1401038E701 Available to backorder	Plate. Adjustment	£32.12 £26.77
17	HAMU94137 Available to backorder	Pad. Friction	£4.88 £4.07
18	HAMU17X45 Available to backorder	Washer	£3.88 £3.23
19	BP095004MA Available to backorder	Wingnut	£13.72 £11.43
20	BP166X43MA Available to backorder	Spring. Left Torsion	£5.46 £4.55
24	HAMU1401040E701 Available to backorder	Hanger. Front	£60.70 £50.58
26	BP1401065MA Available to backorder	Shaft. Splined	£18.46 £15.38
28	HAMU9X39 Available to backorder	Bolt. Shoulder	£4.40 £3.67
31	BP166X46MA Available to backorder	Spring. Torsion	£5.30 £4.42
34	HAMU30X20 Available to backorder	Pin. Cotter	£5.65 £4.71
38	HAMU1401052E701 Available to backorder	Bracket. Brake Mounting	£13.19 £10.99
39	HAMU1401094 Available to backorder	Spacer. Jackshaft	£5.26 £4.38
42	HAMU19X45 Available to backorder	Washer	£4.07 £3.39
48	HAMU1401106E701 Available to backorder	Hinge. Mulching Cover	£10.90 £9.08
49	HAMU15X88 Available to backorder	Nut	£3.24 £2.70
51	BP703141 Available to backorder	Wingnut	£3.76 £3.13
55	BP1401080MA Available to backorder	Cover. Mulch	£68.45 £57.04
56	BP1401241MA In stock	Jackshaft Housing	£86.64 £72.20
58	BP1401079E701MA Available to backorder	Blade	£64.20 £53.50
59	BP17X166MA Available to backorder	Washer. Cup	£7.84 £6.53
60	HAMU17X165 Available to backorder	Washer	£6.31 £5.26
61	BP15X100MA Available to backorder	Nut. Blade Mount	£3.78 £3.15
62	HAMU1401081 Available to backorder	Deflector. Chute	£102.17 £85.14
63	HAMU2X74 Available to backorder	Bolt. Carriage	£4.07 £3.39
