Hayter Heritage 10-30 - 133T (133T001001 - 133T099999) - Electrical System

Name: Hayter Heritage 10-30 - 133T (133T001001 - 133T099999) - Electrical System
SKU: 10 30 heritage tractor psei1594 electrical system-group
Price: 4.29 GBP
Availability: InStock

Part No. 10 30 heritage tractor psei1594 electrical system-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage 10-30 - 133T (133T001001 - 133T099999) - Electrical System

Description

Hayter Heritage 10-30 - 133T

Serial No: 133T001001 - 133T099999

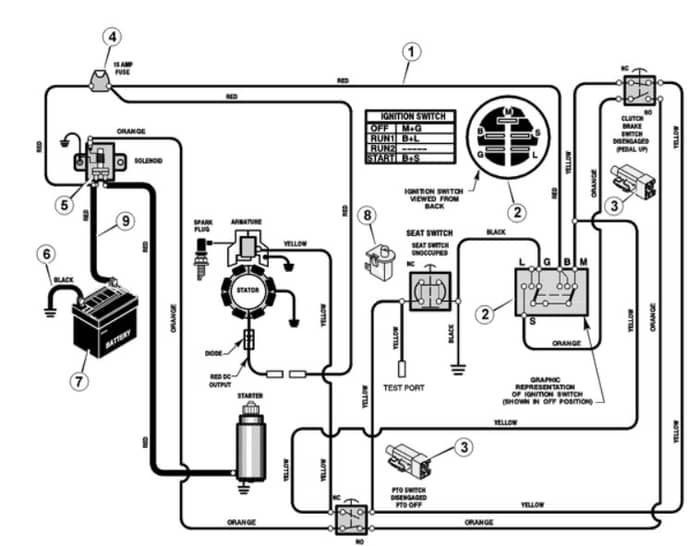

Electrical System - Parts Diagram

	Part No.	Details
0	HAMU26X214 Available to backorder	Screw	£5.44 £4.53
0	BP327349MA Available to backorder	Key. Ignition	£5.15 £4.29
2	BP1401149MA Available to backorder	Switch. Ignition	£27.17 £22.64
5	BP7701100MA Available to backorder	Solenoid	£35.28 £29.40
6	BP24X37MA Available to backorder	Cable. Battery Ground	£15.20 £12.67
7	5531 In stock	Battery	£46.92 £39.10
8	HAMU94159 Available to backorder	Switch. Seat Sensor	£10.88 £9.07
