Hayter Heritage 10-30 - 133E (133E270000001 - 133E290999999) - Steering

Name: Hayter Heritage 10-30 - 133E (133E270000001 - 133E290999999) - Steering
SKU: 10 30 heritage tractor 133e steering-group
Price: 2.13 GBP
Availability: InStock

Part No. 10 30 heritage tractor 133e steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Heritage 10-30 - 133E (133E270000001 - 133E290999999) - Steering

Description

Hayter Heritage 10-30 - 133E

Serial No: 133E270000001 - 133E290999999

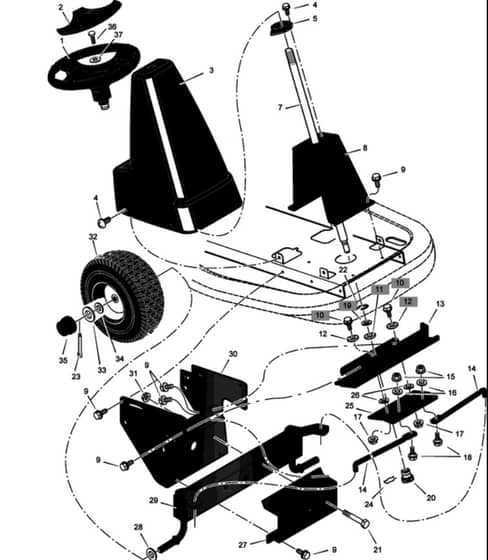

Steering - Parts Diagram

	Part No.	Details
2	HAMU1001982 Available to backorder	Cap. Steering	£16.75 £13.96
3	HAMU1401067 Available to backorder	Console. High - Black	£187.32 £156.10
4	HAMU26X250 Available to backorder	Screw	£3.72 £3.10
5	HAMU1401090 Available to backorder	Bearing. Upper Steering	£4.78 £3.98
8	HAMU1401055E701 Available to backorder	Support. Steering	£45.00 £37.50
9	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
10	HAMU9X67 Available to backorder	Bolt. Shoulder	£5.44 £4.53
13	HAMU1401058E701 Available to backorder	Plate. Gear Mounting	£32.26 £26.88
14	HAMU1401123E701 Available to backorder	Ling. Drag	£12.26 £10.22
17	HAMU15X88 Available to backorder	Nut	£2.98 £2.48
18	HAMU1X111 Available to backorder	Bolt. Hex	£3.00 £2.50
19	HAMU17X118Z Available to backorder	Washer	£2.74 £2.28
20	HAMU1401099 Available to backorder	Gear. Pinion	£12.20 £10.17
24	HAMU94131 Available to backorder	Retainer. R Clip	£5.23 £4.36
25	HAMU1401046E701 Available to backorder	Rack. Steering	£48.89 £40.74
29	HAMU1401250E701 Available to backorder	Axle & Spindle Assembly	£336.00 £280.00
31	HAMU15X118 Available to backorder	Nut. Flange	£2.89 £2.41
32	HAMU1401381601 Available to backorder	Wheel. Front	£113.28 £94.40
33	HAMU17X197 Available to backorder	Washer	£4.49 £3.74
35	BP094618MA In stock	Cap. Hub	£4.44 £3.70
37	HAMU17X146 Available to backorder	Washer	£4.24 £3.53
