Hayter Heritage 10-30 - 133E (133E270000001 - 133E290999999) - Motion Drive

Description

Hayter Heritage 10-30 - 133E

Serial No: 133E270000001 - 133E290999999

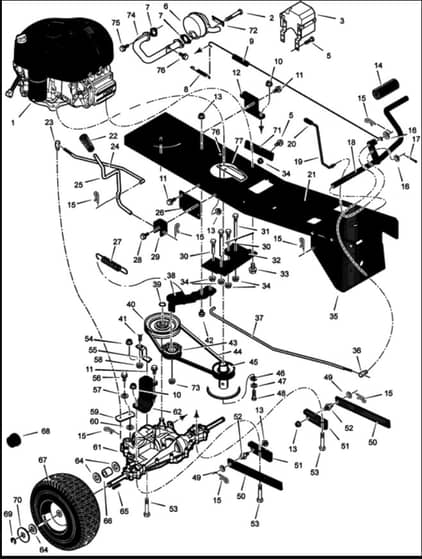

Motion Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BP01X134MA In stock	Bolt. Hex	£11.62 £9.68
6	HAMU1401358 Available to backorder	Muffler	£46.36 £38.63
7	HA88-4410 In stock	Gasket. Muffer	£4.74 £3.95
11	HAMU26X249 Available to backorder	Screw	£2.56 £2.13
12	HAMU1401268E701 Available to backorder	Bracket. Left Transaxle	£45.26 £37.72
14	SY1727261SM Available to backorder	Cover. Pedal	£9.72 £8.10
16	HAMU17X53 Available to backorder	Washer	£2.35 £1.96
17	HAMU30X20 Available to backorder	Pin. Cotter	£5.65 £4.71
21	HAMU1401371E701 Available to backorder	Frame	£191.70 £159.75
22	HAMU92697 Available to backorder	Grip. Shift Lever	£5.60 £4.67
23	HAMU1401148Z Available to backorder	Nut. Adjusting	£8.50 £7.08
26	HAMU1401032E701 Available to backorder	Bracket. Lift Pivot	£18.24 £15.20
29	HAMU1401043E701 Available to backorder	Bracket. Pivot	£12.16 £10.13
30	HAMU1401104 Available to backorder	Guide. Belt - Short	£2.76 £2.30
32	HAMU1401057E701 Available to backorder	Plate. Belt Guide	£19.72 £16.43
34	HAMU15X79 Available to backorder	Nut. Flange	£3.04 £2.53
36	HAMU94815Z Available to backorder	Nut. Adjuster	£14.74 £12.28
40	BP1401077MA In stock	Pulley. Drive	£135.36 £112.80
42	HAMU9X39 Available to backorder	Bolt. Shoulder	£4.40 £3.67
44	BP37X110MA In stock	Belt. Motion Drive	£31.18 £25.98
48	HAMU1X140 Available to backorder	Bolt. Hex	£5.18 £4.32
51	HAMU1401039E701 Available to backorder	Bracket. Rear Hanger	£16.72 £13.93
54	HAMU15X88 Available to backorder	Nut	£3.24 £2.70
55	HAMU1401051E701 Available to backorder	Bracket. Torque Reactor	£2.78 £2.32
59	HAMU1401351Z Available to backorder	Yoke. Shift	£5.26 £4.38
62	HAMU1401042E701 Available to backorder	Bracket. Transaxle	£37.78 £31.48
65	BP056534MA Available to backorder	Key. Square	£4.72 £3.93
68	BP094618MA In stock	Cap. Hub	£4.14 £3.45
69	HAMU11X3 Available to backorder	E-Ring	£4.02 £3.35
70	BP17X195MA Available to backorder	Washer	£4.56 £3.80
71	HAMU1401260E701 Available to backorder	Plate. Reinforcement	£9.92 £8.27
76	BP26X263MA Available to backorder	Screw	£4.16 £3.47
77	HAMU1401396 Available to backorder	Shield. Heat	£15.58 £12.98
