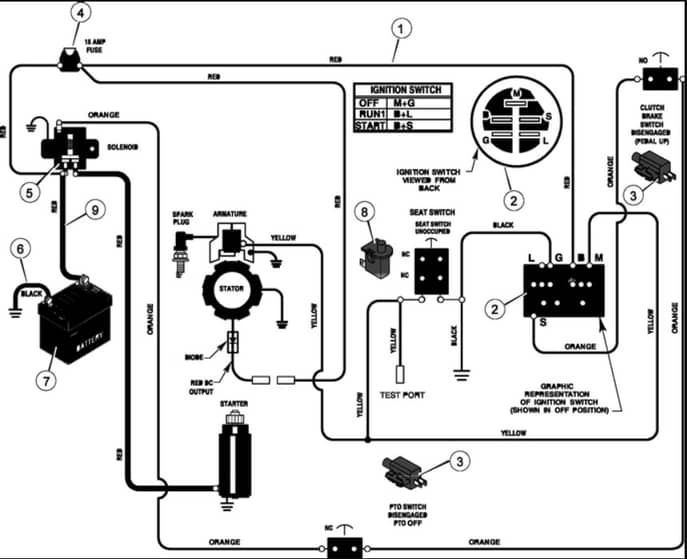

Hayter Heritage 10-30 - 133E (133E270000001 - 133E290999999) - Electrical System

Hayter Heritage 10-30 - 133E (133E270000001 - 133E290999999) - Electrical System

Description

Hayter Heritage 10-30 - 133E

Serial No: 133E270000001 - 133E290999999

Electrical System - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	-1		HAMU32618 Out of stock	Tie Strap		£5.71 £4.76
	2		BP327349MA Out of stock	Key. Ignition		£4.92 £4.10
	2		BP1401149MA Out of stock	Switch. Ignition		£28.24 £23.53
	3		BP1001575MA Out of stock	Switch. Limit		£9.94 £8.28
	5		BP7701100MA Out of stock	Solenoid		£33.12 £27.60
	6		BP24X37MA Out of stock	Cable. Battery Ground		£14.77 £12.31
	7		HAMU21075 Out of stock	Battery		£96.96 £80.80
	8		HAMU94159 Out of stock	Switch. Seat Sensor		£10.48 £8.73

Description

Hayter Heritage 10-30 - 133E

Serial No: 133E270000001 - 133E290999999

Electrical System - Parts Diagram
