Hayter Heritage 10-30 - 133D (133D260000001 - 133D260999999) - Electrical System

Description

Hayter Heritage 10-30 - 133D

Serial No: 133D260000001 - 133D260999999

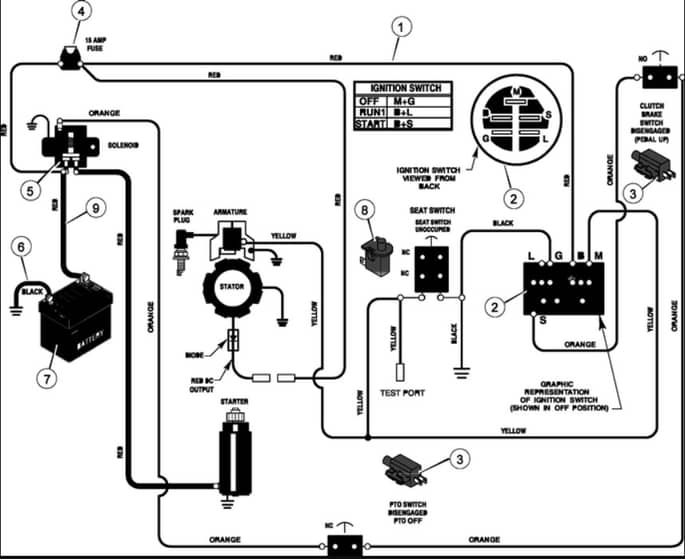

Electrical System - Parts Diagram

	Part No.	Details
2	BP327349MA Available to backorder	Key. Ignition	£5.15 £4.29
2	BP1401149MA Available to backorder	Switch. Ignition	£27.17 £22.64
3	BP1001575MA Available to backorder	Switch. Limit	£10.22 £8.52
5	BP7701100MA Available to backorder	Solenoid	£35.28 £29.40
6	BP24X37MA Available to backorder	Cable. Battery Ground	£15.20 £12.67
7	5531 In stock	Battery	£46.92 £39.10
8	HAMU94159 Available to backorder	Switch. Seat Sensor	£10.88 £9.07
