Hayter Hayterette Professional - 284R (284R001001 - 284R099999) - Upper Mainframe Diagram

Description

Hayter Hayterette Professional - 284R

Serial No: 284R001001 - 284R099999

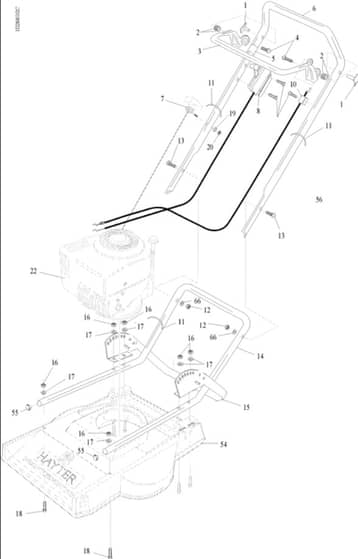

Upper Mainframe Diagram - Parts Diagram

	Part No.	Details
1	HA340182 In stock	Pin-Pivot	£1.84 £1.53
3	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
4	HA09687 In stock	Screw	£1.84 £1.53
6	HA305145W In stock	Handlebar - Upper	£70.64 £58.87
12	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
13	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
15	HA005139W Available to backorder	Footguard	£117.72 £98.10
16	HA09442 Available to backorder	Nut	£1.63 £1.36
17	HA09475 Available to backorder	Washer	£1.76 £1.47
18	HA09681 Available to backorder	Bolt	£1.63 £1.36
19	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
20	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
54	HA005140V Available to backorder	Deck	£373.76 £311.47
