Hayter Hayterette Professional - 284 (284-270860 - 284-999999) - Mainframe Assembly

Name: Hayter Hayterette Professional - 284 (284-270860 - 284-999999) - Mainframe Assembly
SKU: hayterette professional psei1155 mainframe assembly-group
Price: 1.21 GBP
Availability: InStock

Part No. hayterette professional psei1155 mainframe assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Hayterette Professional - 284 (284-270860 - 284-999999) - Mainframe Assembly

Description

Hayter Hayterette Professional - 284

Serial No: 284-270860 - 284-999999

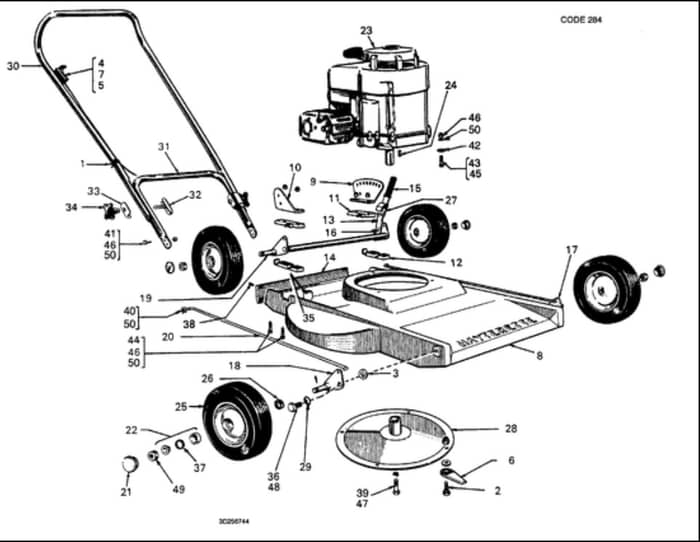

Mainframe Assembly - Parts Diagram

	Part No.	Details
6	HA2779 In stock	Cutterblade "C" Type (Set Of 4)	£21.88 £18.23
10	HA3618 Available to backorder	Bracket Handlebar O/S	£36.34 £30.28
14	HAHY3623 Available to backorder	Rear Flap Sub Assy	£39.85 £33.21
15	HAHY4097 Available to backorder	Handle Grip	£13.66 £11.38
22	HA4933 Available to backorder	Cone Cup And Race	£9.19 £7.66
24	HA04522 Available to backorder	Key-Square	£2.14 £1.78
27	HAHY4884 Available to backorder	Spring Handle Retaining Clip	£8.48 £7.07
29	HAHY4912 Available to backorder	Washer	£1.74 £1.45
34	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
39	HA09273 In stock	Washer-Spring	£1.84 £1.53
40	HA09303 Available to backorder	1/2"x3/32" Split Pin	£1.74 £1.45
42	HA09267 Available to backorder	Washer-Plain	£1.76 £1.47
43	HA09345 Available to backorder	5/16" Unf x 1 1/2" Bolt	£1.55 £1.29
45	HA09083 Available to backorder	Bolt Unf 5/16x1.5/8 Full Dg Pt	£6.70 £5.58
47	HA09114 Available to backorder	3/8" Unf x 1" Setscrew	£1.74 £1.45
48	HA09216 Available to backorder	Nut-Hex. Ni	£1.74 £1.45
49	HAHY4486 In stock	Nut Unf 1/2"Nyloc Ext Thin5/16	£1.81 £1.51
50	HA09266 Available to backorder	Washer-Plain	£1.45 £1.21
