Hayter Hayterette - 005J (402268585 - 999999999) - Handlebar - Controls

Description

Hayter Hayterette - 005J

Serial No: 402268585 - 999999999

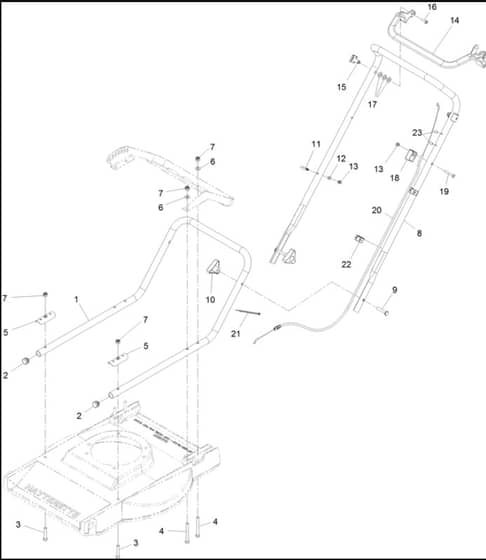

Handlebar - Controls - Parts Diagram

	Part No.	Details
3	HA09654 Available to backorder	Bolt	£1.63 £1.36
4	HAZBH1H075U Available to backorder	Bolt	£2.44 £2.03
5	HA340028 In stock	Plate-Clamp. Handlebar	£7.20 £6.00
6	HA09475 Available to backorder	Washer	£1.76 £1.47
7	HA09442 Available to backorder	Nut	£1.63 £1.36
9	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
10	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
12	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
13	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
14	HA111-9662 In stock	Opc Lever - Engine	£20.12 £16.77
15	HA340182 In stock	Pin-Pivot	£1.84 £1.53
16	HA09687 In stock	Screw	£1.84 £1.53
18	HA411035 In stock	Cable Holder	£2.23 £1.86
19	HAZBH1F040U Available to backorder	Screw-HH	£2.23 £1.86
20	HA111-1094 In stock	Cable Engine Brake - Ad	£12.82 £10.68
21	HAHY3966 Available to backorder	Tie-Cable	£1.66 £1.38
22	HA410037 In stock	Guide-Cable	£1.66 £1.38
