Hayter Hayterette - 005D (005D260000001 - 005D260999999) - Main Assembly

Description

Hayter Hayterette - 005D

Serial No: 005D260000001 - 005D260999999

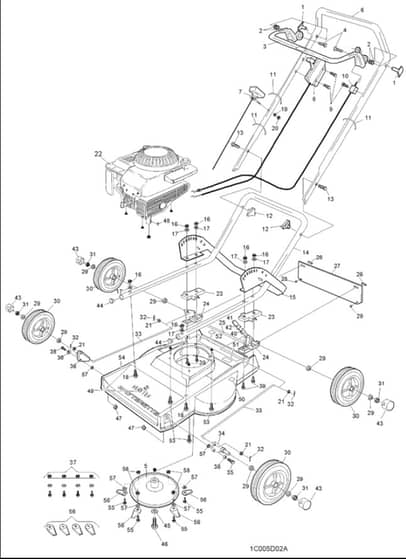

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
4	HA09687 In stock	Screw	£1.68 £1.40
5	HAHY2811 Available to backorder	Bottom Plate	£121.68 £101.40
6	HA305145W In stock	Handlebar - Upper	£66.32 £55.27
8	HA200146V Available to backorder	Throttle Control & Cable	£567.60 £473.00
12	HA226013 In stock	Triangular Handwheel	£6.98 £5.82
13	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
15	HA005139W Available to backorder	Footguard	£117.72 £98.10
16	HA09442 Available to backorder	Nut	£1.58 £1.32
17	HA09475 Available to backorder	Washer	£1.58 £1.32
18	HA09654 Available to backorder	Bolt	£1.58 £1.32
19	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
20	HA09438 Available to backorder	Nut-Nyloc	£1.66 £1.38
21	HA09266 Available to backorder	Washer-Plain	£1.40 £1.17
24	HA005145 Available to backorder	Bearing Block - Lower	£19.82 £16.52
26	HA254013 In stock	Spring Pin	£1.60 £1.33
1	HA340182 In stock	Pin-Pivot	£1.66 £1.38
27	HA005097 In stock	Rear Flap	£22.08 £18.40
29	HA104-8699 Available to backorder	Bearing 1/2" Ball Assy	£5.26 £4.38
30	HA111-1479 Available to backorder	Wheel	£21.00 £17.50
31	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.62 £1.35
32	HA09303 Available to backorder	1/2"x3/32" Split Pin	£1.68 £1.40
33	HA005135 Available to backorder	Connecting Rod	£18.42 £15.35
34	HA005116 Available to backorder	Axle - Front W/A L/H	£41.88 £34.90
35	HA005129 Available to backorder	Bolt - Axle Pivot	£12.50 £10.42
36	HAHY4912 In stock	washer	£1.64 £1.37
38	HA005115 Available to backorder	Axle - Front W/A R/H	£36.88 £30.73
39	HAZBH1H075U Available to backorder	Bolt - M8 x 75	£2.22 £1.85
40	HAHY4884 Available to backorder	Spring Handle Retaining Clip	£8.20 £6.83
41	HAHY4097 Available to backorder	Handle Grip	£13.20 £11.00
42	HA09320 Available to backorder	Rivet	£1.58 £1.32
43	HA219143 Available to backorder	Hub Cap	£7.02 £5.85
45	HA09273 In stock	Washer-Spring	£1.66 £1.38
46	HA09114 Available to backorder	3/8" Unf x 1" Setscrew	£1.68 £1.40
48	HA1662 In stock	Key-Woodruff	£1.50 £1.25
49	HA410087 In stock	Decal	£5.66 £4.72
50	HA320006 In stock	Decal-Hoc	£1.66 £1.38
51	HA111-0083 Available to backorder	Decal - Caution	£2.36 £1.97
54	HA005140V Available to backorder	Deck	£373.76 £311.47
56	HA2779 In stock	Cutterblade "C" Type (Set Of 4)	£20.42 £17.02
58	HA09216 Available to backorder	3/8" Unf Nyl Ins "P" Type Nut	£1.68 £1.40
