Hayter Hawk 12" - 056 (056-006196 - 056-007003) - Mainframe Assembly

Name: Hayter Hawk 12" - 056 (056-006196 - 056-007003) - Mainframe Assembly
SKU: hawk 12 psei742 mainframe assembly-group
Price: 1.13 GBP
Availability: InStock

Part No. hawk 12 psei742 mainframe assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Hawk 12" - 056 (056-006196 - 056-007003) - Mainframe Assembly

Description

Hayter Hawk 12" - 056

Serial No: 056-006196 - 056-007003

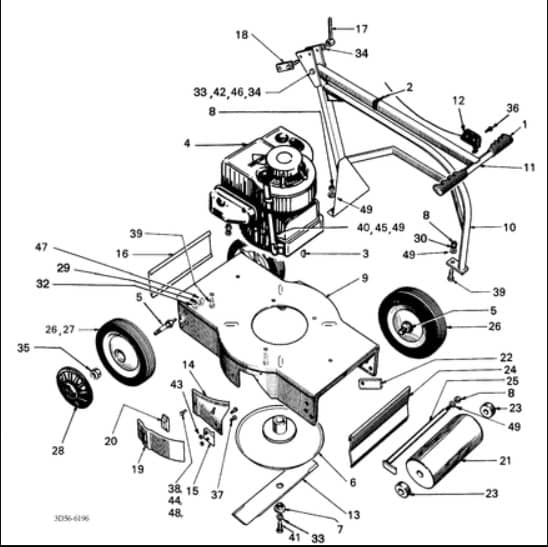

Mainframe Assembly - Parts Diagram

	Part No.	Details
1	HA358 Available to backorder	Handlegrip 3/4" Pvc Green	£2.80 £2.33
3	HA1662 In stock	Key-Woodruff	£1.66 £1.38
6	HA397042W In stock	Friction Disc W/A	£60.34 £50.28
8	HA09207 Available to backorder	Nut	£1.63 £1.36
26	HA111-1250 In stock	Wheel-Ribbed	£35.56 £29.63
27	HA104-8699 In stock	Bearing 1/2" Ball Assy	£5.77 £4.81
28	HA219143 Available to backorder	Cap Hub	£7.26 £6.05
29	HAZWO4G000U Available to backorder	Washer 7/16 Sc Spring	£1.63 £1.36
30	HA03469 Available to backorder	Washer-Spring	£1.63 £1.36
33	HA09273 In stock	Washer-Spring	£1.84 £1.53
34	HA09271 Available to backorder	Washer-Plain	£1.63 £1.36
35	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.81 £1.51
38	HA09036 Available to backorder	Setscrew Unf 1/4 x 1/2 S Qual	£1.40 £1.17
41	HA09116 In stock	Screw Hex Hd 3/8 Unf x11/4	£1.69 £1.41
42	HA09119 Available to backorder	Bolt	£1.81 £1.51
46	HA09216 Available to backorder	3/8" Unf Nyl Ins "P" Type Nut	£1.74 £1.45
47	HAHY09220 Available to backorder	Nut Unf 7/16"	£1.36 £1.13
48	HA09261 Available to backorder	Washer-Plain	£1.63 £1.36
49	HA09266 Available to backorder	Washer-Plain	£1.45 £1.21
