Hayter Harrier Harrier 56 - 579C (418000000 - 419999999) HANDLEBAR AND CONTROLS

Name: Hayter Harrier Harrier 56 - 579C (418000000 - 419999999) HANDLEBAR AND CONTROLS
SKU: harrier_harrier_56_579c_418419999999_handlebarcontrols-group
Price: 0.4 GBP
Availability: InStock

Part No. harrier_harrier_56_579c_418419999999_handlebarcontrols-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier Harrier 56 - 579C (418000000 - 419999999) HANDLEBAR AND CONTROLS

Description

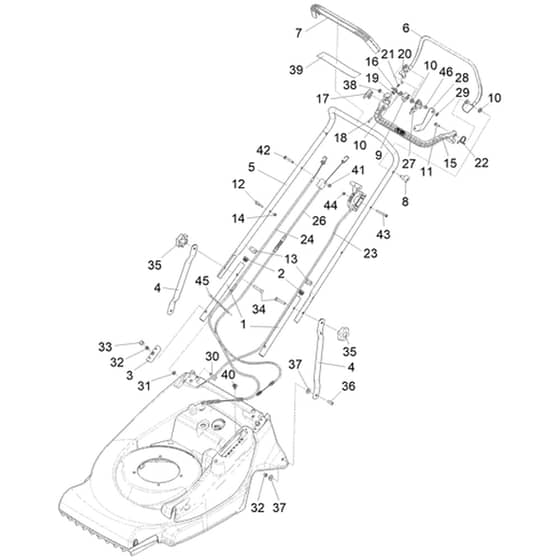

Hayter Harrier Harrier 56 - 579C (418000000 - 419999999) HANDLEBAR AND CONTROLS Parts Diagram

	Part No.	Details
1	HA111-9837-03 In stock	Handlebar Lower	£3.14 £2.62
2	HA300160 Available to backorder	Plug-Tube	£1.76 £1.47
3	HA340028 In stock	Plate-Clamp. Handlebar	£7.20 £6.00
4	HA134-2241-03 Available to backorder	Brace Handlebar	£7.00 £5.83
5	HA134-3571-03 In stock	Upper Handlebar	£36.41 £30.34
6	HA134-2614-03 Available to backorder	Clutch Lever	£15.04 £12.53
7	HA111-8716 In stock	Handle. Soft Grip	£13.12 £10.93
8	HA340182 In stock	Pin-Pivot	£1.84 £1.53
9	HA111-8990 Available to backorder	Clamp-Bar	£0.74 £0.62
10	HA09688 In stock	Washer-Nylon	£0.78 £0.65
11	HA09687 In stock	Screw	£1.84 £1.53
12	HA134-3569 Available to backorder	Rope Guide	£3.89 £3.24
13	HA410037 In stock	Guide-Cable	£1.66 £1.38
14	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
15	HA134-2608 In stock	Arm-Bail	£20.18 £16.82
16	HA111-8903 Available to backorder	Lever-Catch	£2.40 £2.00
17	HA134-2609 In stock	Bbc Latch Button	£0.84 £0.70
18	HA111-8908 Available to backorder	Latch-Pin	£1.97 £1.64
19	HA111-8906 Available to backorder	Lever-Bail. Spring	£0.83 £0.69
20	HA111-0718 Available to backorder	Fastener-Starlock. Push-On	£1.61 £1.34
21	HA134-2027 Available to backorder	Clip-Tree	£0.65 £0.54
22	HA134-2284 In stock	Lever-Bail Arm. Spring	£4.96 £4.13
23	HA134-2246 Available to backorder	Control Throttle (B&S)	£24.56 £20.47
24	HA134-6954 Available to backorder	Cable. Bbc [48.56 Pro]	£31.91 £26.59

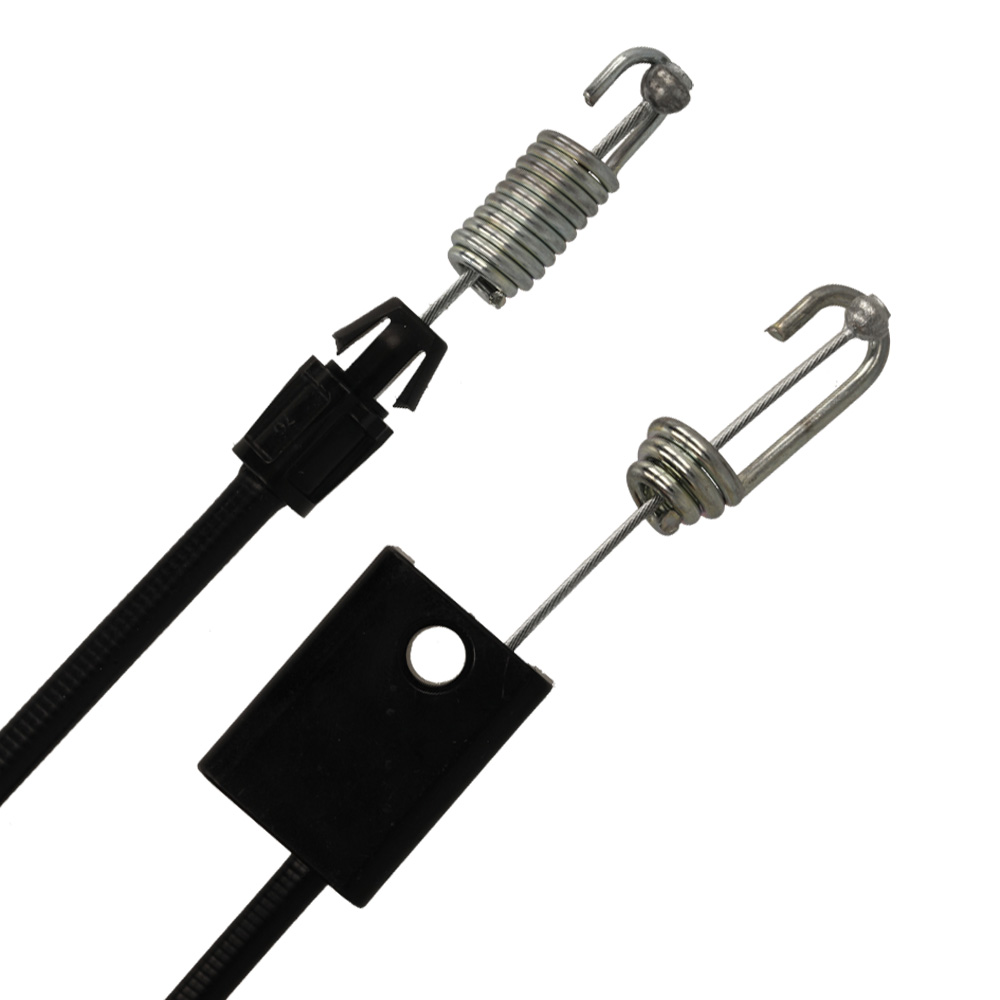

26	HA162-0693 Available to backorder	Clutch-Cable. 3 Speed [Harrier]	£49.31 £41.09
27	HA134-2660 Available to backorder	Anchor Plate Welded	£15.13 £12.61
28	HA134-2662 Available to backorder	Bbc Linkage Assembly	£9.06 £7.55
29	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
30	HA09379 Available to backorder	Bolt-Coach	£1.76 £1.47
31	HA04020 In stock	Grip-Fix	£1.76 £1.47
32	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
33	HAHY234051 In stock	Nut Cap	£1.76 £1.47
34	HA09785 In stock	Bolt	£4.33 £3.61
35	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
36	HAZHS1H020U Available to backorder	Screw-Hsbh	£1.68 £1.40
37	HA09267 Available to backorder	Washer-Plain	£1.76 £1.47
38	HA134-3208 In stock	Starlock-Domed	£0.60 £0.50
39	HA134-3328 Available to backorder	Tape - Toffee	£0.79 £0.66
40	HA111-8696 Available to backorder	Clip-Conduit. Twin	£1.14 £0.95
41	HA137-3088 Available to backorder	Hex Nut	£0.48 £0.40
42	HA05010 Available to backorder	Bolt	£1.76 £1.47
43	HA09780 Available to backorder	Setscrew	£1.86 £1.55
44	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
45	HAHY3966 Available to backorder	Tie-Cable	£1.66 £1.38
46	HA134-1761 Available to backorder	Bush. Igus (8 X 9 X 8)	£1.10 £0.92
