Hayter Harrier Harrier 56 - 574B (416000101 - 416999999) Traction, Suspension and HOC

Name: Hayter Harrier Harrier 56 - 574B (416000101 - 416999999) Traction, Suspension and HOC
SKU: harrier_harrier_56_574b_41611416999999_traction_suspensionhoc-gr
Price: 0.27 GBP
Availability: InStock

Part No. harrier_harrier_56_574b_41611416999999_traction_suspensionhoc-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier Harrier 56 - 574B (416000101 - 416999999) Traction, Suspension and HOC

Description

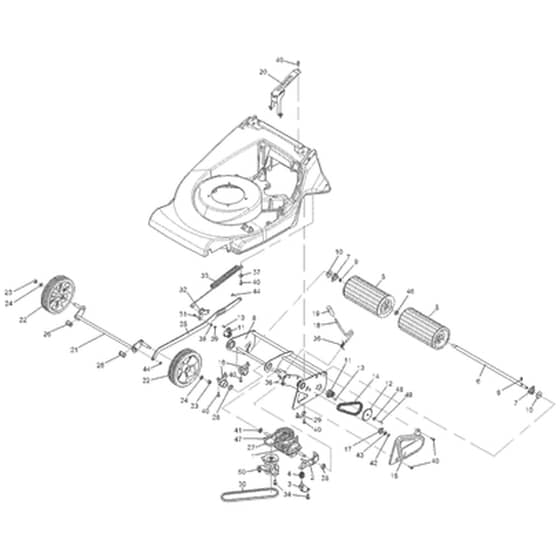

Hayter Harrier Harrier 56 - 574B (416000101 - 416999999) Traction, Suspension and HOC Parts Diagram

	Part No.	Details
1	HA134-4647 Available to backorder	Mv500 Gearbox	£163.80 £136.50
2	HA134-2656 In stock	Pivot Plate Bracket	Was £3.71 £3.09 Special Price £2.28 £1.90
3	HA134-2209 Available to backorder	Gearbox Bracket Assembly	£10.74 £8.95
4	HA111-8587 Available to backorder	Spring-Mounting. Gearbox	£13.91 £11.59
5	HA134-2244 In stock	Rear Roller Half Assembly	£23.56 £19.63
6	HA134-5252 Available to backorder	Shaft-Roller. Std [56]	£44.57 £37.14
7	HA134-2924 In stock	Cam-Drive	£7.97 £6.64
8	HA134-8226-03 Available to backorder	Rear Frame. 56 (Pro) [Black]	£112.56 £93.80
9	HA134-2034 In stock	Key-Drive	£2.94 £2.45
10	HA111-8602 In stock	Washer-Thrust	£1.21 £1.01
11	HA134-2635 In stock	Bush. Rear Roller	£12.78 £10.65
12	HA134-3806 In stock	Sprocket	£8.32 £6.93
13	HA134-0050 Available to backorder	Screw-Taptite	£0.65 £0.54
14	HA134-0355 In stock	Chain	£13.85 £11.54
15	HA134-0372 In stock	Cover-Chain	£4.03 £3.36
16	HA134-0393 In stock	Mount-Bearing. Frame (Rear)	£9.80 £8.17
17	HA134-3805 In stock	Sprocket. 10T	£13.12 £10.93
18	HA111-8705 Available to backorder	Height Of Cut (Hoc) Lever	£4.74 £3.95
19	HA480134 In stock	Knob-Hoc	£2.36 £1.97
20	HA134-2232 Available to backorder	Hoc Tower Assembly	£10.57 £8.81
21	HA134-4829 In stock	Axle Assembly 56 Series Heavy Duty 8 Inch	£39.47 £32.89
22	HA111-8858 In stock	8 Inch Plastic Tyre	£22.16 £18.47
23	HA09447 Available to backorder	Nut	£1.74 £1.45
24	HA09479 Available to backorder	Washer-Plain	£1.72 £1.43
25	HA134-0365 Available to backorder	Connecting Rod Assembly	Was £12.19 £10.16 Special Price £7.04 £5.87
26	HA410069 In stock	Bearing-Axle. Front	£1.84 £1.53
27	HA134-2622 In stock	V Belt	£13.12 £10.93
28	HA134-2889 In stock	Bearing-Ball	£12.11 £10.09
29	HA111-8670 In stock	Axle- Support. Rear	£2.66 £2.22
30	HA134-0351 In stock	V Belt	£14.33 £11.94
31	HA09263 Available to backorder	Washer	£1.66 £1.38
32	HA134-2254 In stock	Spring Load Lever	Was £1.86 £1.55 Special Price £1.14 £0.95
33	HA134-2287 Available to backorder	Spring Counter Balance	£12.95 £10.79
34	HA134-2299 Available to backorder	Screw-Hwh	£0.56 £0.47
35	HA480132 In stock	Spring-Torsion. Hoc	£1.27 £1.06
36	HA04020 In stock	Grip-Fix	£1.76 £1.47
37	HA09363 Available to backorder	Screw-Hh	£1.54 £1.28
38	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
39	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
40	HA09575 In stock	Screw-Taptite	£1.84 £1.53
41	HA134-4513 In stock	Retaining Collar. Drive Shaft	£0.98 £0.82
42	HA134-0254 In stock	Circlip-External. Hd	£0.66 £0.55
43	HA111-8216 In stock	Washer-Thrust	£1.25 £1.04
44	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
46	HA108-0015 In stock	Flat Washer	£0.66 £0.55
47	HA134-4514 In stock	Pin. Roll. 3mm X 16mm	£0.32 £0.27
48	HA111-7679 In stock	Washer-Plain	£0.42 £0.35
49	HA134-6999 Available to backorder	Screw-Hh Lock[M6-1.0X20.Cl8.8. Patch.Cz]	£0.43 £0.36
50	HA134-2848 In stock	Jack Shaft Assy	Was £76.78 £63.98 Special Price £47.08 £39.23
