Hayter Harrier Harrier 41 - 377A (414167277 - 419999999) Traction and Suspension and HOC

Description

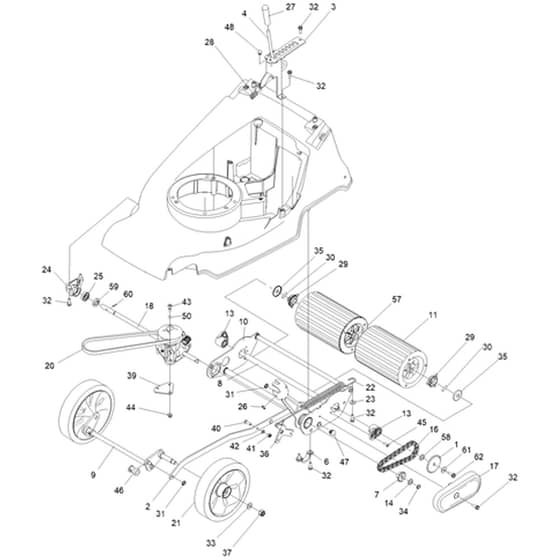

Hayter Harrier Harrier 41 - 377A (414167277 - 419999999) Traction and Suspension and HOC Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-3806 In stock	Sprocket	£7.54 £6.28
2	HA111-9459 Available to backorder	Connecting Rod Wa	£9.52 £7.93
3	HA111-8675 In stock	Hoc Tower Assembly	Was £13.93 £11.61 Special Price £8.54 £7.12
4	HA111-8705 Available to backorder	Height Of Cut (Hoc) Lever	£4.58 £3.82
6	HA111-8670 In stock	Axle- Support. Rear	£2.42 £2.02
7	HA134-3805 In stock	Sprocket. 10T	£11.90 £9.92
8	HA134-5250 Available to backorder	Shaft-Roller [41]	£35.90 £29.92
10	HA134-6055 In stock	Front Axle Assembly Hd	£29.58 £24.65
11	HA111-8598 In stock	Rear Roller Half Assembly	£27.46 £22.88
13	HA134-2635 In stock	Bush. Rear Roller	£11.58 £9.65
14	HA111-8216 In stock	Washer-Thrust	£1.12 £0.93
16	HA134-2655 In stock	Chain 42 Pitches 3.8" Inc Link	£12.08 £10.07
17	HA134-3771 In stock	Chain Guard	£1.88 £1.57
18	HA134-5386 In stock	Kit. Transmission. Std. H41	£92.18 £76.82
20	HA111-8028 In stock	Traction Drive V-Belt	£17.52 £14.60
21	HA111-8858 In stock	8 Inch Plastic Tyre	£20.10 £16.75
22	HA410050 In stock	Spring-Counter Balance	£7.38 £6.15
23	HA09263 Available to backorder	Washer	£1.60 £1.33
24	HA111-8576 In stock	Rear Frame Bearing Mount	£7.60 £6.33
25	HA132-9286 In stock	Bearing	£7.50 £6.25
26	HA04020 In stock	Grip-Fix	£1.60 £1.33
27	HA480134 In stock	Knob-Hoc	£2.14 £1.78
28	HA480132 In stock	Spring-Torsion. Hoc	£1.14 £0.95
29	HA134-2924 In stock	Cam-Drive	£7.44 £6.20
30	HA134-2034 In stock	Key-Drive	£2.66 £2.22
31	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
32	HA09575 In stock	Screw-Taptite	£1.66 £1.38
33	HA09479 Available to backorder	Washer-Plain	£1.66 £1.38
34	HA134-0254 In stock	Circlip-External. Hd	£0.60 £0.50
35	HA111-8602 In stock	Washer-Thrust	£1.10 £0.92
36	HA111-9003 In stock	Spring Load Lever	Was £4.12 £3.43 Special Price £2.53 £2.11
37	HA09447 Available to backorder	Nut	£1.68 £1.40
39	HA111-9741 In stock	Bracket Gearbox	Was £2.40 £2.00 Special Price £1.00 £0.83
40	HA09363 In stock	Screw-Hh	Was £1.61 £1.34 Special Price £0.94 £0.78
41	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
42	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
43	HA111-9762 Available to backorder	5.16"X1.4" Shoulder Bolt	£10.32 £8.60
44	HA137-3005 Available to backorder	Hex Flange (Hf) Nut	£0.46 £0.38
45	HA134-0050 In stock	Screw-Taptite	£0.58 £0.48
46	HA410069 In stock	Bearing-Axle. Front	£1.68 £1.40
47	HA111-9933 Available to backorder	Plastic Round Insert (16mm Od Tube)	£0.91 £0.76
48	HA134-0262 Available to backorder	Rivet-Push. Plastic	£1.20 £1.00
50	HA134-2791 Available to backorder	O-Ring.2-010 N674-70 Or	£0.48 £0.40
57	HA108-0015 In stock	Flat Washer	£0.62 £0.52
58	HA110-4068 In stock	Washer-Plastic	£2.40 £2.00
59	HA134-4513 In stock	Retaining Collar. Drive Shaft	£0.90 £0.75
60	HA134-4514 In stock	Pin. Roll. 3mm X 16mm	£0.47 £0.39
61	HA111-7679 Available to backorder	Washer-Plain	£0.38 £0.32
62	HA134-6999 In stock	Screw-Hh Lock[M6-1.0X20.Cl8.8. Patch.Cz]	£0.38 £0.32
