Hayter Harrier Harrier 41 - 376B (418000101 - 419999999) Traction, Suspension and HOC

Name: Hayter Harrier Harrier 41 - 376B (418000101 - 419999999) Traction, Suspension and HOC
SKU: harrier_harrier_41_376b_41811419999999_traction_suspensionhoc-gr
Price: 0.27 GBP
Availability: InStock

Part No. harrier_harrier_41_376b_41811419999999_traction_suspensionhoc-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier Harrier 41 - 376B (418000101 - 419999999) Traction, Suspension and HOC

Description

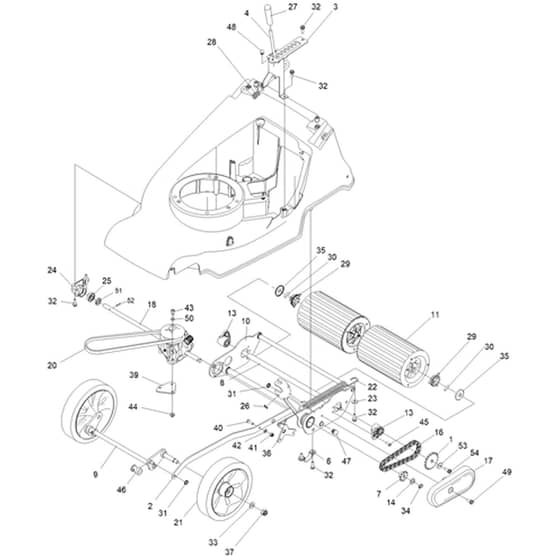

Hayter Harrier Harrier 41 - 376B (418000101 - 419999999) Traction, Suspension and HOC Parts Diagram

	Part No.	Details
1	HA134-3806 In stock	Sprocket	£8.32 £6.93
2	HA111-9459 Available to backorder	Connecting Rod Wa	£9.85 £8.21
3	HA111-8675 In stock	Hoc Tower Assembly	Was £13.93 £11.61 Special Price £8.54 £7.12
4	HA111-8705 Available to backorder	Height Of Cut (Hoc) Lever	£4.74 £3.95
6	HA111-8670 In stock	Axle- Support. Rear	£2.66 £2.22
7	HA134-3805 In stock	Sprocket. 10T	£13.12 £10.93
8	HA134-5250 Available to backorder	Shaft-Roller [41]	£37.14 £30.95
10	HA134-6055 In stock	Front Axle Assembly Hd	£31.70 £26.42
11	HA111-8598 In stock	Rear Roller Half Assembly	£30.28 £25.23
13	HA134-2635 In stock	Bush. Rear Roller	£12.78 £10.65
14	HA111-8216 In stock	Washer-Thrust	£1.25 £1.04
16	HA134-2655 In stock	Chain 42 Pitches 3.8" Inc Link	£13.33 £11.11
17	HA134-3771 In stock	Chain Guard	£2.08 £1.73
18	HA134-5386 In stock	Kit. Transmission. Std. H41	£98.08 £81.73
20	HA111-8028 In stock	Traction Drive V-Belt	£19.33 £16.11
21	HA111-8858 In stock	8 Inch Plastic Tyre	£22.16 £18.47
22	HA410050 In stock	Spring-Counter Balance	£8.12 £6.77
23	HA09263 Available to backorder	Washer	£1.66 £1.38
24	HA111-8576 Available to backorder	Rear Frame Bearing Mount	£8.39 £6.99
25	HA132-9286 In stock	Bearing	£8.28 £6.90
26	HA04020 In stock	Grip-Fix	£1.76 £1.47
27	HA480134 In stock	Knob-Hoc	£2.36 £1.97
28	HA480132 In stock	Spring-Torsion. Hoc	£1.27 £1.06
29	HA134-2924 In stock	Obs Drive Cam	£7.97 £6.64
30	HA134-2034 In stock	Obs Drive Key	£2.94 £2.45
31	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
32	HA09575 In stock	Screw-Taptite	£1.84 £1.53
33	HA09479 Available to backorder	Washer-Plain	£1.72 £1.43
34	HA134-0254 In stock	Circlip-External. Hd	£0.66 £0.55
35	HA111-8602 In stock	Washer-Thrust	£1.21 £1.01
36	HA111-9003 In stock	Spring Load Lever	Was £4.12 £3.43 Special Price £2.53 £2.11
37	HA09447 Available to backorder	Nut	£1.74 £1.45
39	HA111-9741 In stock	Bracket Gearbox	Was £2.40 £2.00 Special Price £1.00 £0.83
40	HA09363 Available to backorder	Screw-Hh	£1.54 £1.28
41	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
42	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
43	HA111-9762 Available to backorder	5.16"X1.4" Shoulder Bolt	£10.68 £8.90
44	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
45	HA134-1168 Available to backorder	Obs Nut-Cage	£116.04 £96.70
46	HA410069 In stock	Bearing-Axle. Front	£1.84 £1.53
47	HA111-9933 Available to backorder	Plastic Round Insert (16mm Od Tube)	£0.79 £0.66
48	HA134-0262 In stock	Rivet-Push. Plastic	£1.31 £1.09
49	HA09365 In stock	Screw M6 X 16 Taptite Hex Hd	£1.84 £1.53
50	HA1054-H Available to backorder	O-Ring.2-010 N674-70 Or	£116.04 £96.70
51	HA134-4513 In stock	Retaining Collar. Drive Shaft	£0.98 £0.82
52	HA134-4514 In stock	Pin. Roll. 3mm X 16mm	£0.32 £0.27
53	HA111-7679 In stock	Washer-Plain	£0.42 £0.35
54	HA134-6999 Available to backorder	Screw-Hh Lock[M6-1.0X20.Cl8.8. Patch.Cz]	£0.43 £0.36
