Description

Hayter - 566J

Serial No: 402000000 - 999999999

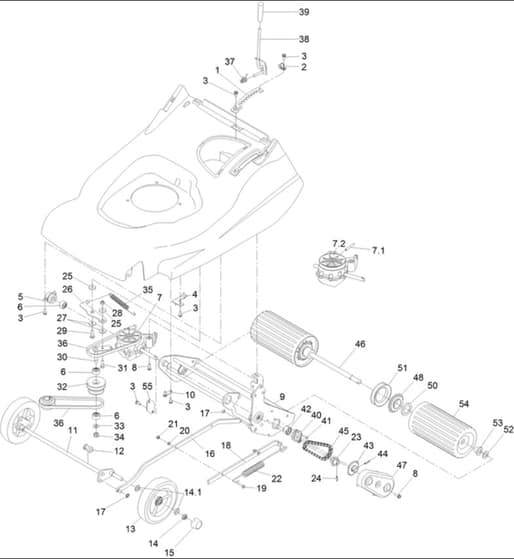

Traction Suspension Hoc - Parts Diagram

Ref. Img. Part No. Details
  1 Ratchet-Plate. Hoc
Ratchet-Plate. Hoc
HA560018 Out of stock
Ratchet-Plate. Hoc
£4.39 £3.66

  2 Clip-Cable
Clip-Cable
HA70-07-109 Out of stock
Clip-Cable
£3.70 £3.08

  3 Screw-Taptite
Screw-Taptite
HA09365 In stock
Screw-Taptite
£1.63 £1.36

  4 Bracket
Bracket
HA560029 Out of stock
Bracket
£5.14 £4.28

  5 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  6 Bearing
Bearing
HA111-1276 In stock
Bearing
£5.94 £4.95

  7 Gearbox Asm
Gearbox Asm
HA111-7934 Out of stock
Gearbox Asm
£133.12 £110.93

  7 Pin (7.1)
Pin (7.1)
HA411023 Out of stock
Pin (7.1)
£1.56 £1.30

  7 Pulley (7.2)
Pulley (7.2)
HA111-1941 In stock
Pulley (7.2)
£9.72 £8.10

  8 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  9 Frame-Roller. Rear
Frame-Roller. Rear
HA111-1485-03 Out of stock
Frame-Roller. Rear
£193.72 £161.43

  10 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  11 Axle-Front
Axle-Front
HA560008 Out of stock
Axle-Front
£63.31 £52.76

  12 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  13 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  14 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  14 Bearing (14.1)
Bearing (14.1)
HAHY300154 In stock
Bearing (14.1)
£3.72 £3.10

  15 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  16 Rod-Connecting
Rod-Connecting
HA560028 Out of stock
Rod-Connecting
£24.92 £20.77

  17 Washer
Washer
HA0201086 In stock
Washer
£1.62 £1.35

  18 Spring
Spring
HA560037 Out of stock
Spring
£11.00 £9.17

  19 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  20 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  21 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  22 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  23 Sprocket-Gearbox
Sprocket-Gearbox
HA411011 In stock
Sprocket-Gearbox
£13.43 £11.19

  24 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  25 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01

  26 Arm-Plate. Take-Up
Arm-Plate. Take-Up
HA111-3250 Out of stock
Arm-Plate. Take-Up
£19.01 £15.84

  27 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  28 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  29 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  30 Lever Take-Up Asm
Lever Take-Up Asm
HA111-3326 Out of stock
Lever Take-Up Asm
£41.54 £34.62

  31 Screw-HH
Screw-HH
HA03162 Out of stock
Screw-HH
£1.62 £1.35

  32 Pulley Take-Up
Pulley Take-Up
HA111-7157 Out of stock
Pulley Take-Up
£59.22 £49.35

  33 Washer-Plain
Washer-Plain
HAZWQ1J000U Out of stock
Washer-Plain
£2.10 £1.75

  34 Nut-Hex. Ni
Nut-Hex. Ni
HAZNN1J000U Out of stock
Nut-Hex. Ni
£1.66 £1.38

  35 Spring-Variator
Spring-Variator
HAHY412004 Out of stock
Spring-Variator
£5.95 £4.96

  36 Belt-Variator (520)
Belt-Variator (520)
HA411024 In stock
Belt-Variator (520)
£11.52 £9.60

  37 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  38 Lever-Hoc
Lever-Hoc
HA560046 Out of stock
Lever-Hoc
£15.38 £12.82

  39 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  40 Bearing-Roller
Bearing-Roller
HA111-1492 In stock
Bearing-Roller
£24.22 £20.18

  41 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  42 Cover-Dust. Bushing
Cover-Dust. Bushing
HA111-1860 Out of stock
Cover-Dust. Bushing
£7.64 £6.37

  43 Sprocket-18T
Sprocket-18T
HA111-1552 In stock
Sprocket-18T
£24.71 £20.59

  44 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354 In stock
Pin-Spring. Selloc
£1.58 £1.32

  45 Chain-40 Pitches (3/8 Inch Link)
Chain-40 Pitches (3/8 Inch Link)
HA411016 In stock
Chain-40 Pitches (3/8 Inch Link)
£11.59 £9.66

  46 Shaft-Roller
Shaft-Roller
HA111-1717 Out of stock
Shaft-Roller
£62.65 £52.21

  47 Cover-Drive
Cover-Drive
HA411013 In stock
Cover-Drive
£3.78 £3.15

  48 Freewheel-Roller
Freewheel-Roller
HA340150 In stock
Freewheel-Roller
£14.05 £11.71

  50 Locknut
Locknut
HA134-2080 Out of stock
Locknut
£7.13 £5.94

  52 Washer
Washer
HA480097 In stock
Washer
£1.64 £1.37

  53 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  54 Roller-Rear
Roller-Rear
HA560031W In stock
Roller-Rear
£83.39 £69.49

  55 Plate-Cover. Dust
Plate-Cover. Dust
HA111-1861 Out of stock
Plate-Cover. Dust
£2.09 £1.74


Description

Hayter - 566J

Serial No: 402000000 - 999999999

Traction Suspension Hoc - Parts Diagram
