Hayter Harrier 56 Cat Converter - 342L (342L001121 - 342L099999) - Mainframe Assembly

Description

Hayter - 342L

Serial No: 342L001121 - 342L099999

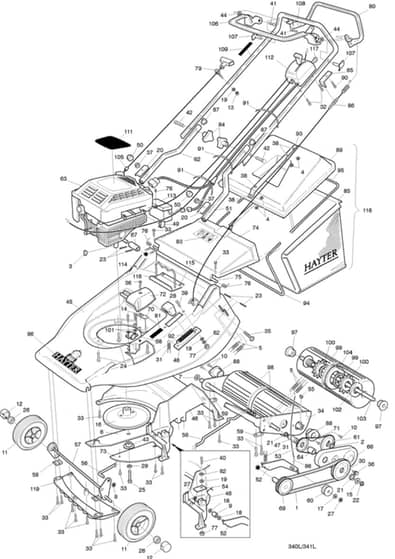

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA340049 In stock	Belt	£19.56 £16.30
2	HA1428 Available to backorder	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.68 £1.40
3	HA1662 In stock	Key-Woodruff	£1.50 £1.25
4	HA09257 Available to backorder	Washer	£1.58 £1.32
6	HA340015 Available to backorder	Cutterbar	£45.14 £37.62
8	HA04020 In stock	Grip-Fix	£1.60 £1.33
9	HAHY4452 Available to backorder	Bush	£3.50 £2.92
10	HA09545 In stock	Screw-Taptite	£1.66 £1.38
11	HA111-1250 In stock	Wheel-Ribbed	£33.18 £27.65
12	HA219143 Available to backorder	Hub Cap	£7.02 £5.85
13	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
14	HA09575 In stock	Screw-Taptite	£1.66 £1.38
15	HA02575 Available to backorder	Washer	£1.58 £1.32
16	HA397042W Available to backorder	Friction Disc W/A	£56.66 £47.22
17	HA09266 Available to backorder	Washer-Plain	£1.40 £1.17
18	HA09280 Available to backorder	Washer-Plain	£1.50 £1.25
19	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
20	HA340028 Available to backorder	Plate-Clamp. Handlebar	£6.54 £5.45
21	HA02708 In stock	Circlip Ext 3/4"	£0.48 £0.40
22	HA03096 In stock	Circlip	£1.58 £1.32
23	HA03997 In stock	Pin-Roll	£1.66 £1.38
24	HA09349 In stock	Screw	£1.66 £1.38
25	HA09116 Available to backorder	Screw Hex Hd 3/8 Unf x11/4	£1.58 £1.32
26	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.62 £1.35
27	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
28	HA330053 Available to backorder	Cover Lever	£5.42 £4.52
29	HA09273 In stock	Washer-Spring	£1.66 £1.38
31	HA1246 Available to backorder	Spring Clutch Shoe Return	£3.14 £2.62
33	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.68 £1.40
35	HA09379 Available to backorder	Bolt-Coach	£1.56 £1.30
36	HA09546 Available to backorder	Screw-Taptite	£1.68 £1.40
37	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
38	HA09320 Available to backorder	Rivet	£1.58 £1.32
39	HA09668 Available to backorder	Bolt-Coach	£1.50 £1.25
40	HA09547 Available to backorder	Screw-HH	£1.58 £1.32
41	HA09687 In stock	Screw	£1.68 £1.40
42	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
43	HAHY216008 Available to backorder	Piece Cutterbar Distance	£12.78 £10.65
44	HA09688 Available to backorder	Washer	£0.70 £0.58
47	HA219095 Available to backorder	Idler Sprocket Sleeve	£21.08 £17.57
48	HA340102 Available to backorder	Plate Ratchet 9 Tooth	£31.70 £26.42
49	HA219097 Available to backorder	Clip - Cable	£1.68 £1.40
50	HAHY234051 In stock	Cap-Nut	£1.60 £1.33
52	HAHY219023 Available to backorder	Lever Jockey Assy	£58.16 £48.47
53	HA219106 In stock	Sprocket 10T	£12.46 £10.38
56	HA340014 Available to backorder	Connecting Rod	£8.24 £6.87
57	HA340020 Available to backorder	Front Axle Assy	£50.56 £42.13
58	HA219036 Available to backorder	Moulding - Front Axle Bearing	£5.92 £4.93
59	HA219037 Available to backorder	Plate-Securing	£1.70 £1.42
60	HA219156 In stock	Pulley - Jockey	£1.72 £1.43
61	HA219051 Available to backorder	17T Sprocket Assy	£21.56 £17.97
62	HA340104 Available to backorder	Handlebar - Lower Rh	£11.02 £9.18
64	HA219053 Available to backorder	Sleeve Sprocket Tube	£9.16 £7.63
67	HA340109 Available to backorder	Coupling	£44.64 £37.20
68	HA219060 In stock	Moulding Bearing Housing	£8.70 £7.25
70	HA219064 Available to backorder	Bracket Belt Guide	£8.00 £6.67
71	HA219054 Available to backorder	Chain 30 Pitch 1/2" x 1/8"	£13.96 £11.63
72	HA340206 Available to backorder	Cover Transmission Moulded	£18.80 £15.67
73	HA340051 Available to backorder	Underguard	£17.34 £14.45
74	HA340022 Available to backorder	Rear Deflector	£70.24 £58.53
76	HA340052 Available to backorder	Spring	£5.78 £4.82
77	HA09437 Available to backorder	Nut	£1.58 £1.32
79	HA305093 In stock	Guide Rope	£1.70 £1.42
80	HA111-1921-03 In stock	Clutch Lever	£43.56 £36.30
81	HA320006 In stock	Decal-Hoc	£1.66 £1.38
82	HA09474 Available to backorder	Washer-Spring	£1.60 £1.33
83	HA111-0083 Available to backorder	Decal Safety	£2.36 £1.97
84	HA226013 In stock	Triangular Handwheel	£6.98 £5.82
85	HA340071 Available to backorder	Grassbag - Fabric	£51.84 £43.20
86	HA340056 Available to backorder	Clutch Cable	£30.86 £25.72
87	HA300160 Available to backorder	Plug	£1.66 £1.38
88	HA219102 In stock	Housing-Bearing. Roller	£12.98 £10.82
89	HA340072 Available to backorder	Cover - Grassbag	£78.14 £65.12
94	HA340075 Available to backorder	Frame - Grassbag Assembly	£44.96 £37.47
95	HA340078 Available to backorder	Â??Uâ?? Tube	£15.40 £12.83
96	HA410087 In stock	Decal	£5.66 £4.72
97	HA340129 In stock	Bushing-Roller. Oilite	£9.90 £8.25
98	HA340139 Available to backorder	Roller - Assembly	£79.10 £65.92
99	HA340157 In stock	Steel Spacer	£2.14 £1.78
100	HA340150 In stock	Freewheel-Roller	£14.40 £12.00
101	HA340154 Available to backorder	Bushing	£5.80 £4.83
102	HA340163 Available to backorder	Locknut	£26.22 £21.85
104	HA340168 In stock	Shroud-Freewheel	£11.86 £9.88
105	HAMU42189 Available to backorder	Rope Stop	£4.84 £4.03
106	HA111-9662 In stock	Brake Lever	£18.24 £15.20
107	HA340182 In stock	Pin-Pivot	£1.66 £1.38
108	HA341029 Available to backorder	Upper Handlebar	£88.04 £73.37
118	HA340070 Available to backorder	Grassbag Assy	£219.60 £183.00
119	HA340190 Available to backorder	Insert - Front Fin	£13.74 £11.45
