Hayter Harrier 56 BBC AD - 563J (316000101 - 316999999) - Lower Mainframe

Description

Hayter Harrier 56 Blade Brake Clutch Autodrive Mower - 563J

Serial No: 316000101 - 316999999

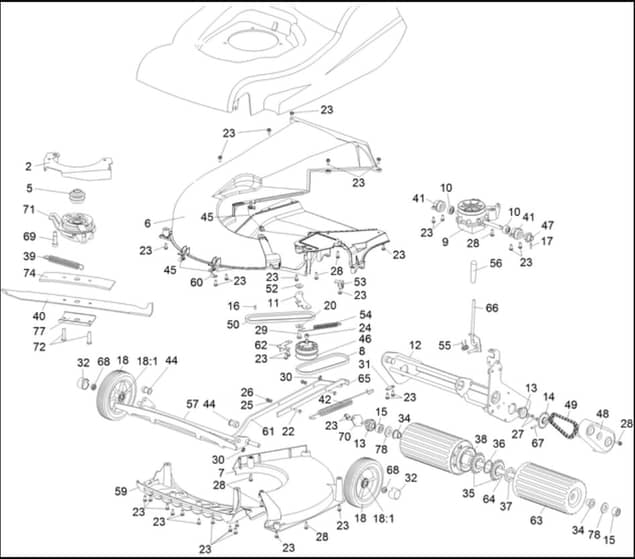

Lower Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA111-0180-03 Out of stock	Bracket	£83.28 £69.40
5	HA111-0822 Out of stock	Pulley 51mm Pcd	£72.05 £60.04
6	HA111-1164 In stock	Underdeck-Fixed	£72.71 £60.59
7	HA111-1163 In stock	Underdeck-Removable	£19.57 £16.31
8	HA111-1254 In stock	V Belt Z502	£10.49 £8.74
9	HA111-7934 Out of stock	Gearbox Asm	£133.12 £110.93
10	HA111-1276 In stock	Bearing	£5.94 £4.95
11	HA111-1398 Out of stock	Speed Lever	£11.50 £9.58
12	HA111-1485-03 Out of stock	Frame-Roller. Rear	£193.72 £161.43
13	HA111-1492 In stock	Bearing-Roller	£24.22 £20.18
14	HA111-1552 In stock	Sprocket-18T	£24.71 £20.59
15	HA111-1860 Out of stock	Cover-Dust. Bushing	£7.64 £6.37
16	HA1662 In stock	Key-Woodruff	£1.46 £1.22
17	HA03997 In stock	Pin-Roll	£1.62 £1.35
18	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
18	HAHY300154 In stock	Bearing (18.1)	£3.72 £3.10
20	HA09270 Out of stock	Washer-Plain	£1.62 £1.35
22	HA09364 Out of stock	Screw-HH	£1.56 £1.30
23	HA09365 In stock	Screw-Taptite	£1.63 £1.36
24	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
25	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
26	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
27	HA09545 In stock	Screw-Taptite	£1.62 £1.35
28	HA09575 In stock	Screw-Taptite	£1.62 £1.35
29	HA09787 Out of stock	Screw-Taptite	£1.46 £1.22
30	HA0201086 In stock	Washer-Starlock	£1.62 £1.35
31	HA219037 Out of stock	Plate-Securing	£1.62 £1.35
32	HA111-1251 Out of stock	Cap-Hub	£1.82 £1.52
34	HA340129 In stock	Bushing-Roller. Oilite	£9.67 £8.06
35	HA340150 In stock	Freewheel-Roller	£14.05 £11.71
36	HA340157 In stock	Spacer-Steel	£2.09 £1.74
37	HA340163 In stock	Locknut	£25.60 £21.33
38	HA340168 In stock	Shroud-Freewheel	£11.57 £9.64
39	HA343011 Out of stock	Spring Blade Brake Tension	£9.56 £7.97
40	HA343034 In stock	Blade	£60.06 £50.05
41	HA410048 In stock	Housing-Pivot Bearing. Lh	£8.34 £6.95
42	HA410050 In stock	Spring-Counter Balance	£7.50 £6.25
44	HA410069 In stock	Bearing-Axle. Front	£1.63 £1.36
45	HA410076 In stock	Nut	£1.82 £1.52
46	HA411001 In stock	Pulley Variator Asm	£58.52 £48.77
47	HA411011 In stock	Sprocket-Gearbox	£13.43 £11.19
48	HA411013 In stock	Cover-Drive	£3.78 £3.15
49	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£11.59 £9.66
50	HA411024 In stock	Belt-Variator (520)	£11.52 £9.60
52	HA411031 Out of stock	Bushing-Pivot	£8.41 £7.01
53	HAHY412003 Out of stock	Bracket Cable	£4.60 £3.83
54	HAHY412004 Out of stock	Spring-Variator	£5.95 £4.96
55	HA480132 In stock	Spring-Torsion. Hoc	£1.16 £0.97
56	HA480134 In stock	Knob-Hoc	£2.09 £1.74
57	HA560008 Out of stock	Axle-Front	£63.31 £52.76
59	HA560014 Out of stock	Fins-Front	£15.38 £12.82
60	HA560027 Out of stock	Clamp	£4.32 £3.60
61	HA560028 Out of stock	Rod-Connecting	£24.92 £20.77
62	HA560029 Out of stock	Bracket	£5.14 £4.28
63	HA560031W In stock	Roller-Rear	£83.39 £69.49
64	HA111-1717 Out of stock	Shaft-Roller	£62.65 £52.21
65	HA560037 Out of stock	Bar Spring Tension	£11.00 £9.17
66	HA560046 Out of stock	Lever-Hoc	£15.38 £12.82
67	HAHY03354 In stock	Pin-Spring. Selloc	£1.58 £1.32
68	HAHY4486 In stock	Nut-Unf	£1.58 £1.32
69	HAZIS8L030S Out of stock	Screw - Soc Hd Shld M12 x M10 x 30	£12.11 £10.09
70	HA111-1861 Out of stock	Plate-Cover. Dust	£2.09 £1.74
71	HA485007 Out of stock	Blade Brake Clutch	£235.80 £196.50
72	HA09717 Out of stock	Socket Head Screw	£1.56 £1.30
77	HA111-2950-03 Out of stock	Clamp Plate	£24.62 £20.52
78	HA480097 In stock	Washer	£1.64 £1.37
