Hayter Harrier 56 BBC AD - 563H (313000001 - 313999999) - Lower Mainframe Harrier 56 Bbc Ad

Name: Hayter Harrier 56 BBC AD - 563H (313000001 - 313999999) - Lower Mainframe Harrier 56 Bbc Ad
SKU: harrier 56 bbc ad 563h01 lower mainframe harrier 56 bbc ad-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 56 BBC AD - 563H (313000001 - 313999999) - Lower Mainframe Harrier 56 Bbc Ad

Description

Hayter Harrier 56 Blade Brake Clutch Autodrive Mower - 563H

Serial No: 313000001 - 313999999

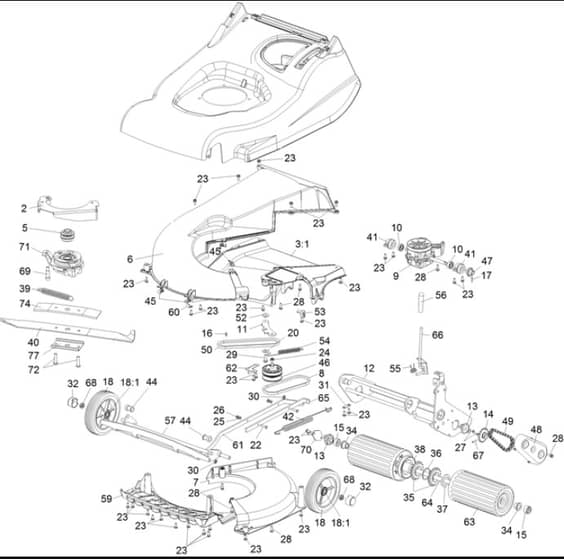

Lower Mainframe Harrier 56 Bbc Ad - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA111-0180-03 Available to backorder	Bracket	£85.34 £71.12
5	HA111-0822 Available to backorder	Pulley 51mm Pcd	£73.82 £61.52
6	HA111-1164 In stock	Underdeck-Fixed	£74.52 £62.10
7	HA111-1163 In stock	Underdeck-Removable	£20.66 £17.22
8	HA111-1254 In stock	V Belt Z502	£10.74 £8.95
9	HA111-7934 Available to backorder	Gearbox Asm	£135.48 £112.90
10	HA111-1276 In stock	Bearing	£6.26 £5.22
11	HA111-1398 Available to backorder	Speed Lever	£11.78 £9.82
12	HA111-1485-03 Available to backorder	Frame-Roller. Rear	£186.84 £155.70
13	HA111-1492 In stock	Bearing-Roller	£25.56 £21.30
14	HA111-1552 In stock	Sprocket-18T	£24.32 £20.27
15	HA111-1860 Available to backorder	Cover-Dust. Bushing	£7.84 £6.53
16	HA1662 In stock	Key-Woodruff	£1.50 £1.25
17	HA03997 In stock	Pin-Roll	£1.66 £1.38
18	HA111-1250 In stock	Wheel-Ribbed	£33.18 £27.65
18	HAHY300154 In stock	Bearing (18.1)	£3.54 £2.95
20	HA09270 In stock	Washer-Plain	£1.68 £1.40
22	HA09364 Available to backorder	Screw-HH	£1.60 £1.33
23	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.68 £1.40
24	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
25	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
26	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
27	HA09545 In stock	Screw-Taptite	£1.66 £1.38
28	HA09575 In stock	Screw-Taptite	£1.66 £1.38
29	HA09787 Available to backorder	Screw-Taptite	£1.56 £1.30
30	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
31	HA219037 Available to backorder	Plate-Securing	£1.70 £1.42
32	HA111-1251 Available to backorder	Cap-Hub	£1.86 £1.55
34	HA340129 In stock	Bushing-Roller. Oilite	£9.90 £8.25
35	HA340150 In stock	Freewheel-Roller	£14.40 £12.00
36	HA340157 In stock	Spacer-Steel	£2.14 £1.78
37	HA340163 Available to backorder	Locknut	£26.22 £21.85
38	HA340168 In stock	Shroud-Freewheel	£11.86 £9.88
40	HA343034 Available to backorder	Blade	£61.54 £51.28
41	HA410048 In stock	Housing-Pivot Bearing. Lh	£8.54 £7.12
42	HA410050 In stock	Spring-Counter Balance	£7.38 £6.15
44	HA410069 In stock	Bearing-Axle. Front	£1.68 £1.40
45	HA410076 Available to backorder	Nut	£1.86 £1.55
46	HA411001 In stock	Pulley Variator Asm	£61.76 £51.47
47	HA411011 In stock	Sprocket-Gearbox	£13.20 £11.00
48	HA411013 In stock	Cover-Drive	£4.56 £3.80
49	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£11.88 £9.90
50	HA411024 In stock	Belt-Variator (520)	£12.18 £10.15
52	HA411031 In stock	Bushing-Pivot	£8.64 £7.20
53	HAHY412003 Available to backorder	Bracket Cable	£4.70 £3.92
54	HAHY412004 In stock	Spring-Variator	£5.86 £4.88
55	HA480132 In stock	Spring-Torsion. Hoc	£1.14 £0.95
56	HA480134 In stock	Knob-Hoc	£2.14 £1.78
57	HA560008 Available to backorder	Axle-Front	£64.86 £54.05
59	HA560014 In stock	Fins-Front	£16.08 £13.40
60	HA560027 Available to backorder	Clamp	£4.44 £3.70
61	HA560028 Available to backorder	Rod-Connecting	£25.54 £21.28
62	HA560029 Available to backorder	Bracket	£5.38 £4.48
63	HA560031W Available to backorder	Roller-Rear	£88.00 £73.33
64	HA111-1717 In stock	Shaft-Roller	£66.14 £55.12
65	HA560037 Available to backorder	Bar Spring Tension	£11.28 £9.40
66	HA560046 Available to backorder	Lever-Hoc	£15.76 £13.13
67	HAHY03354 In stock	Pin-Spring. Selloc	£1.62 £1.35
68	HAHY4486 In stock	Nut-Unf	£1.62 £1.35
69	HAZIS8L030S Available to backorder	Screw - Soc Hd Shld M12 x M10 x 30	£12.42 £10.35
70	HA111-1861 Available to backorder	Plate-Cover. Dust	£2.96 £2.47
71	HA485007 Available to backorder	Blade Brake Clutch	£230.76 £192.30
72	HA09717 Available to backorder	Socket Head Screw	£1.50 £1.25
74	HA111-2267-03 Available to backorder	Blade	£22.06 £18.38
