Hayter Harrier 56 Blade Brake Clutch Mower - 343S

Serial No: 343S001001 - 343S099999

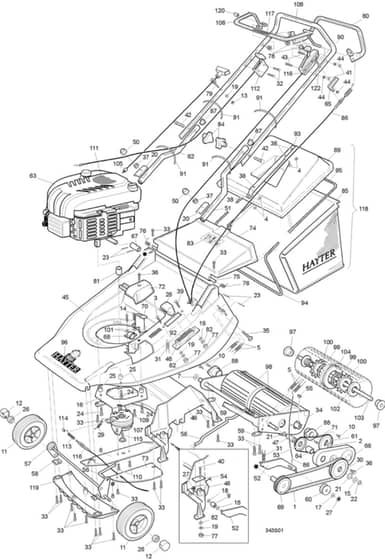

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  2 1/4-20 x 5/8 Hex Hd. Cap Screw
1/4-20 x 5/8 Hex Hd. Cap Screw
HA1428 Out of stock
1/4-20 x 5/8 Hex Hd. Cap Screw
£1.63 £1.36

  4 Washer
Washer
HA09257 Out of stock
Washer
£1.63 £1.36

  5 Spring Rear Axle Tension
Spring Rear Axle Tension
HA5421 Out of stock
Spring Rear Axle Tension
£2.86 £2.38

  8 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  9 Bush
Bush
HAHY4452 In stock
Bush
£3.41 £2.84

  10 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  11 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  12 Hub Cap
Hub Cap
HA219143 Out of stock
Hub Cap
£7.26 £6.05

  14 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  15 Washer
Washer
HA02575 In stock
Washer
£1.63 £1.36

  17 Washer-Plain
Washer-Plain
HA09266 Out of stock
Washer-Plain
£1.44 £1.20

  18 Washer-Plain
Washer-Plain
HA09280 Out of stock
Washer-Plain
£1.56 £1.30

  19 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  20 Plate-Clamp. Handlebar
Plate-Clamp. Handlebar
HA340028 In stock
Plate-Clamp. Handlebar
£6.26 £5.22

  21 Circlip Ext 3/4
Circlip Ext 3/4
HA02708 In stock
Circlip Ext 3/4"
£1.56 £1.30

  22 Circlip
Circlip
HA03096 In stock
Circlip
£1.63 £1.36

  23 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  26 Nut Unf 1/2
Nut Unf 1/2
HA4486 Out of stock
Nut Unf 1/2" Nyloc Ext Thin5/16"
£1.18 £0.98

  27 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  31 Spring Clutch Shoe Return
Spring Clutch Shoe Return
HA1246 Out of stock
Spring Clutch Shoe Return
£3.24 £2.70

  32 Setscrew
Setscrew
HA09780 Out of stock
Setscrew
£1.87 £1.56

  33 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  35 Bolt-Coach
Bolt-Coach
HA09379 Out of stock
Bolt-Coach
£1.62 £1.35

  36 Screw-Taptite
Screw-Taptite
HA09546 Out of stock
Screw-Taptite
£1.64 £1.37

  37 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  38 Rivet
Rivet
HA09320 Out of stock
Rivet
£1.63 £1.36

  39 Bolt-Coach
Bolt-Coach
HA09668 Out of stock
Bolt-Coach
£1.56 £1.30

  40 Screw-HH
Screw-HH
HA09547 Out of stock
Screw-HH
£1.63 £1.36

  41 Cap-Plastic
Cap-Plastic
HA343025 Out of stock
Cap-Plastic
£1.63 £1.36

  42 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  44 Nut-Insert. Ni
Nut-Insert. Ni
HA09657 Out of stock
Nut-Insert. Ni
£1.63 £1.36

  45 Mainframe Assembly
Mainframe Assembly
HA340205V Out of stock
Mainframe Assembly
£378.97 £315.81

  47 Idler Sprocket Sleeve
Idler Sprocket Sleeve
HA219095 Out of stock
Idler Sprocket Sleeve
£21.82 £18.18

  49 Clip - Cable
Clip - Cable
HA219097 Out of stock
Clip - Cable
£1.63 £1.36

  50 Cap-Nut
Cap-Nut
HAHY234051 In stock
Cap-Nut
£1.56 £1.30

  52 Lever Jockey Assy
Lever Jockey Assy
HAHY219023 Out of stock
Lever Jockey Assy
£56.76 £47.30

  53 Sprocket 10T
Sprocket 10T
HA219106 In stock
Sprocket 10T
£12.89 £10.74

  57 Front Axle Assy
Front Axle Assy
HA340020 Out of stock
Front Axle Assy
£52.31 £43.59

  58 Moulding - Front Axle Bearing
Moulding - Front Axle Bearing
HA219036 Out of stock
Moulding - Front Axle Bearing
£4.94 £4.12

  59 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  60 Pulley - Jockey
Pulley - Jockey
HA219156 Out of stock
Pulley - Jockey
£1.68 £1.40

  61 17T Sprocket Assy
17T Sprocket Assy
HA219051 Out of stock
17T Sprocket Assy
£22.31 £18.59

  62 Handlebar - Lower Rh
Handlebar - Lower Rh
HA340104 Out of stock
Handlebar - Lower Rh
£11.40 £9.50

  64 Sleeve Sprocket Tube
Sleeve Sprocket Tube
HA219053 Out of stock
Sleeve Sprocket Tube
£9.47 £7.89

  67 Coupling
Coupling
HA340109 Out of stock
Coupling
£46.19 £38.49

  68 Moulding Bearing Housing
Moulding Bearing Housing
HA219060 Out of stock
Moulding Bearing Housing
£9.00 £7.50

  70 Bracket Belt Guide
Bracket Belt Guide
HA219064 Out of stock
Bracket Belt Guide
£8.27 £6.89

  71 Chain 30 Pitch 1/2
Chain 30 Pitch 1/2
HA219054 In stock
Chain 30 Pitch 1/2" x 1/8"
£14.45 £12.04

  74 Rear Deflector
Rear Deflector
HA340022 Out of stock
Rear Deflector
£72.66 £60.55

  76 Spring
Spring
HA340052 Out of stock
Spring
£5.98 £4.98

  77 Nut
Nut
HA09437 Out of stock
Nut
£1.63 £1.36

  80 Lever Clutch
Lever Clutch
HA219090 Out of stock
Lever Clutch
£42.82 £35.68

  81 Spacer BBC
Spacer BBC
HA485006 Out of stock
Spacer BBC
£15.64 £13.03

  82 Washer-Spring
Washer-Spring
HA09474 Out of stock
Washer-Spring
£1.56 £1.30

  84 Triangular Handwheel
Triangular Handwheel
HA226013 In stock
Triangular Handwheel
£6.80 £5.67

  85 Grassbag - Fabric
Grassbag - Fabric
HA340071 Out of stock
Grassbag - Fabric
£48.90 £40.75

  86 Clutch Cable
Clutch Cable
HA340056 Out of stock
Clutch Cable
£31.92 £26.60

  88 Housing-Bearing. Roller
Housing-Bearing. Roller
HA219102 In stock
Housing-Bearing. Roller
£12.67 £10.56

  89 Cover - Grassbag
Cover - Grassbag
HA340072 Out of stock
Cover - Grassbag
£80.84 £67.37

  91 Spring - Clip
Spring - Clip
HA3966 Out of stock
Spring - Clip
£1.18 £0.98

  93 Handle - Grassbag
Handle - Grassbag
HA340073 Out of stock
Handle - Grassbag
£19.94 £16.62

  94 Frame - Grassbag Assembly
Frame - Grassbag Assembly
HA340075 Out of stock
Frame - Grassbag Assembly
£46.50 £38.75

  95 Â??Uâ?? Tube
Â??Uâ?? Tube
HA340078 Out of stock
Â??Uâ?? Tube
£15.92 £13.27

  96 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  97 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  98 Roller - Assembly
Roller - Assembly
HA340139 Out of stock
Roller - Assembly
£81.83 £68.19

  100 Freewheel-Roller
Freewheel-Roller
HA340150 In stock
Freewheel-Roller
£14.05 £11.71

  101 Bushing
Bushing
HA340154 Out of stock
Bushing
£5.66 £4.72

  102 Locknut
Locknut
HA340163 In stock
Locknut
£25.60 £21.33

  103 Roller Shaft
Roller Shaft
HA340162 Out of stock
Roller Shaft
£59.48 £49.57

  104 Shroud-Freewheel
Shroud-Freewheel
HA340168 In stock
Shroud-Freewheel
£11.57 £9.64

  105 Rope Stop
Rope Stop
HAMU42189 Out of stock
Rope Stop
£5.00 £4.17

  107 Blade Brake Clutch
Blade Brake Clutch
HA485007 Out of stock
Blade Brake Clutch
£235.80 £196.50

  108 Handlebar Upper
Handlebar Upper
HA341029 Out of stock
Handlebar Upper
£91.08 £75.90

  109 Screw - Soc Hd Shld M12 x M10 x 30
Screw - Soc Hd Shld M12 x M10 x 30
HAZIS8L030S Out of stock
Screw - Soc Hd Shld M12 x M10 x 30
£12.11 £10.09

  110 Screw - Soc. Hd. Button
Screw - Soc. Hd. Button
HA09747 In stock
Screw - Soc. Hd. Button
£5.66 £4.72

  112 Throttle Control & Cable
Throttle Control & Cable
HA343047 Out of stock
Throttle Control & Cable
£27.95 £23.29

  114 Nipple Split
Nipple Split
HA510118 In stock
Nipple Split
£17.40 £14.50

  115 Centre Bolt BBC
Centre Bolt BBC
HA343029 Out of stock
Centre Bolt BBC
£6.42 £5.35

  116 Control BBC Assy
Control BBC Assy
HA343030 Out of stock
Control BBC Assy
£74.11 £61.76

  118 Grassbag Assy
Grassbag Assy
HA340070 Out of stock
Grassbag Assy
£232.14 £193.45

  119 Insert - Front Fin
Insert - Front Fin
HA340190 Out of stock
Insert - Front Fin
£14.21 £11.84

  122 Washer
Washer
HA09658 Out of stock
Washer
£1.63 £1.36

  123 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35
