Hayter Harrier 56 Autodrive VS ES - 576B (409174256 - 410999999) - Traction - Suspension - - Hoc

Description

Hayter Harrier 56 Autodrive Variable Speed Electric Start Mower - 576B

Serial No: 409174256 - 410999999

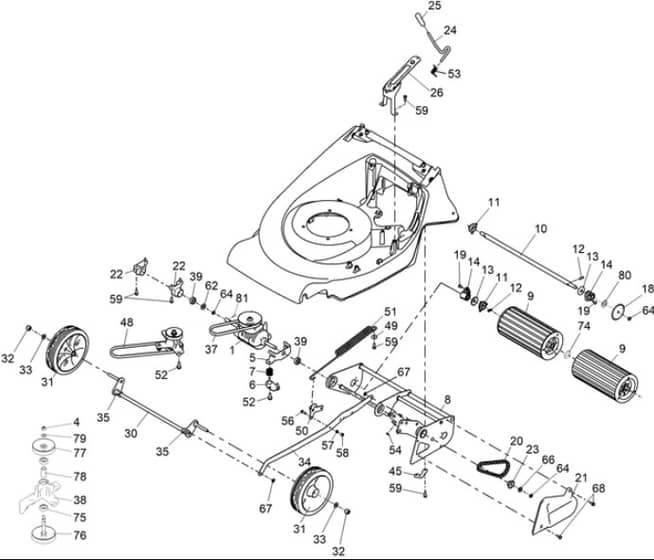

Traction - Suspension - - Hoc - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

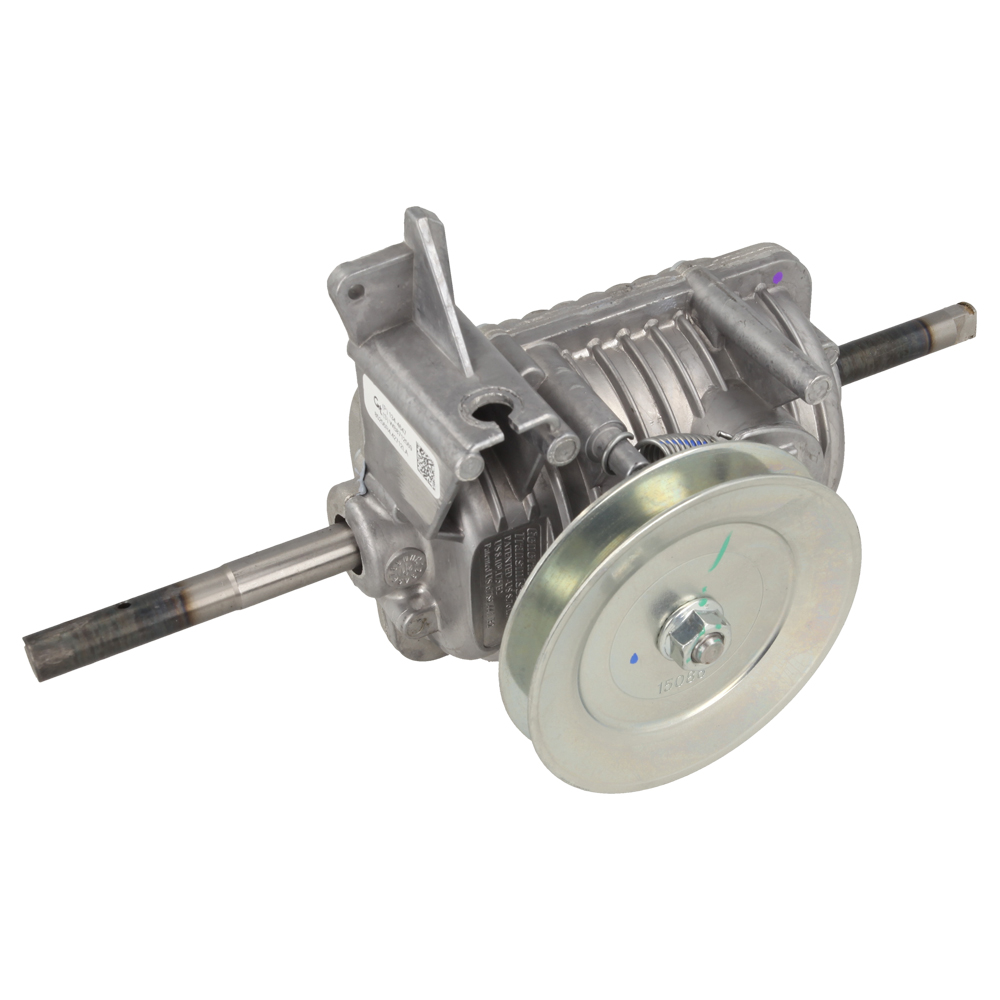

1	HA134-4647 Available to backorder	Mv500 Gearbox	£152.76 £127.30
4	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
5	HA134-2656 In stock	Pivot Plate Bracket	Was £3.71 £3.09 Special Price £2.28 £1.90
6	HA134-2209 Available to backorder	Gearbox Bracket Assembly	£10.73 £8.94
7	HA111-8587 Available to backorder	Spring-Mounting. Gearbox	£13.04 £10.87
8	HA134-0337-03 Available to backorder	Rear Axle Frame Assembly	£140.59 £117.16
9	HA134-2244 Available to backorder	Roller Half Assembly	£21.36 £17.80
10	HA134-0344 Available to backorder	Roller Shaft	£42.44 £35.37
11	HA134-2924 In stock	Cam-Drive	£7.44 £6.20
12	HA134-2034 In stock	Key-Drive	£2.66 £2.22
13	HA111-8602 In stock	Washer-Thrust	£1.10 £0.92
14	HA134-2635 In stock	Bush. Rear Roller	£11.58 £9.65
18	HA134-3806 In stock	Sprocket	£7.54 £6.28
19	HA134-0050 In stock	Screw-Taptite	£0.58 £0.48
20	HA134-0355 In stock	Chain	£12.56 £10.47
21	HA134-0372 In stock	Cover-Chain	£3.66 £3.05
22	HA134-0393 Available to backorder	Mount-Bearing. Frame (Rear)	£8.88 £7.40
23	HA134-3805 In stock	Sprocket	£11.90 £9.92
24	HA111-8705 Available to backorder	Lever-Hoc	£4.58 £3.82
25	HA480134 In stock	Knob-Hoc	£2.14 £1.78
26	HA134-2232 In stock	Hoc Tower Assembly	Was £10.57 £8.81 Special Price £6.47 £5.39
30	HA134-4827 Available to backorder	56 Front Axle Assembly Hd	£61.24 £51.03
31	HA111-8858 In stock	Wheel 8". Pvc Tyre	£20.10 £16.75
32	HA09447 Available to backorder	Nut	£1.68 £1.40
33	HA09479 Available to backorder	Washer-Plain	£1.66 £1.38
34	HA134-0365 Available to backorder	Connecting Rod Assembly	Was £11.78 £9.82 Special Price £7.04 £5.87
35	HA410069 In stock	Bearing-Axle. Front	£1.68 £1.40
37	HA134-2622 In stock	V Belt	£11.88 £9.90

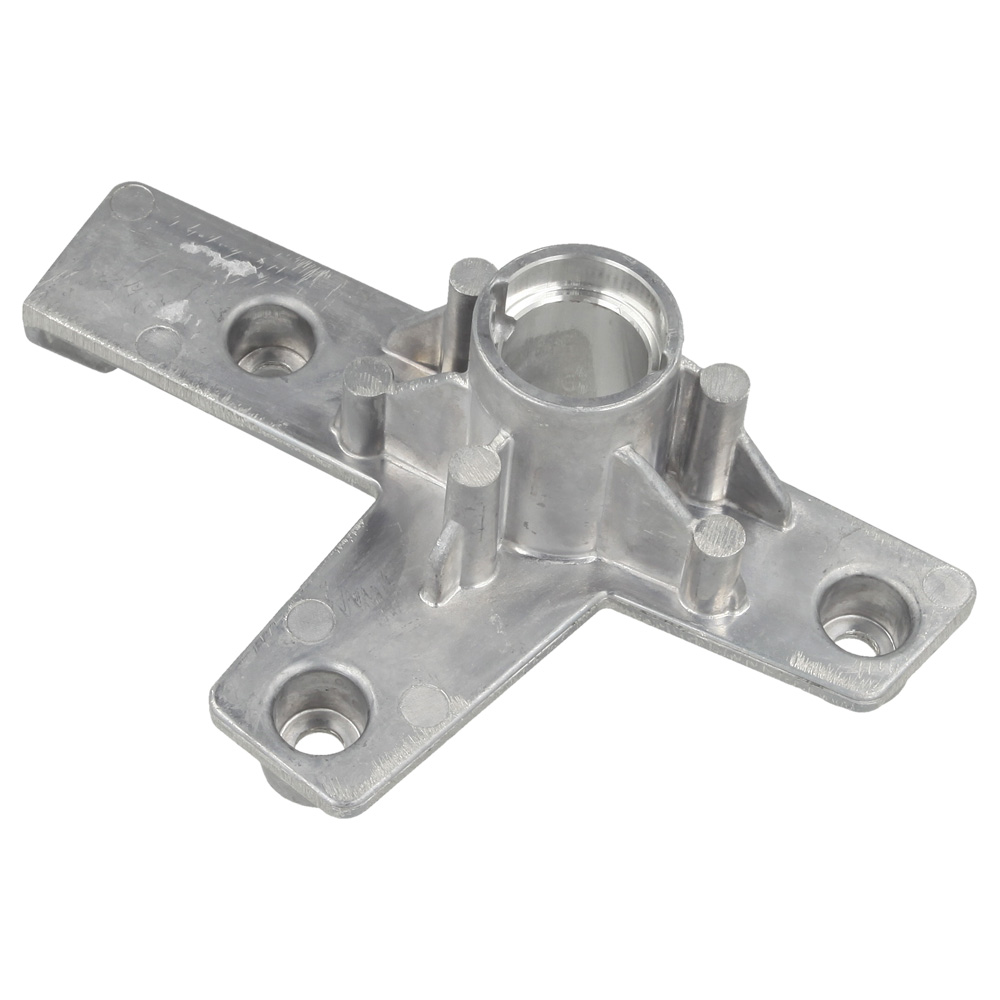

38	HA134-0377 In stock	Jack Shaft Bracket	Was £13.18 £10.98 Special Price £5.99 £4.99
45	HA111-8670 In stock	Axle- Support. Rear	£2.42 £2.02
48	HA134-0351 In stock	V Belt	£13.36 £11.13
49	HA09263 Available to backorder	Washer	£1.60 £1.33
50	HA134-2254 In stock	Spring Load Lever	Was £1.86 £1.55 Special Price £1.14 £0.95
51	HA134-2287 Available to backorder	Spring Counter Balance	£12.52 £10.43
52	HA134-2299 In stock	Screw-Hwh	Was £0.55 £0.46 Special Price £0.18 £0.15
53	HA480132 In stock	Spring-Torsion. Hoc	£1.14 £0.95
54	HA04020 In stock	Grip-Fix	£1.60 £1.33
56	HA09363 In stock	Screw-HH	Was £1.61 £1.34 Special Price £0.94 £0.78
57	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
58	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
59	HA09575 In stock	Screw-Taptite	£1.66 £1.38
62	HA134-4513 In stock	Retaining Collar. Drive Shaft	£0.90 £0.75
64	HA134-0254 In stock	Circlip-External. Hd	£0.60 £0.50
66	HA111-8216 In stock	Washer-Thrust	£1.12 £0.93
67	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
68	HA09365 In stock	Screw-Taptite	£1.68 £1.40
74	HA108-0015 In stock	Washer-Flat	£0.62 £0.52
75	HA134-2889 In stock	Bearing-Ball	£11.00 £9.17
76	HA134-2849 Available to backorder	Welded Jack Shaft Asm	£17.82 £14.85

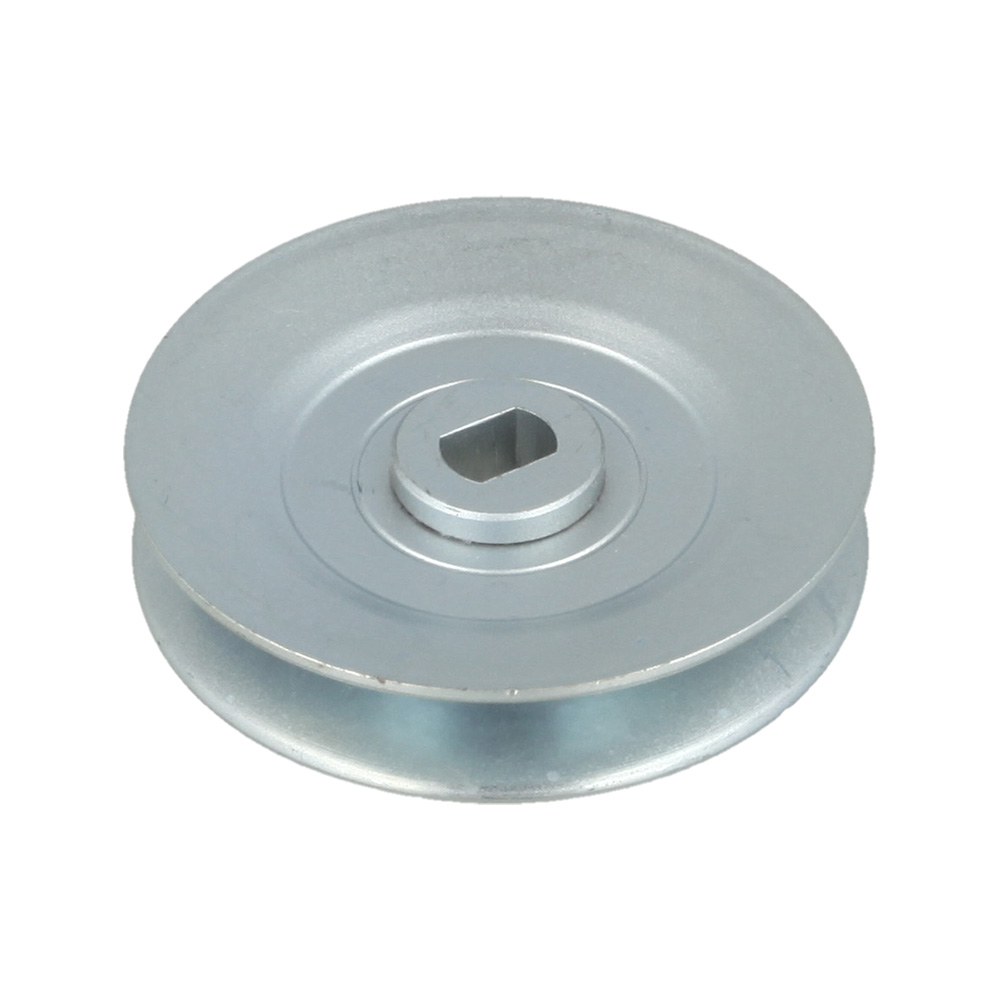

77	HA134-2851 Available to backorder	Split Pulley Upper	£9.84 £8.20

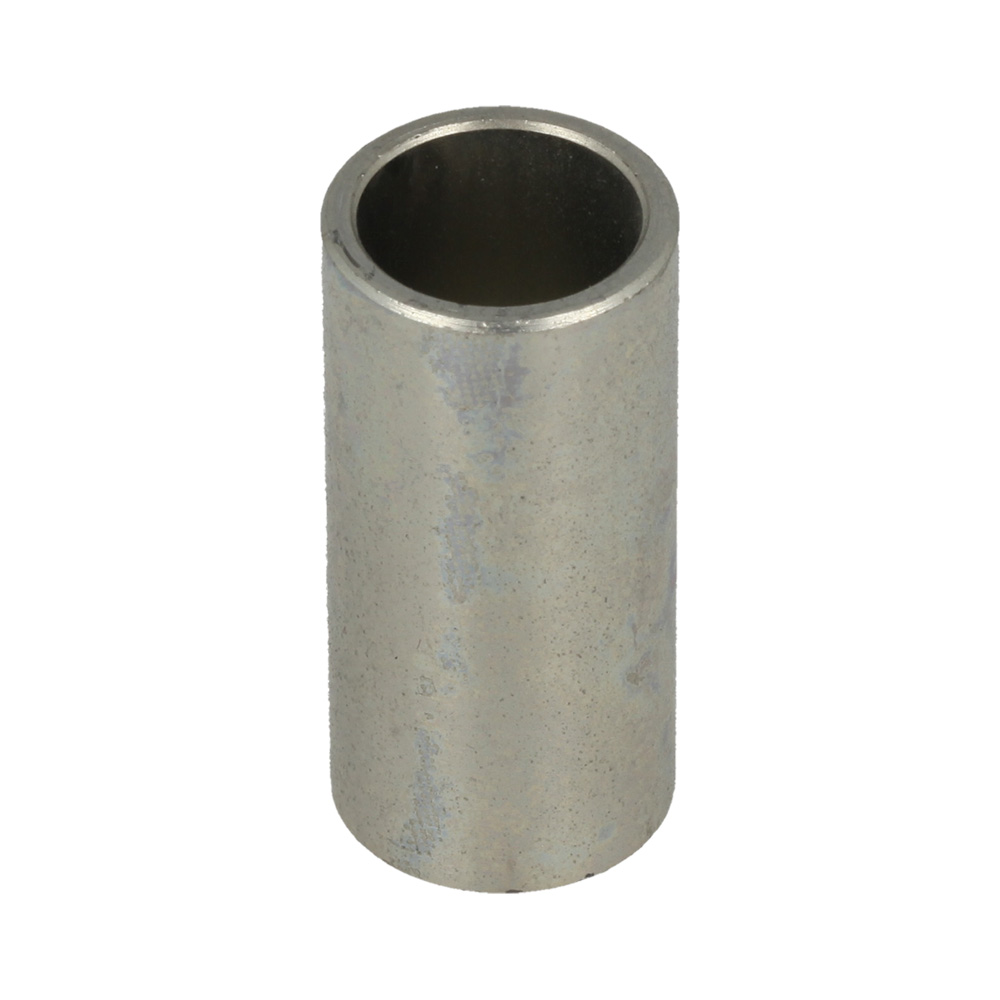

78	HA134-3284 In stock	Spacer Tube. Bearing	Was £1.37 £1.14 Special Price £1.19 £0.99
79	HAZWP1H000U In stock	Washer-Plain	Was £1.63 £1.36 Special Price £1.01 £0.84
80	HA110-4068 In stock	Washer-Plastic	£2.40 £2.00
81	HA134-4514 In stock	Pin. Roll. 3mm x 16mm	£0.47 £0.39
