Hayter Harrier 56 Autodrive VS - 574A (404000000 - 404999999) - Handlebar - Controls

Description

Hayter Harrier 56 Autodrive Variable Speed Mower - 574A

Serial No: 404000000 - 404999999

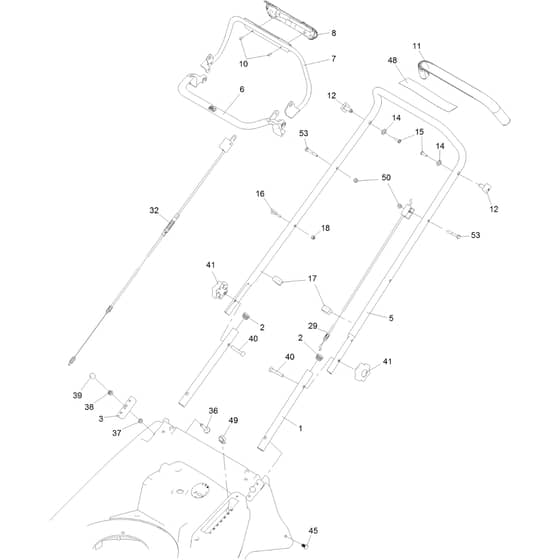

Handlebar - Controls - Parts Diagram

	Part No.	Details
1	HA111-9837-03 In stock	Handlebar Lower	£3.14 £2.62
2	HA300160 Available to backorder	Plug	£1.76 £1.47
3	HA340028 In stock	Plate-Clamp. Handlebar	£7.20 £6.00
5	HA134-3571-03 In stock	Upper Handlebar	£36.41 £30.34
6	HA111-9662 In stock	Opc Lever - Engine	£20.12 £16.77

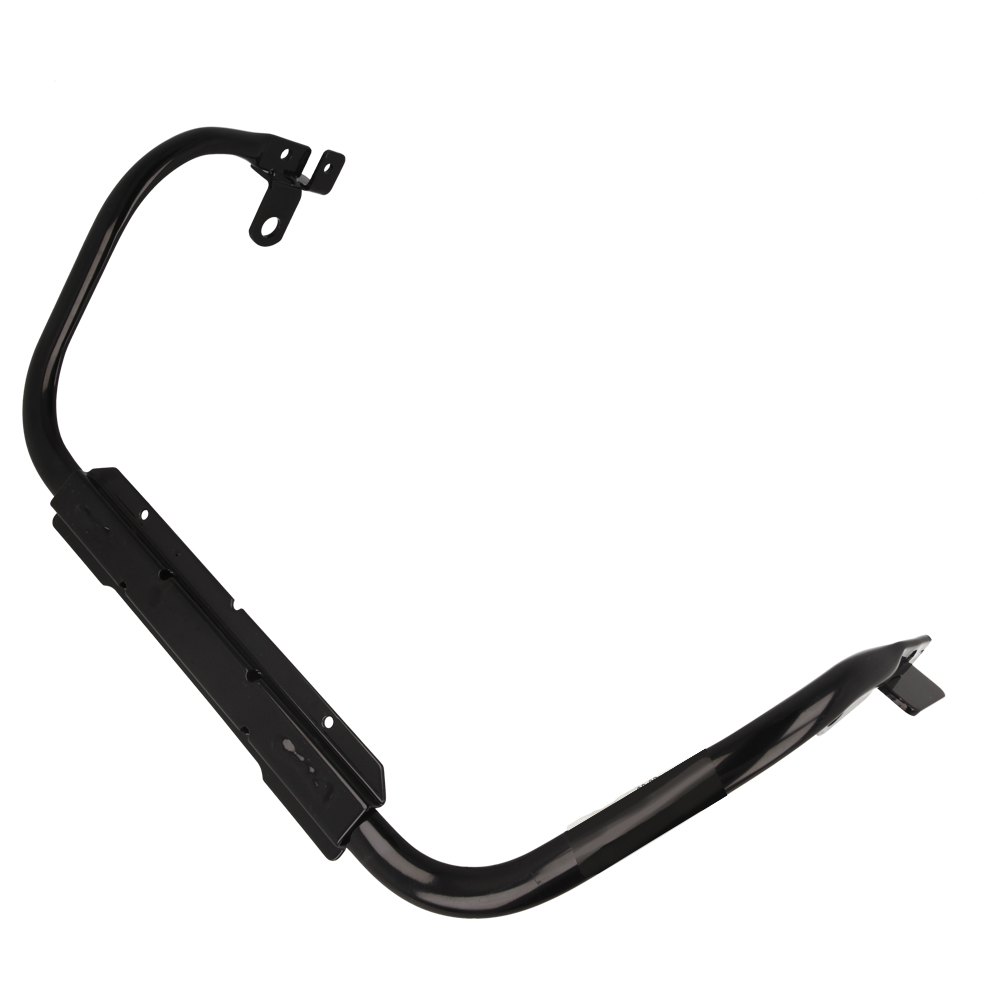

7	HA134-2600-03 Available to backorder	Clutch Lever	£19.96 £16.63

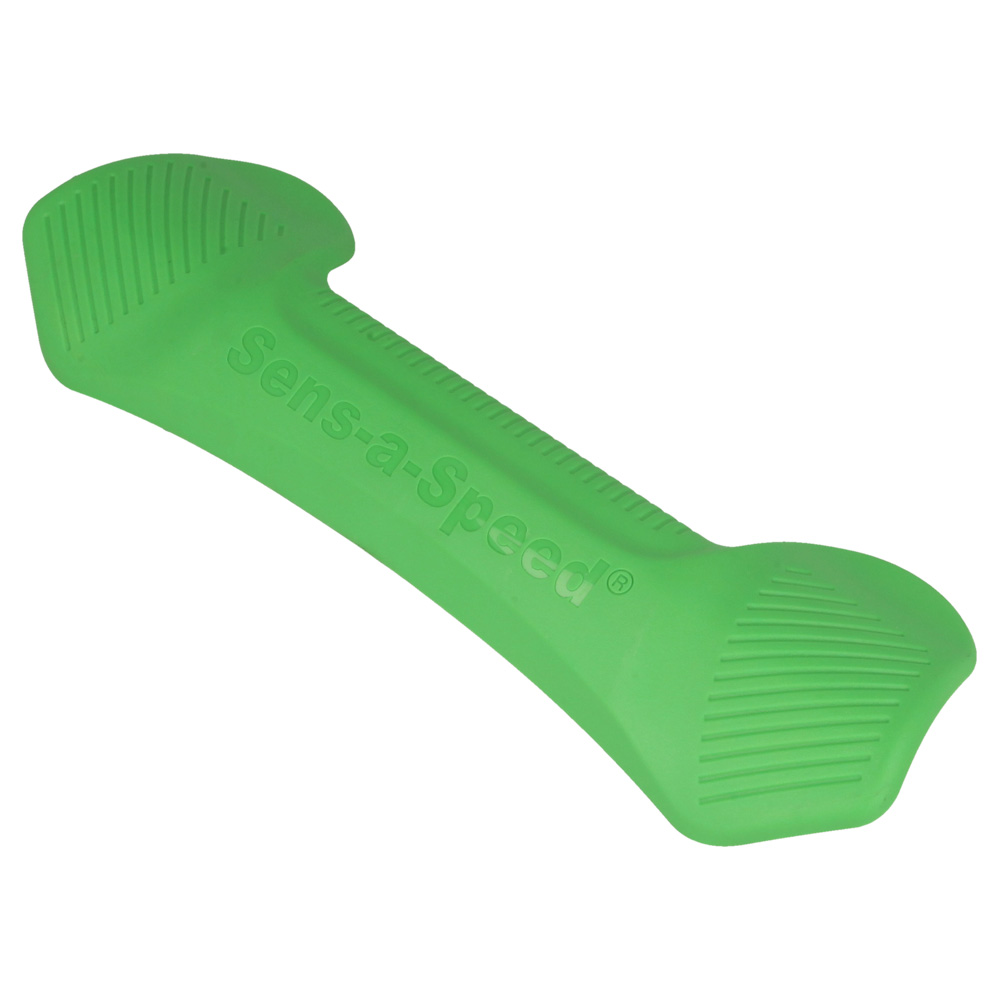

8	HA134-2628 In stock	Speed Control Bail	Was £7.86 £6.55 Special Price £5.71 £4.76

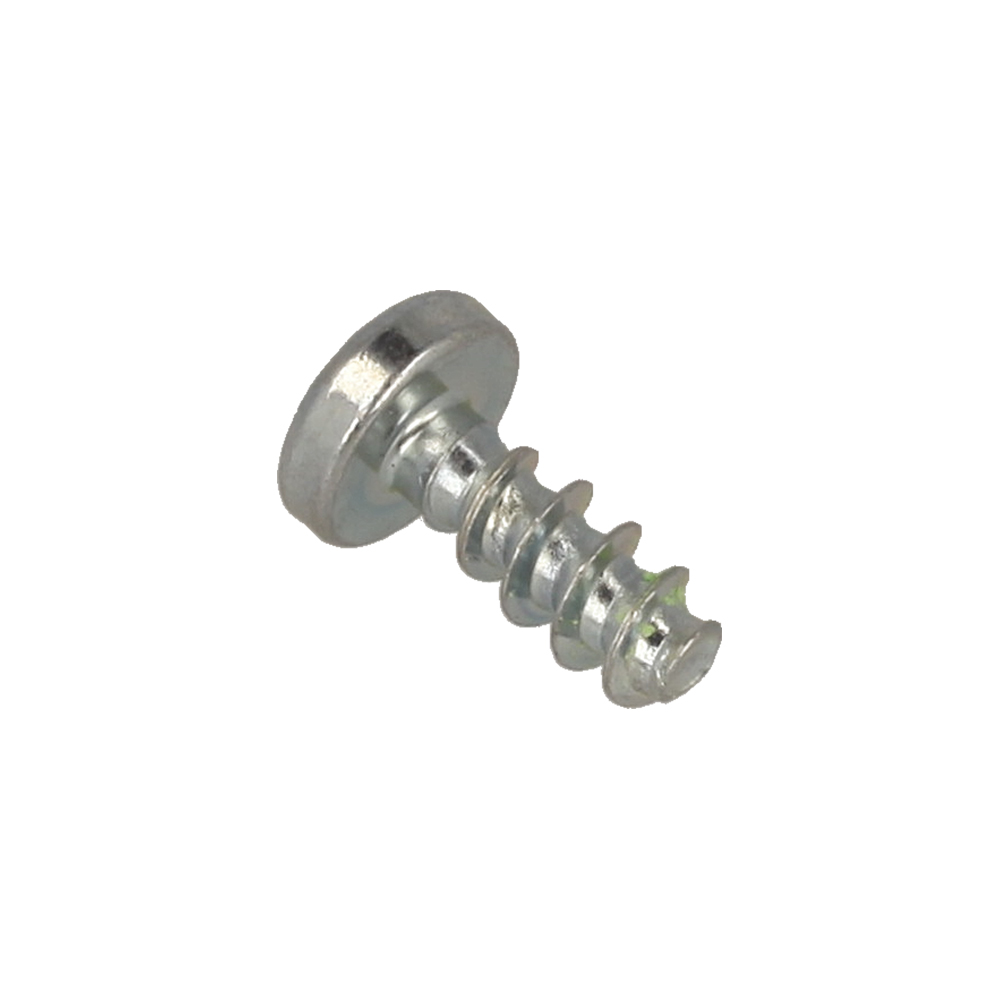

10	HA134-3192 Available to backorder	Screw	£0.31 £0.26
11	HA111-8716 In stock	"Handle. Soft Grip"	£13.12 £10.93
12	HA340182 In stock	Pin-Pivot	£1.84 £1.53
14	HA09688 In stock	Washer	£0.78 £0.65
15	HA09687 In stock	Screw	£1.84 £1.53
16	HA134-3569 Available to backorder	Guide-Rope	£3.89 £3.24
17	HA410037 In stock	Guide-Cable	£1.66 £1.38
18	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
29	HA134-2634 In stock	Cable Engine Brake Loncin	£8.11 £6.76
29	HA134-1800 In stock	Cable Engine Brake	£8.64 £7.20
32	HA134-1714 In stock	Clutch Cable	£15.62 £13.02
36	HA09379 Available to backorder	Bolt-Coach	£1.76 £1.47
37	HA04020 In stock	Grip-Fix	£1.76 £1.47
38	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
39	HAHY234051 In stock	Cap-Nut	£1.76 £1.47
40	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
41	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
45	HA111-9831 Available to backorder	Plastic Fir Tree Rivet 8.7mm	£1.46 £1.22
48	HA134-3328 Available to backorder	Tape - Toffee	£0.79 £0.66
49	HA111-8696 Available to backorder	Clip-Conduit. Twin	£1.14 £0.95
50	HA137-3088 Available to backorder	Nut-Hex	£0.48 £0.40
53	HA05010 Available to backorder	Bolt	£1.76 £1.47
