Hayter Harrier 56 Autodrive ES - 561F (561F280000001 - 561F290999999) - Upper Mainframe

Name: Hayter Harrier 56 Autodrive ES - 561F (561F280000001 - 561F290999999) - Upper Mainframe
SKU: harrier 56 autodrive es 561f upper mainframe-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 56 Autodrive ES - 561F (561F280000001 - 561F290999999) - Upper Mainframe

Description

Hayter Harrier 56 Autodrive Electric Start Mower - 561F

Serial No: 561F280000001 - 561F290999999

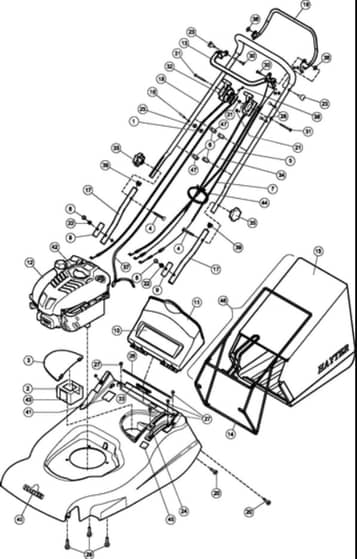

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA09544 Out of stock	Nut-Nyloc	£1.74 £1.45
2	HAHY412009 Out of stock	Battery 12V	£94.20 £78.50
3	HA560015 Out of stock	Cover-Battery	£3.20 £2.67
4	HAHY226024 In stock	Bolt-Handlebar	£1.79 £1.49
5	HA560041 In stock	Cable Engine Brake	£11.36 £9.47
6	HA410037 In stock	Guide-Cable	£1.63 £1.36
7	HA111-1469 In stock	Cable-Clutch	£20.38 £16.98
8	HAHY234051 Out of stock	Cap-Nut	£1.74 £1.45
9	HA340028 In stock	Plate-Clamp. Handlebar	£6.72 £5.60
11	HA111-1714 In stock	Deflector-Rear	£31.68 £26.40
13	HA111-9662 In stock	Brake Lever	£18.86 £15.72
14	HA111-1497-03 In stock	Frame-Grassbag	£59.04 £49.20
15	HA111-5339 In stock	Grassbag Fabric	£68.88 £57.40
16	HA305093 Out of stock	Guide Rope	£1.85 £1.54
17	HA111-1384-03 Out of stock	Handlebar-Lower	£9.54 £7.95
18	HA111-0519 Out of stock	Handlebar-Upper	£101.28 £84.40
19	HA111-1921-03 In stock	Lever-Clutch	£45.06 £37.55
20	HA09379 Out of stock	Bolt-Coach	£1.69 £1.41
21	HA09438 Out of stock	Nut-Nyloc	£1.81 £1.51
22	HA09441 Out of stock	Nut-Hex. Ni	£1.69 £1.41
23	HA340182 Out of stock	Pin-Pivot	£1.80 £1.50
24	HA560018 Out of stock	Ratchet-Plate. Hoc	£4.61 £3.84
25	HA09472 Out of stock	Washer-Plain	£1.55 £1.29
26	HA560017 Out of stock	Rod-Deflector	£5.39 £4.49
27	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
28	HA300144 Out of stock	Fastener Drive	£1.69 £1.41
29	HA09349 Out of stock	Screw	£1.69 £1.41
30	HA09687 In stock	Screw	£1.69 £1.41
31	HA09780 In stock	Setscrew	£1.96 £1.63
33	HA410030 In stock	Spring-Deflector	£6.36 £5.30
34	HA111-1194 In stock	Speed Control	£39.76 £33.13
35	HA480088 In stock	Knob-Handlebar	£5.64 £4.70
36	HA09688 In stock	Washer	£0.84 £0.70
38	HAHY6426 Out of stock	Key Ignition	£6.96 £5.80
39	HA300160 In stock	Plug	£1.69 £1.41
40	HA410087 In stock	Decal	£5.86 £4.88
43	HAHY412012 Out of stock	Foam Pad Top	£0.65 £0.54
44	HAHY3966 Out of stock	Tie-Cable	£1.63 £1.36
45	HA320006 In stock	Decal-Hoc	£1.81 £1.51
46	HA111-1551 Out of stock	Grassbag Asm	£128.88 £107.40
47	HAHY412008 Out of stock	Guide-Cable	£1.61 £1.34
