Hayter Harrier 56 Autodrive - 560F (560F280000001 - 560F290999999) - Upper Mainframe

Description

Hayter - 560F

Serial No: 560F280000001 - 560F290999999

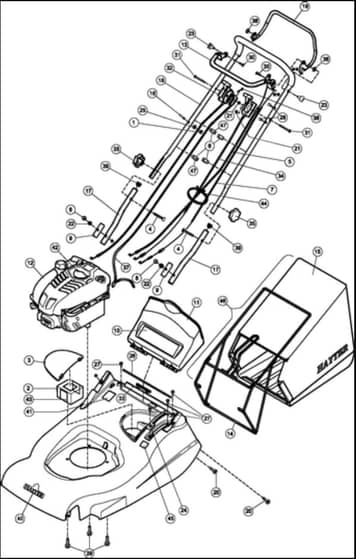

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
3	HA560015 Out of stock	Cover-Battery	£3.02 £2.52
4	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
5	HA111-0997 Out of stock	Cable-Engine. Brake	£18.23 £15.19
6	HA410037 In stock	Guide-Cable	£1.46 £1.22
7	HA111-1469 In stock	Cable-Clutch	£20.21 £16.84
8	HAHY234051 In stock	Cap-Nut	£1.55 £1.29
9	HA340028 In stock	Plate-Clamp. Handlebar	£6.59 £5.49
11	HA111-1714 Out of stock	Deflector-Rear	£29.89 £24.91
13	HA111-9662 In stock	Lever	£18.71 £15.59
14	HA111-1497-03 Out of stock	Frame-Grassbag	£58.55 £48.79
15	HA111-5339 In stock	Grass Bag	£60.24 £50.20
16	HA305093 Out of stock	Guide Rope	£1.62 £1.35
17	HA111-1384-03 Out of stock	Handlebar-Lower	£9.54 £7.95
18	HA111-0519 Out of stock	Handlebar-Upper	£95.52 £79.60
19	HA111-1921-03 In stock	Lever-Clutch	£44.64 £37.20
20	HA09379 Out of stock	Bolt-Coach	£1.69 £1.41
21	HA09438 In stock	Nut-Nyloc	£1.61 £1.34
22	HA09441 In stock	Nut-Hex. Ni	£1.69 £1.41
23	HA340182 In stock	Pin-Pivot	£1.61 £1.34
24	HA560018 Out of stock	Ratchet-Plate. Hoc	£4.61 £3.84
25	HA09472 In stock	Washer-Plain	£1.55 £1.29
26	HA560017 Out of stock	Rod-Deflector	£5.39 £4.49
27	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.72 £1.43
28	HA300144 Out of stock	Drive Fastener	£1.69 £1.41
29	HA09349 Out of stock	Screw	£1.69 £1.41
30	HA09687 In stock	Screw	£1.69 £1.41
31	HA09780 In stock	Setscrew	£1.96 £1.63
33	HA410030 Out of stock	Spring-Deflector	£6.25 £5.21
34	HA111-1194 In stock	Speed Control	£37.51 £31.26
35	HA480088 In stock	Knob-Handlebar	£5.63 £4.69
36	HA09688 In stock	Washer	£0.72 £0.60
39	HA300160 In stock	Plug	£1.69 £1.41
40	HA410087 In stock	Decal	£5.52 £4.60
44	HAHY3966 Out of stock	Tie-Cable	£1.56 £1.30
45	HA320006 In stock	Decal-Hoc	£1.69 £1.41
46	HA111-1551 Out of stock	Grassbag Asm	£135.36 £112.80
