Hayter Harrier 56 Autodrive - 560E (560E270000001 - 560E270999999) - Upper Mainframe

Name: Hayter Harrier 56 Autodrive - 560E (560E270000001 - 560E270999999) - Upper Mainframe
SKU: harrier 56 autodrive 560e upper mainframe-group
Price: 0.60 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 56 Autodrive - 560E (560E270000001 - 560E270999999) - Upper Mainframe

Description

Hayter - 560E

Serial No: 560E270000001 - 560E270999999

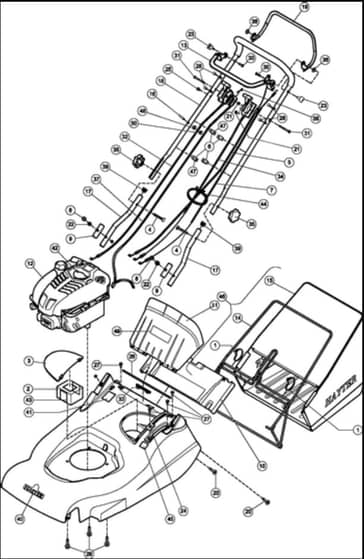

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA560015 Out of stock	Cover-Battery	£3.02 £2.52
4	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
5	HA111-0997 Out of stock	Cable-Engine. Brake	£18.23 £15.19
6	HA410037 In stock	Guide-Cable	£1.46 £1.22
7	HA111-1084 Out of stock	Clutch Cable	£19.45 £16.21
8	HAHY234051 Out of stock	Cap-Nut	£1.55 £1.29
9	HA340028 Out of stock	Plate-Clamp. Handlebar	£6.59 £5.49
10	HA560021 In stock	Cover_Grassbag	£14.86 £12.38
11	HA111-0633 Out of stock	Deflector	£19.94 £16.62
13	HA111-9662 In stock	Brake Lever	£18.71 £15.59
15	HA111-1022 Out of stock	Kit - Grassbag and Cable Ties	£73.92 £61.60
16	HA305093 Out of stock	Guide Rope	£1.62 £1.35
18	HA341029 Out of stock	Handlebar Upper	£88.80 £74.00
19	HA111-1921-03 In stock	Clutch Lever	£44.64 £37.20
20	HA09379 Out of stock	Bolt-Coach	£1.69 £1.41
21	HA09438 Out of stock	Nut-Nyloc	£1.61 £1.34
22	HA09441 Out of stock	Nut-Hex. Ni	£1.69 £1.41
23	HA340182 Out of stock	Pin-Pivot	£1.61 £1.34
24	HA560018 Out of stock	Ratchet-Plate. Hoc	£4.61 £3.84
25	HA341033 In stock	Fastener-Drive	£1.69 £1.41
26	HA560017 Out of stock	Rod-Deflector	£5.39 £4.49
27	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.72 £1.43
28	HA300144 Out of stock	Fastener Drive	£1.69 £1.41
29	HA09349 Out of stock	Screw	£1.69 £1.41
30	HA09687 In stock	Screw	£1.69 £1.41
31	HA09780 Out of stock	Setscrew	£1.96 £1.63
33	HA410030 Out of stock	Spring-Deflector	£6.25 £5.21
34	HA111-1194 In stock	Speed Control	£37.51 £31.26
35	HA480088 In stock	Knob-Handlebar	£5.63 £4.69
36	HA09688 In stock	Washer	£0.72 £0.60
39	HA300160 Out of stock	Plug	£1.69 £1.41
40	HA410087 In stock	Decal	£5.52 £4.60
44	HAHY3966 Out of stock	Tie-Cable	£1.56 £1.30
45	HA320006 In stock	Decal-Hoc	£1.69 £1.41
48	HA09472 Out of stock	Washer-Plain	£1.55 £1.29
50	HA09544 Out of stock	Nut-Nyloc	£1.56 £1.30
