Hayter Harrier 56 Autodrive - 560D (560D260000001 - 560D260999999) - Lower Mainframe

Description

Hayter - 560D

Serial No: 560D260000001 - 560D260999999

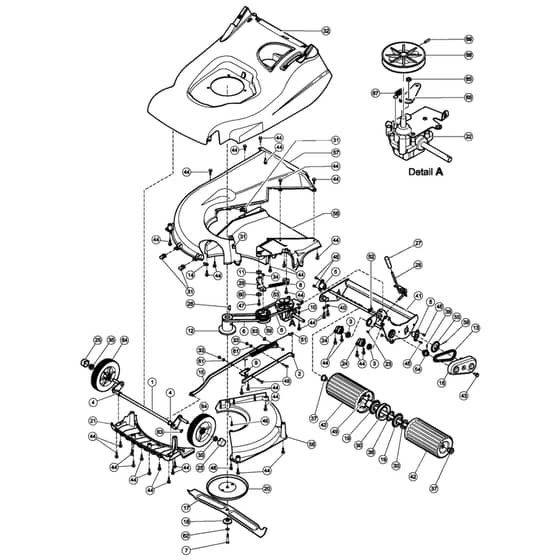

Lower Mainframe - Parts Diagram

	Part No.	Details
1	HA560008 Available to backorder	Axle-Front	£66.72 £55.60
2	HA560037 Available to backorder	Bar Spring Tension	£11.66 £9.72
3	HA132-9286 In stock	Bearing	£8.28 £6.90
4	HA410069 In stock	Bearing-Axle. Front	£1.84 £1.53
5	HA219102 In stock	Housing-Bearing. Roller	£14.33 £11.94
6	HA411024 In stock	Belt-Variator (520)	£11.40 £9.50
7	HA09122 In stock	Bolt-Unf	£1.84 £1.53
9	HA560029 Available to backorder	Bracket	£5.57 £4.64
10	HA340154 Available to backorder	Bushing	£6.00 £5.00
11	HA411031 In stock	Bushing-Pivot	£9.26 £7.72
12	HA560012 Available to backorder	Carrier Blade Boss	£93.84 £78.20
13	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£13.09 £10.91
14	HA560027 Available to backorder	Clamp	£4.60 £3.83
15	HA560028 Available to backorder	Rod-Connecting	£26.46 £22.05
16	HA411013 In stock	Cover-Drive	£5.02 £4.18
17	HA340015 In stock	Cutterbar	£49.75 £41.46
19	HA340150 In stock	Freewheel-Roller	£15.89 £13.24
20	HA410057W In stock	Friction Disc	£30.64 £25.53
21	HA560014 In stock	Fins-Front	£17.72 £14.77
22	HA411002 In stock	Gearbox	£112.48 £93.73
23	HA04020 In stock	Grip-Fix	£1.76 £1.47
24	HA410048 In stock	Housing-Pivot Bearing. Lh	£9.42 £7.85
25	HA219143 Available to backorder	Hub Cap	£7.26 £6.05
26	HA1662 In stock	Key-Woodruff	£1.66 £1.38
27	HA480134 In stock	Knob-Hoc	£2.36 £1.97
28	HA560046 Available to backorder	Lever-Hoc	£16.31 £13.59
29	HA411014 Available to backorder	Lever Variable Pulley	£11.20 £9.33
30	HA340163 In stock	Locknut	£28.92 £24.10
31	HA410076 In stock	Nut	£2.06 £1.72
33	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
34	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
35	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.81 £1.51
36	HA340157 In stock	Steel Spacer	£2.36 £1.97
37	HA340129 In stock	Bushing-Roller. Oilite	£10.93 £9.11
38	HA03997 In stock	Pin-Roll	£1.84 £1.53
39	HAHY03354 In stock	Pin-Spring. Selloc	£1.81 £1.51
40	HA219037 In stock	Plate-Securing	£1.80 £1.50
42	HA560031W In stock	Roller-Rear	£93.73 £78.11
43	HA09546 In stock	Screw-Taptite	£1.85 £1.54
44	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
45	HA09545 In stock	Screw-Taptite	£1.84 £1.53
46	HA09575 In stock	Screw-Taptite	£1.84 £1.53
47	HA09787 Available to backorder	Screw-Taptite	£1.60 £1.33
48	HAZDH1E020U Available to backorder	Screw-HH	£2.32 £1.93

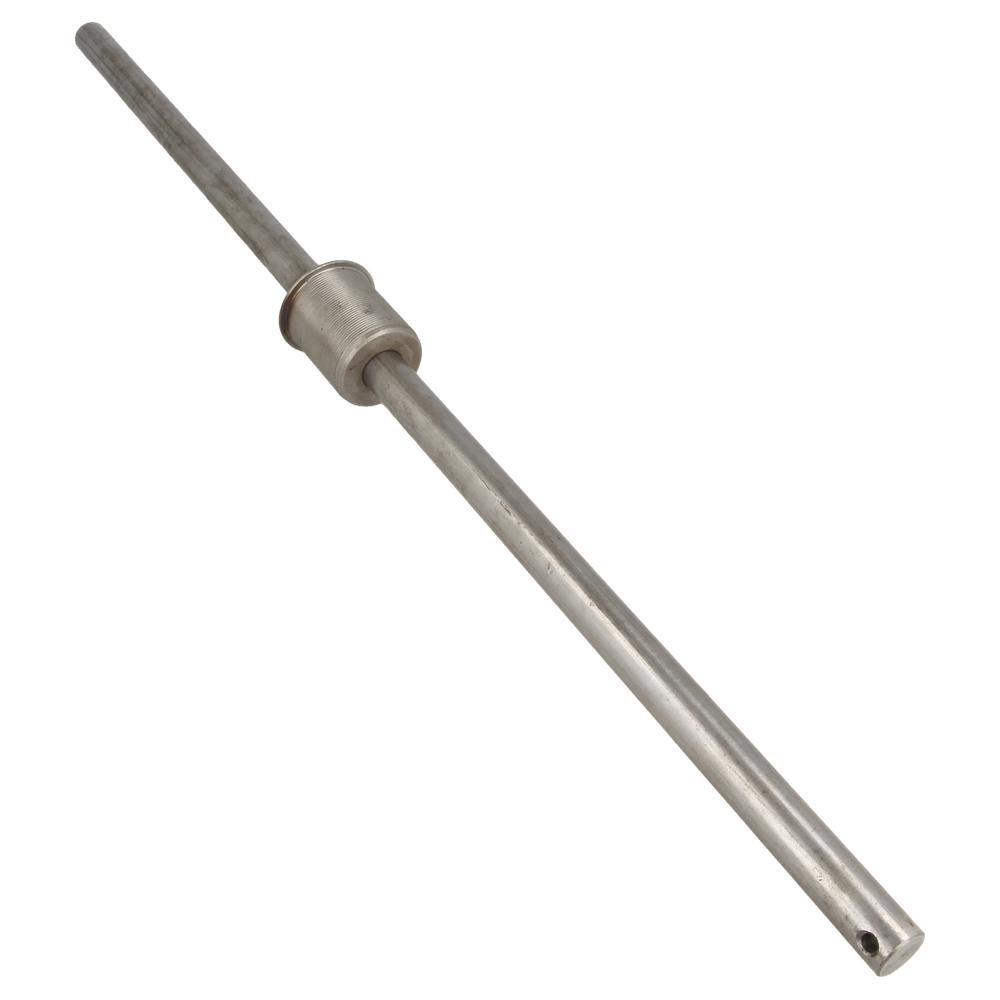

49	HA560034 Available to backorder	Shaft Roller Welded	£63.24 £52.70
50	HA340168 In stock	Shroud-Freewheel	£13.08 £10.90
51	HA410050 In stock	Spring-Counter Balance	£8.12 £6.77
52	HA480132 In stock	Spring-Torsion. Hoc	£1.27 £1.06
54	HA411011 In stock	Sprocket-Gearbox	£14.56 £12.13
55	HA411010 In stock	Sprocket 18T	£24.52 £20.43
56	HA560011-03 Available to backorder	Throwplate	£123.72 £103.10
57	HA111-1164 In stock	Underdeck Fixed	£79.33 £66.11
58	HA111-1163 In stock	Underdeck Removable	£22.79 £18.99
59	HA411001 In stock	Pulley Variator Asm	£65.80 £54.83
60	HA09270 In stock	Washer-Plain	£1.79 £1.49
61	HAZWP1E000U Available to backorder	Washer	£2.51 £2.09
62	HA09273 In stock	Washer-Spring	£1.84 £1.53
63	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
64	HA111-1250 In stock	Wheel-Ribbed	£35.56 £29.63
65	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
66	HA411020 Available to backorder	Clutch Lever	£7.78 £6.48
67	HA411021 Available to backorder	Spring	£2.20 £1.83
68	HA411019 In stock	Pulley	£16.69 £13.91
69	HA411023 In stock	Pin	£1.76 £1.47
