Hayter Harrier 56 AD - 340C (340C001001 - 340C099999) - Mainframe Assembly

Description

Hayter Harrier 56 Autodrive Mower - 340C

Serial No: 340C001001 - 340C099999

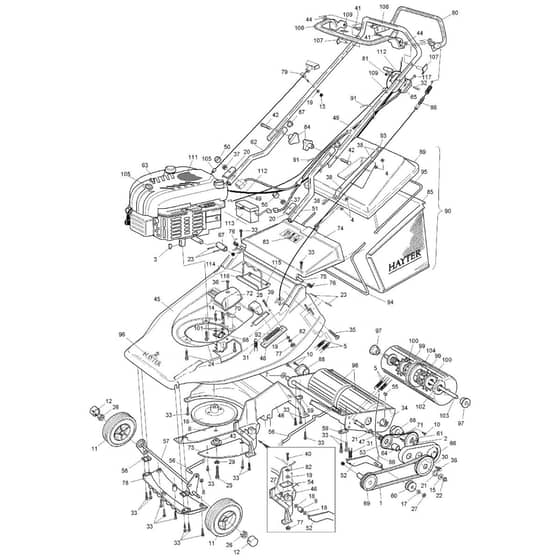

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA340049 In stock	Belt	£22.43 £18.69
2	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
3	HA1662 In stock	Key-Woodruff	£1.46 £1.22
4	HA09257 Out of stock	Washer	£1.63 £1.36
5	HA5421 Out of stock	Spring Rear Axle Tension	£2.86 £2.38
6	HA340015 In stock	Cutterbar	£49.33 £41.11
8	HA04020 In stock	Grip-Fix	£1.62 £1.35
9	HAHY4452 In stock	Bush	£3.41 £2.84
10	HA09545 In stock	Screw-Taptite	£1.62 £1.35
11	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
12	HA219143 Out of stock	Hub Cap	£7.26 £6.05
13	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
14	HA09575 In stock	Screw-Taptite	£1.62 £1.35
15	HA02575 In stock	Washer	£1.63 £1.36
17	HA09266 Out of stock	Washer-Plain	£1.44 £1.20
18	HA09280 Out of stock	Washer-Plain	£1.56 £1.30
19	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
20	HA340028 In stock	Plate-Clamp. Handlebar	£6.26 £5.22
21	HA02708 In stock	Circlip Ext 3/4"	£1.56 £1.30
22	HA03096 In stock	Circlip	£1.63 £1.36
23	HA03997 In stock	Pin-Roll	£1.62 £1.35
24	HA09349 Out of stock	Screw	£1.60 £1.33
25	HA09116 Out of stock	Screw Hex Hd 3/8 Unf x11/4	£1.63 £1.36
26	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
27	HA0201086 In stock	Washer-Starlock	£1.62 £1.35
28	HA330053 Out of stock	Cover	£5.60 £4.67
29	HA09273 In stock	Washer-Spring	£1.62 £1.35
31	HA1246 Out of stock	Spring Clutch Shoe Return	£3.24 £2.70
32	HA09780 Out of stock	Setscrew	£1.87 £1.56
33	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.63 £1.36
35	HA09379 Out of stock	Bolt-Coach	£1.62 £1.35
36	HA09546 Out of stock	Screw-Taptite	£1.64 £1.37
37	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
38	HA09320 Out of stock	Rivet	£1.63 £1.36
39	HA09668 Out of stock	Bolt-Coach	£1.56 £1.30
40	HA09547 Out of stock	Screw-HH	£1.63 £1.36
41	HA09687 In stock	Screw	£1.62 £1.35
42	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
43	HA4014 Out of stock	Drag Plate	£11.52 £9.60
44	HA09688 In stock	Washer	£0.68 £0.57
45	HA340205V Out of stock	Mainframe Assembly	£378.97 £315.81
47	HA219095 Out of stock	Idler Sprocket Sleeve	£21.82 £18.18
48	HA340102 Out of stock	Ratchet Plate	£32.80 £27.33
49	HA341031 In stock	OPC Cable	£9.34 £7.78
50	HAHY234051 In stock	Cap-Nut	£1.56 £1.30
51	HA340103 Out of stock	Lower Handlebar	£11.80 £9.83
52	HAHY219023 Out of stock	Lever Jockey Assy	£56.76 £47.30
53	HA219106 In stock	Sprocket 10T	£12.89 £10.74
56	HA340014 Out of stock	Connecting Rod	£8.53 £7.11
57	HA340020 Out of stock	Front Axle Assy	£52.31 £43.59
58	HA219036 Out of stock	Moulding - Front Axle Bearing	£4.94 £4.12
59	HA219037 Out of stock	Plate-Securing	£1.62 £1.35
60	HA219156 Out of stock	Pulley - Jockey	£1.68 £1.40
61	HA219051 Out of stock	17T Sprocket Assy	£22.31 £18.59
62	HA340104 Out of stock	Handlebar - Lower Rh	£11.40 £9.50
63	HA486040 Out of stock	Engine - Compliance A.P.T.O.	£404.50 £337.08
64	HA219053 Out of stock	Sleeve Sprocket Tube	£9.47 £7.89
67	HA340109 Out of stock	Coupling	£46.19 £38.49
68	HA219060 Out of stock	Moulding Bearing Housing	£9.00 £7.50
70	HA219064 Out of stock	Bracket Belt Guide	£8.27 £6.89
71	HA219054 In stock	Chain 30 Pitch 1/2" x 1/8"	£14.45 £12.04
72	HA340206 Out of stock	Cover	£19.45 £16.21
73	HA340051 Out of stock	Underguard	£17.58 £14.65
74	HA340022 Out of stock	Rear Deflector	£72.66 £60.55
76	HA340052 Out of stock	Spring	£5.98 £4.98
77	HA09437 Out of stock	Nut	£1.63 £1.36
78	HA340190 Out of stock	Insert - Front Fin	£14.21 £11.84
79	HA305093 Out of stock	Rope Guide	£1.62 £1.35
80	HA111-1921-03 In stock	Clutch Lever	£42.52 £35.43
81	HA09438 In stock	Nut-Nyloc	£1.62 £1.35
82	HA09474 Out of stock	Washer-Spring	£1.56 £1.30
83	HA111-0083 Out of stock	Decal	£2.30 £1.92
84	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
85	HA340071 Out of stock	Grassbag - Fabric	£48.90 £40.75
86	HA341034 In stock	Clutch Cable	£21.59 £17.99
87	HA300160 Out of stock	Plug	£1.62 £1.35
88	HA219102 In stock	Housing-Bearing. Roller	£12.67 £10.56
89	HA340072 Out of stock	Cover - Grassbag	£80.84 £67.37
90	HA340070 Out of stock	Grassbag Assy	£232.14 £193.45
91	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
93	HA340073 Out of stock	Handle - Grassbag	£19.94 £16.62
94	HA340075 Out of stock	Frame - Grassbag Assembly	£46.50 £38.75
95	HA340078 Out of stock	Â??Uâ?? Tube	£15.92 £13.27
96	HA410087 In stock	Decal	£4.79 £3.99
97	HA340129 In stock	Bushing-Roller. Oilite	£9.67 £8.06
98	HA340139 Out of stock	Roller - Assembly	£81.83 £68.19
99	HA340157 In stock	Spacer	£2.09 £1.74
100	HA340150 In stock	Freewheel-Roller	£14.05 £11.71
101	HA340154 Out of stock	Bushing	£5.66 £4.72
102	HA340163 In stock	Locknut	£25.60 £21.33
103	HA340162 Out of stock	Roller Shaft	£59.48 £49.57
104	HA340168 In stock	Shroud-Freewheel	£11.57 £9.64
105	HA410064 Out of stock	Decal - Blade Of Grass	£9.37 £7.81
106	HA111-9662 In stock	OPC lever	£17.81 £14.84
107	HA340182 In stock	Pin-Pivot	£1.62 £1.35
108	HA341029 Out of stock	Handlebar Upper	£91.08 £75.90
109	HA300144 Out of stock	Drive Fastener	£1.62 £1.35
112	HA341028 Out of stock	Throttle Control	£35.09 £29.24
113	HA412009 Out of stock	Battery 12V	£66.48 £55.40
114	HA220045 Out of stock	Clip - Battery	£7.68 £6.40
116	HAHY220046 Out of stock	Bracket Battery	£10.80 £9.00
117	HAHY6426 Out of stock	Key Pair - Electric Start	£6.95 £5.79
