Hayter Harrier 48 Pro Autodrive FS - 479B (406000000 - 406999999) - Engine - Blade

Hayter Harrier 48 Pro Autodrive FS - 479B (406000000 - 406999999) - Engine - Blade
Hayter Harrier 48 Pro Autodrive FS - 479B (406000000 - 406999999) - Engine - Blade

Description

Hayter Harrier 48 Pro Autodrive Fixed Speed Mower - 479B

Serial No: 406000000 - 406999999

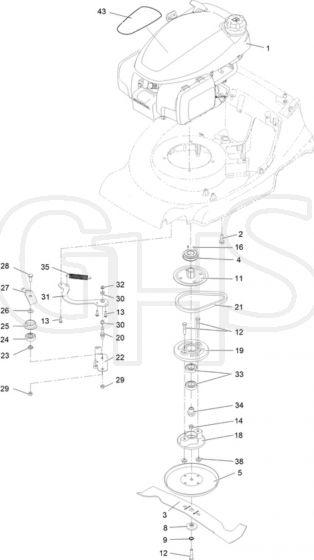

Engine - Blade - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  3 Cutterbar. 48Cm HA134-2670
Cutterbar. 48Cm
 In stock
£36.41 £30.34

  4 Pulley Fixed Speed HA134-1763
Pulley Fixed Speed
 In stock
£31.73 £26.44

  5 Disc-Friction HA410057W
Disc-Friction
 In stock
£28.68 £23.90

  8 Spacer-Distance. Cutterbar HA134-3973
Spacer-Distance. Cutterbar
 Out of stock
£10.12 £8.43

  9 Washer-Lock HA134-3191
Washer-Lock
 In stock
£0.65 £0.54

  11 Pulley Half Drive BBC HA134-4249
Pulley Half Drive BBC
 In stock
£46.03 £38.36

  12 Bolt. Unf 3/8 x 1.3/4 (Grade 8. Rohs) HA134-1681
Bolt. Unf 3/8 x 1.3/4 (Grade 8. Rohs)
 In stock
£2.58 £2.15

  13 Screw-Taptite HA09575
Screw-Taptite
 In stock
£1.80 £1.50

  14 Nut-Retaining HA134-2648
Nut-Retaining
 Out of stock
£8.88 £7.40

  16 Grubscrew HA134-1875
Grubscrew
 Out of stock
£0.46 £0.38

  18 Spacer-Blade. BBC HA134-2252
Spacer-Blade. BBC
 In stock
£15.48 £12.90

  19 Drum-BBC HA134-2590
Drum-BBC
 Out of stock
£33.36 £27.80

  20 Bolt-Shoulder HA107-0759
Bolt-Shoulder
 Out of stock
£12.36 £10.30

  21 Belt HA110-1790
Belt
 In stock
£35.87 £29.89

  22 Plate-Brake HA125-1063
Plate-Brake
 In stock
£27.24 £22.70

  23 Spacer-Bearing HA107-0758
Spacer-Bearing
 Out of stock
£3.37 £2.81

  24 Bearing-Ball HA38-7820
Bearing-Ball
 Out of stock
£14.21 £11.84

  25 Retainer-Belt HA138-3217
Retainer-Belt
 Out of stock
£3.34 £2.78

  26 Spacer HA605256
Spacer
 In stock
£2.20 £1.83

  27 Plate-Tensioner HA111-8855
Plate-Tensioner
 In stock
£3.17 £2.64

  28 Screw-Carr HA119-4162
Screw-Carr
 In stock
Was £1.85 £1.54 Special Price £1.15 £0.96

  29 Locknut HA603773
Locknut
 In stock
£2.39 £1.99

  30 Bushing-Flange HA130-2377
Bushing-Flange
 In stock
£2.34 £1.95

  31 BBC Anchor Plate Assy HA134-3773
BBC Anchor Plate Assy
 In stock
Was £14.60 £12.17 Special Price £8.95 £7.46

  32 Nut-Hf HA137-3005
Nut-Hf
 In stock
£0.50 £0.42

  33 Bearing HA134-0325
Bearing
 Out of stock
£23.46 £19.55

  34 BBC Shaft Nut HA111-8895
BBC Shaft Nut
 Out of stock
£8.06 £6.72

  35 Spring-Tension. Brake HA108-3792
Spring-Tension. Brake
 In stock
£13.61 £11.34

  38 Nut-Flange. Lock HA139-1706
Nut-Flange. Lock
 In stock
£4.20 £3.50

  43 Decal Engine Code479A HA134-1811
Decal Engine Code479A
 In stock
£7.46 £6.22


Description

Hayter Harrier 48 Pro Autodrive Fixed Speed Mower - 479B

Serial No: 406000000 - 406999999

Engine - Blade - Parts Diagram
