Hayter Harrier 48 Pro Autodrive FS - 479B (405000000 - 405999999) - Handlebar - Controls

Description

Hayter Harrier 48 Pro Autodrive Fixed Speed Mower - 479B

Serial No: 405000000 - 405999999

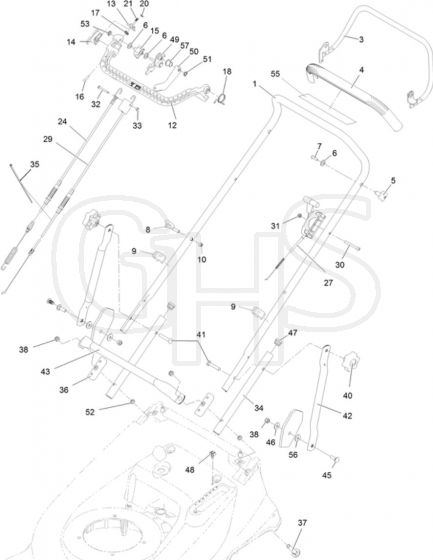

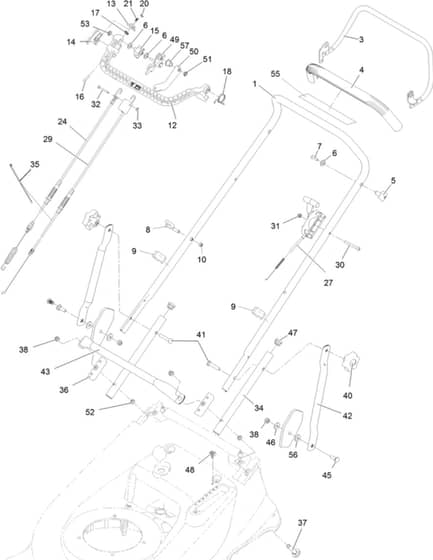

Handlebar - Controls - Parts Diagram

	Part No.	Details
1	HA134-3571-03 In stock	Upper Handlebar	£36.41 £30.34
3	HA111-9381-03 Available to backorder	Clutch Lever	£18.38 £15.32
4	HA111-8716 In stock	"Handle. Soft Grip"	£13.12 £10.93
5	HA340182 In stock	Pin-Pivot	£1.84 £1.53
6	HA09688 In stock	Washer	£0.78 £0.65
7	HA09687 In stock	Screw	£1.84 £1.53
8	HA134-3569 Available to backorder	Guide-Rope	£3.89 £3.24
9	HA111-8702 Available to backorder	Cable Clip Rope Guide	£0.62 £0.52
10	HA410037 In stock	Guide-Cable	£1.66 £1.38
12	HA134-2608 In stock	Arm-Bail	£20.18 £16.82
13	HA111-8903 Available to backorder	Lever-Catch	£2.40 £2.00
14	HA134-2609 In stock	Bcc Latch Button	£0.84 £0.70
15	HA111-8990 Available to backorder	Clamp-Bar	£0.74 £0.62
16	HA111-8908 Available to backorder	Latch-Pin	£1.97 £1.64
17	HA111-8906 Available to backorder	Lever-Bail. Spring	£0.83 £0.69
18	HA134-2284 In stock	Lever-Bail Arm. Spring	£4.96 £4.13
20	HA111-0718 Available to backorder	Fastener-Starlock. Push-On	£1.61 £1.34
21	HA134-2027 Available to backorder	Clip-Tree	£0.65 £0.54
24	HA134-2297 In stock	Cable BBC	£46.96 £39.13
27	HA134-0306 In stock	Control Throttle	£26.78 £22.32
29	HA134-0312 In stock	Cable Clutch (29A)	£12.24 £10.20
29	HA411035 In stock	Cable Holder (29B)	£2.23 £1.86
30	HA09780 Available to backorder	Setscrew	£1.86 £1.55
31	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
32	HA05010 Available to backorder	Bolt	£1.76 £1.47
33	HA137-3088 Available to backorder	Nut-Hex	£0.48 £0.40
34	HA111-9837-03 In stock	Handlebar Lower	£3.14 £2.62
35	HAHY3966 Available to backorder	Tie-Cable	£1.66 £1.38
36	HA340028 In stock	Plate-Clamp. Handlebar	£7.20 £6.00
37	HA134-3353 Available to backorder	Bolt-Coach	£1.16 £0.97
38	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
40	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
41	HA09785 In stock	Bolt	£4.33 £3.61
42	HA111-8688-03 Available to backorder	Brace Handlebar	£5.81 £4.84
43	HA111-8864-03 Available to backorder	Rear Lifting Handle	£8.74 £7.28
45	HA09373 Available to backorder	Bolt-Coach	£1.66 £1.38
46	HA09267 Available to backorder	Washer-Plain	£1.76 £1.47
47	HA300160 Available to backorder	Plug	£1.76 £1.47
48	HA111-8696 Available to backorder	Clip-Conduit. Twin	£1.14 £0.95
49	HA134-2660 Available to backorder	Anchor Plate Welded	£15.13 £12.61
50	HA134-2662 Available to backorder	BBC Linkage Assembly	£9.06 £7.55
51	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
52	HA04020 In stock	Grip-Fix	£1.76 £1.47
53	HA134-3208 In stock	Starlock-Domed	£0.60 £0.50
55	HA134-3328 Available to backorder	Tape - Toffee	£0.79 £0.66
56	HAZWQ1J000U In stock	Washer-Plain	£2.46 £2.05
57	HA134-1761 Available to backorder	Bush. Igus	£1.10 £0.92
