Hayter Harrier 48 Pro Autodrive - 486C (486C001001 - 486C099999) - Main Assembly

Description

Hayter - 486C

Serial No: 486C001001 - 486C099999

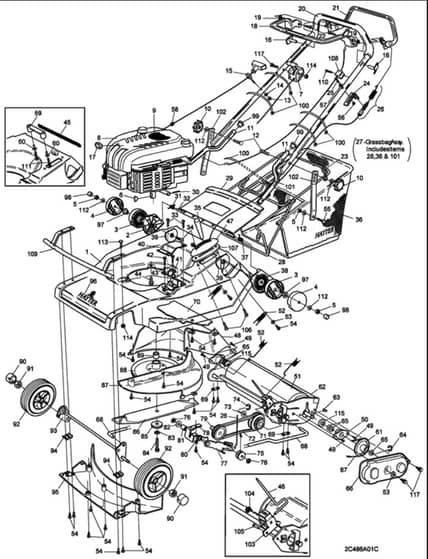

Main Assembly - Parts Diagram

	Part No.	Details
3	HA480084W In stock	BOSS CLAMP INNER	£10.92 £9.10
4	HA480085W Available to backorder	BOSS CLAMP OUTER	£8.36 £6.97
5	HA09441 Available to backorder	NUT-HEX, NI	£1.76 £1.47
6	HA1662 In stock	KEY-WOODRUFF	£1.66 £1.38
7	HA486031 Available to backorder	THROTTLE CONTROL TYPE T60	£35.11 £29.26
10	HA480088 In stock	KNOB-HANDLEBAR	£5.87 £4.89
11	HA480168W Available to backorder	HANDLEBAR LOWER	£16.94 £14.12
12	HA09785 In stock	BOLT	£4.33 £3.61
13	HA09544 In stock	NUT-NYLOC	£1.76 £1.47
14	HA09472 Available to backorder	WASHER-PLAIN	£1.55 £1.29
15	HA305093 In stock	GUIDE-ROPE	£1.87 £1.56
16	HA340182 In stock	PIN-PIVOT	£1.84 £1.53
17	HA410064 Available to backorder	DECAL GRASS BLADE	£9.37 £7.81
18	HA111-9662 In stock	OPC LEVER - ENGINE	£20.12 £16.77
19	HA09688 In stock	WASHER-NYLON	£0.78 £0.65
20	HA341029 Available to backorder	HANDLEBAR UPPER	£88.08 £73.40
21	HA111-1921-03 In stock	LEVER-CLUTCH	£46.68 £38.90
22	HA09687 In stock	SCREW	£1.84 £1.53
23	HA480123 Available to backorder	CABLE GUIDE SPRING	£2.71 £2.26
25	HA09704 Available to backorder	SCREW[M4*35]	£1.63 £1.36
26	HA480094 In stock	CABLE CLUTCH	£19.12 £15.93
27	HA486021 Available to backorder	GRASSBAG	£130.32 £108.60
28	HA486018W In stock	FRAME GRASSBAG	£43.49 £36.24
29	HA480140 In stock	DEFLECTOR REAR	£23.64 £19.70
30	HA03997 In stock	PIN-ROLL	£1.84 £1.53
31	HA480131 In stock	SPRING DEFLECTOR RH	£4.57 £3.81
32	HA480062 Available to backorder	ROD DEFLECTOR	£42.54 £35.45
34	HA09549 Available to backorder	BOLT	£1.63 £1.36
35	HA480134 In stock	KNOB-HOC	£2.36 £1.97
36	HA486019 In stock	FABRIC GRASSBAG ASSEMBLY	£61.79 £51.49
37	HA480130 In stock	SPRING DEFLECTOR LH	£5.24 £4.37
38	HA480082V Available to backorder	LOCATION PLATE LH	£7.16 £5.97
41	HA480050 Available to backorder	BEARING APTO	£11.60 £9.67
42	HA09575 In stock	SCREW	£1.84 £1.53
43	HA340154 Available to backorder	BUSHING	£6.00 £5.00
44	HA09349 In stock	SCREW-TAPTITE, UNC	£1.84 £1.53
46	HA480128 Available to backorder	LEVER HOC	£8.65 £7.21
47	HA480147 Available to backorder	RATCHET HOC MOULDING	£11.46 £9.55
49	HA09545 In stock	SCREW-TAPTITE	£1.84 £1.53
50	HA219102 In stock	HOUSING-BEARING, ROLLER	£14.33 £11.94
52	HA480133 Available to backorder	SPRING TENSION REAR AXLE	£3.71 £3.09
53	HA09262 Available to backorder	WASHER	£1.74 £1.45
54	HA09365 In stock	SCREW M6 X 16 TAPTITE HEX HD	£1.84 £1.53
56	HA09657 Available to backorder	NUT	£1.63 £1.36
57	HA09658 Available to backorder	WASHER	£1.63 £1.36
58	HAMU42189 Available to backorder	STOP ROPE (HB)	£5.00 £4.17
59	HA486016 Available to backorder	HANDLE BRIDGE C/W PLUGS	£18.43 £15.36
60	HA03469 Available to backorder	WASHER-SPRING	£1.63 £1.36
61	HA219051 Available to backorder	SPROCKET 17T ASSY	£22.31 £18.59
64	HA1428 Available to backorder	CIRCLIP	£1.76 £1.47
65	HA480097 In stock	WASHER	£1.81 £1.51
66	HA480206 Available to backorder	TRANSMISSION COVER	£24.97 £20.81
67	HA480209 In stock	CHAIN 081 1/2"P*36 INCL LINK	£11.90 £9.92
69	HA219037 In stock	PLATE-SECURING	£1.80 £1.50
70	HA480017W Available to backorder	FILLER THROWPLATE	£22.00 £18.33
71	HA480208 Available to backorder	PULLEY	£83.16 £69.30
72	HA486035 Available to backorder	BELT	£15.18 £12.65
73	HA02575 Available to backorder	WASHER	£1.68 £1.40
74	HA03096 In stock	CIRCLIP EXT 1/2"	£1.75 £1.46
75	HA219156 In stock	PULLEY JOCKEY (MOULDED)	£1.85 £1.54
76	HA0201086 In stock	WASHER-STARLOCK	£1.84 £1.53
78	HA480116 Available to backorder	GUIDE BELT	£5.94 £4.95
79	HA486034 Available to backorder	PULLEY DRIVE APTO	£60.19 £50.16
80	HA480066 Available to backorder	SPRING TORSION IDLER	£9.29 £7.74
81	HAHY4452 In stock	BUSH 1/25/83/4	£3.86 £3.22
82	HA09280 Available to backorder	WASHER-PLAIN	£1.55 £1.29
83	HA09273 In stock	SPRING WASHER	£1.84 £1.53
84	HA09121 Available to backorder	BOLT	£1.74 £1.45
86	HA480149 In stock	BLADE	£29.04 £24.20
89	HA480072 Available to backorder	SPACER DIA 12* DIA 22*13	£6.95 £5.79
90	HA219143 Available to backorder	HUB CAP	£7.26 £6.05
91	HA4486 In stock	NUT	£1.81 £1.51
92	HA111-1250 In stock	WHEEL	£35.56 £29.63
93	HA219031 Available to backorder	AXLE FRONT	£53.36 £44.47
94	HA219036 In stock	MOULDING FRONT AXLE BEARING	£6.54 £5.45
95	HA480013 In stock	FRONT FIN INSERT	£18.44 £15.37
96	HA410087 In stock	DECAL	£6.24 £5.20
97	HA480086 Available to backorder	NUT M8 SHOULDERED	£8.11 £6.76
99	HA300160 Available to backorder	PLUG-TUBE	£1.76 £1.47
103	HA480157W Available to backorder	BRACKET HOC	£40.08 £33.40
104	HA480132 In stock	HOC SPRING	£1.27 £1.06
105	HA09336 Available to backorder	RIVET	£1.61 £1.34
106	HA09634 In stock	SCREW	£1.75 £1.46
107	HA480156 In stock	RATCHET PLATE	£22.14 £18.45
108	HA486007 Available to backorder	CABLE ENGINE BREAK	£9.91 £8.26
111	HA09368 Available to backorder	SCREW	£1.74 £1.45
112	HA09475 Available to backorder	WASHER	£1.76 £1.47
113	HA09668 Available to backorder	BOLT-COACH	£1.55 £1.29
114	HA09438 Available to backorder	NUT-NYLOC	£1.72 £1.43
