Hayter Harrier 48 Pro Autodrive - 486A (486A001001 - 486A099999) - Parts Assembly

Name: Hayter Harrier 48 Pro Autodrive - 486A (486A001001 - 486A099999) - Parts Assembly
SKU: harrier 48 pro autodrive psei1665 parts assembly-group
Price: 0.65 GBP
Availability: InStock

Part No. harrier 48 pro autodrive psei1665 parts assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 48 Pro Autodrive - 486A (486A001001 - 486A099999) - Parts Assembly

Description

Hayter - 486A

Serial No: 486A001001 - 486A099999

Parts Assembly - Parts Diagram

	Part No.	Details
3	HA480084W In stock	Clamp - Boss Inner	£10.92 £9.10
4	HA480085W Available to backorder	Clamp - Boss Outer	£8.36 £6.97
5	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
6	HA1662 In stock	Key-Woodruff	£1.66 £1.38
7	HA486031 Available to backorder	Throttle Control	£35.11 £29.26
10	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
11	HA480168W Available to backorder	Handlebar - Lower	£16.94 £14.12
12	HA09785 In stock	Bolt	£4.33 £3.61
13	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
14	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
15	HA305093 In stock	Guide Rope	£1.87 £1.56
16	HA340182 In stock	Pin-Pivot	£1.84 £1.53
18	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
19	HA09688 In stock	Washer	£0.78 £0.65
20	HA341029 Available to backorder	Handlebar Upper	£88.08 £73.40
21	HA111-1921-03 In stock	Lever-Clutch	£46.68 £38.90
22	HA09687 In stock	Screw	£1.84 £1.53
23	HA480123 Available to backorder	Cable Guide Spring	£2.71 £2.26
25	HA09704 Available to backorder	Screw Set	£1.63 £1.36
26	HA480094 In stock	Cable - Clutch	£19.12 £15.93
27	HA486021 Available to backorder	Grassbag - Assy	£130.32 £108.60
28	HA486018W In stock	Frame - Grassbag	£43.49 £36.24
29	HA480140 In stock	Deflector - Rear	£23.64 £19.70
30	HA03997 In stock	Pin-Roll	£1.84 £1.53
31	HA480131 In stock	Spring - Deflector Rh	£4.57 £3.81
32	HA480062 Available to backorder	Rod - Deflector	£42.54 £35.45
34	HA09549 Available to backorder	Bolt	£1.63 £1.36
35	HA480134 In stock	Knob-Hoc	£2.36 £1.97
36	HA486019 In stock	Grassbag - Fabric	£61.79 £51.49
37	HA480130 In stock	Spring - Deflector Lh	£5.24 £4.37
38	HA480082V Available to backorder	Plate - Location Lh	£7.16 £5.97
41	HA480050 Available to backorder	Bearing - Apto	£11.60 £9.67
42	HA09575 In stock	Screw-Taptite	£1.84 £1.53
43	HA340154 Available to backorder	Bushing	£6.00 £5.00
44	HA09349 In stock	Screw	£1.84 £1.53
46	HA480128 Available to backorder	Lever - Hoc	£8.65 £7.21
47	HA480147 Available to backorder	Ratchet Hoc Moulding	£11.46 £9.55
49	HA09545 In stock	Screw-Taptite	£1.84 £1.53
50	HA219102 In stock	Housing-Bearing. Roller	£14.33 £11.94
52	HA480133 Available to backorder	Spring Tension - Rear Axle	£3.71 £3.09
53	HA09262 Available to backorder	Washer	£1.74 £1.45
54	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
56	HA09657 Available to backorder	Nut-Insert. Ni	£1.63 £1.36
57	HA09658 Available to backorder	Washer	£1.63 £1.36
58	HAMU42189 Available to backorder	Rope Stop	£5.00 £4.17
59	HA486016 Available to backorder	Handle Bridge	£18.43 £15.36
60	HA03469 Available to backorder	Washer-Spring	£1.63 £1.36
61	HA219051 Available to backorder	17T Sprocket Assy	£22.31 £18.59
64	HA1428 Available to backorder	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.76 £1.47
65	HA480097 In stock	Washer	£1.81 £1.51
66	HA480206 Available to backorder	Cover - Transmission	£24.97 £20.81

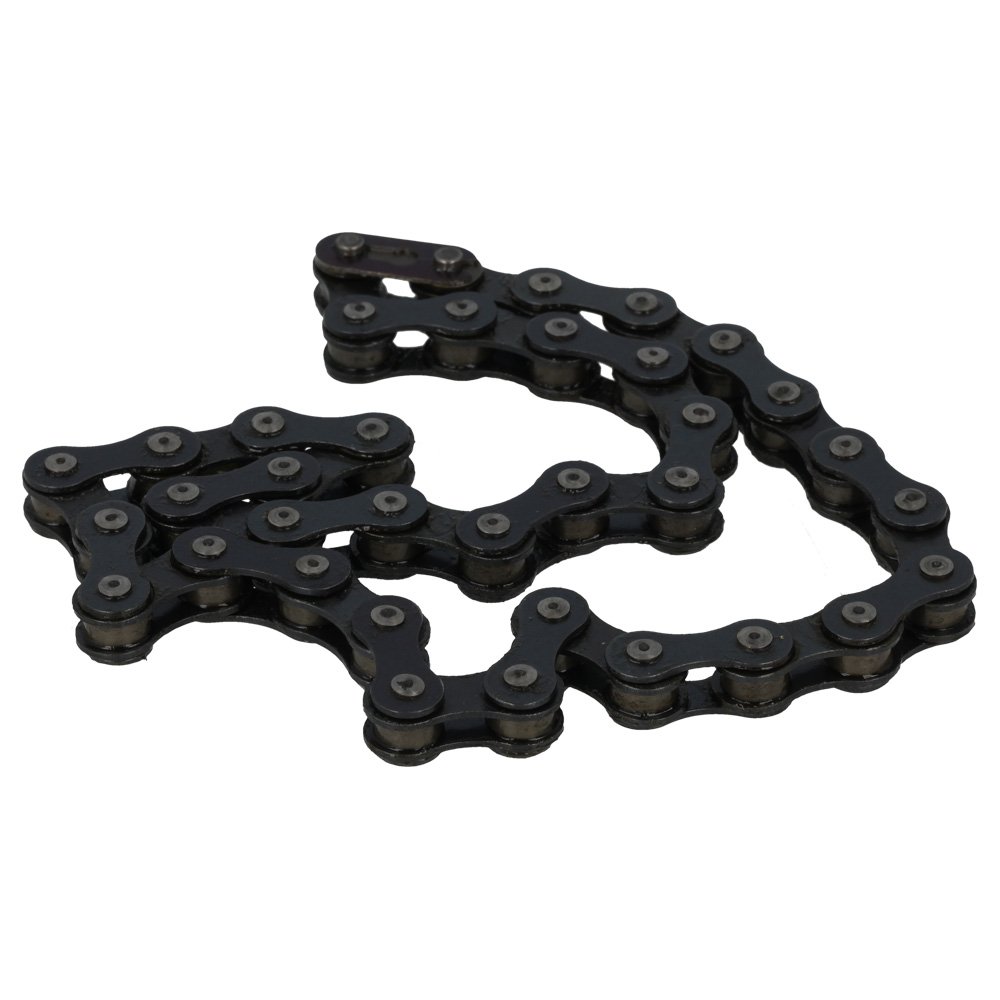

67	HA480209 In stock	Chain	£11.90 £9.92
69	HA219037 In stock	Plate-Securing	£1.80 £1.50
70	HA480017W Available to backorder	Filler Throwplate	£22.00 £18.33
71	HA480208 Available to backorder	Pulley - Sprocket Fixed Speed	£83.16 £69.30

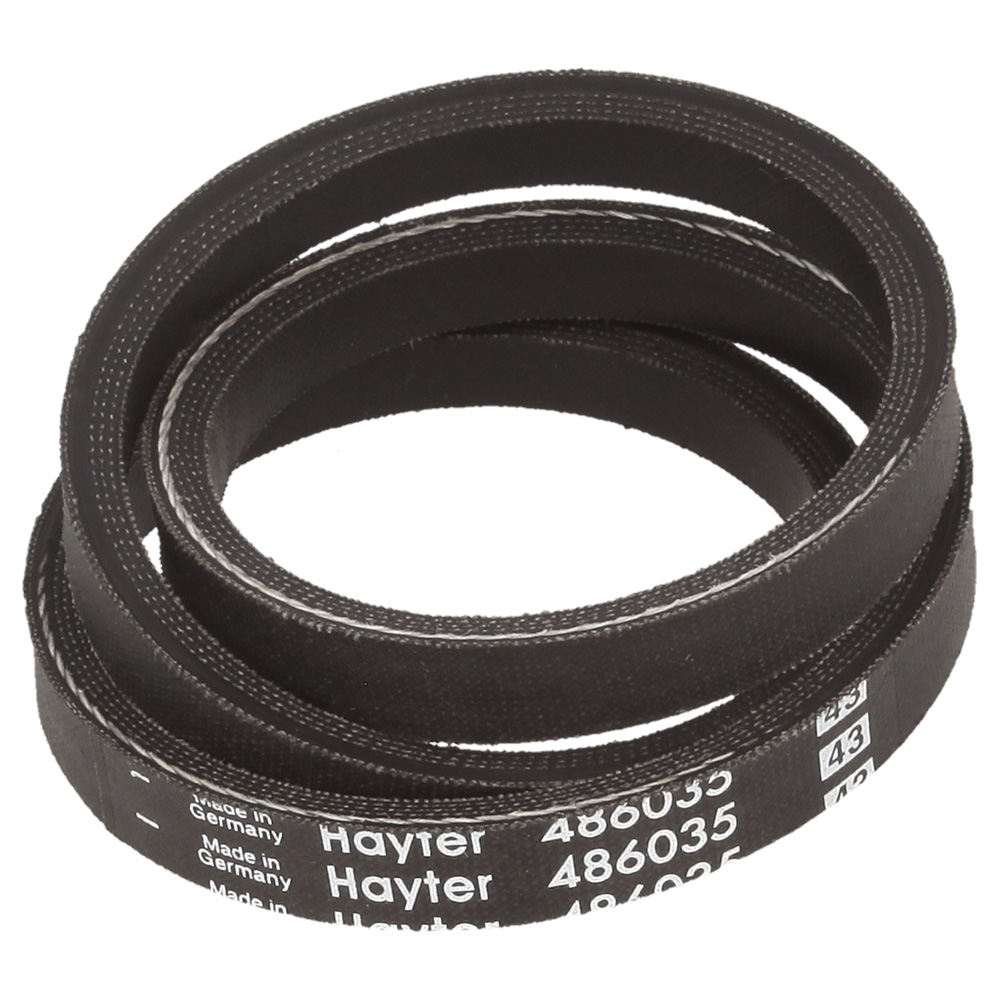

72	HA486035 Available to backorder	Belt - V Apto	£15.18 £12.65
73	HA02575 Available to backorder	Washer	£1.68 £1.40
74	HA03096 In stock	Circlip	£1.75 £1.46
75	HA219156 In stock	Pulley - Jockey	£1.85 £1.54
76	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
79	HA486034 Available to backorder	Pulley - Drive Apto	£60.19 £50.16
80	HA480066 Available to backorder	Spring - Torsion Idler	£9.29 £7.74
81	HAHY4452 In stock	Bush	£3.86 £3.22
82	HA09280 Available to backorder	Washer-Plain	£1.55 £1.29
83	HA09273 In stock	Washer-Spring	£1.84 £1.53
84	HA09121 Available to backorder	Bolt	£1.74 £1.45
86	HA480149 In stock	Cutterblade - 19 Inch	£29.04 £24.20
89	HA480072 Available to backorder	Spacer	£6.95 £5.79
90	HA219143 Available to backorder	Hub Cap	£7.26 £6.05
91	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.81 £1.51
92	HA111-1250 In stock	Wheel-Ribbed	£35.56 £29.63
93	HA219031 Available to backorder	Axle - Front W/A	£53.36 £44.47
94	HA219036 In stock	Moulding - Front Axle Bearing	£6.54 £5.45
95	HA480013 In stock	Fin - Front Insert	£18.44 £15.37
96	HA410087 In stock	Decal Hayter Royal Warrant	£6.24 £5.20
97	HA480086 Available to backorder	Nut - M8 Shouldered	£8.11 £6.76
98	HAHY234051 In stock	Cap-Nut	£1.76 £1.47
99	HA300160 Available to backorder	Plug	£1.76 £1.47
103	HA480157W Available to backorder	Bracket Hoc	£40.08 £33.40
104	HA480132 In stock	Spring-Torsion. Hoc	£1.27 £1.06
105	HA09336 Available to backorder	Rivet	£1.61 £1.34
106	HA09634 In stock	Screw	£1.75 £1.46
107	HA480156 In stock	Ratchet	£22.14 £18.45
108	HA486007 Available to backorder	Engine Brake Cable	£9.91 £8.26
111	HA09368 Available to backorder	Screw-HH	£1.74 £1.45
112	HA09475 Available to backorder	Washer	£1.76 £1.47
113	HA09668 Available to backorder	Bolt-Coach	£1.55 £1.29
114	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
116	HA480164 Available to backorder	Guard Transmission	£6.41 £5.34
117	HA09780 Available to backorder	Setscrew	£1.86 £1.55
