Hayter Harrier 48 BBC - 419N (419N001001 - 419N099999) - Mainframe Assembly

Description

Hayter Harrier 48 Blade Brake Clutch Mower - 419N

Serial No: 419N001001 - 419N099999

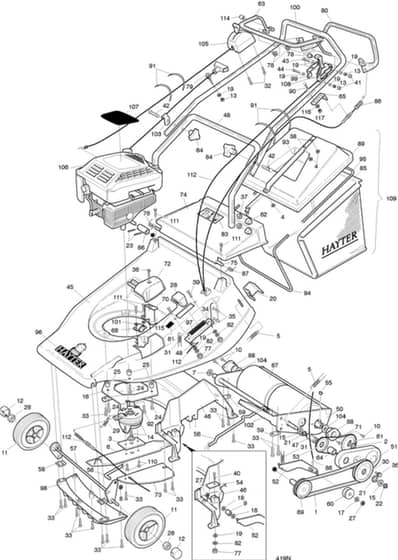

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA219110	Belt V	Out of stock	£21.13 £17.61
2	HA1428	1/4-20 x 5/8 Hex Hd. Cap Screw	Out of stock	£1.63 £1.36
4	HA09257	Washer	Out of stock	£1.72 £1.43
5	HA5421	Spring Rear Axle Tension	Out of stock	£2.86 £2.38
6	HA419028	Cutterbar 19" BBC	Out of stock	£51.36 £42.80
8	HA04020	Grip-Fix	Out of stock	£1.70 £1.42
9	HAHY4452	Bush	In stock	£3.41 £2.84
10	HA09545	Screw-Taptite	In stock	£1.81 £1.51
11	HA111-1250	Wheel-Ribbed	In stock	£32.40 £27.00
12	HA219143	Hub Cap	Out of stock	£7.32 £6.10
13	HA09544	Nut-Nyloc	Out of stock	£1.56 £1.30
15	HA02575	Washer	Out of stock	£1.72 £1.43
17	HA09266	Washer-Plain	Out of stock	£1.52 £1.27
18	HA09280	Washer-Plain	Out of stock	£1.63 £1.36
19	HA09472	Washer-Plain	Out of stock	£1.55 £1.29
21	HA02708	Circlip Ext 3/4"	Out of stock	£0.23 £0.19
22	HA03096	Circlip	In stock	£1.73 £1.44
23	HA03997	Pin-Roll	In stock	£1.69 £1.41
26	HA4486	Nut Unf 1/2" Nyloc Ext Thin5/16"	Out of stock	£1.18 £0.98
27	HA0201086	Washer-Starlock	In stock	£1.70 £1.42
28	HA330053	Cover Lever	Out of stock	£5.89 £4.91
29	HA343011	Spring Blade Brake Tension	Out of stock	£10.03 £8.36
31	HA1246	Spring Clutch Shoe Return	Out of stock	£3.41 £2.84
33	HA09365	Screw M6 x 16 Taptite Hex Hd	In stock	£1.72 £1.43
34	HA340102	Plate Ratchet	Out of stock	£32.76 £27.30
35	HA09548	Bolt-Coach	Out of stock	£1.63 £1.36
36	HA09546	Screw-Taptite	Out of stock	£1.72 £1.43
37	HA09441	Nut-Hex. Ni	Out of stock	£1.69 £1.41
38	HA09320	Rivet	Out of stock	£1.72 £1.43
39	HA09668	Bolt-Coach	Out of stock	£1.63 £1.36
40	HA09547	Screw-HH	Out of stock	£1.72 £1.43
41	HA343025	Cap-Plastic	Out of stock	£1.72 £1.43
42	HA09569	Bolt Coach M8 x 45 C/Sq Gd 4.6	Out of stock	£1.61 £1.34
47	HA219095	Idler Sprocket Sleeve	Out of stock	£22.90 £19.08
49	HA70-07-109	Clip-Cable	Out of stock	£4.02 £3.35
52	HAHY219023	Lever Jockey Assy	Out of stock	£59.59 £49.66
53	HA219106	Sprocket 10T	Out of stock	£13.54 £11.28
56	HA219030	Connecting Rod	In stock	£22.08 £18.40
57	HA219031	Axle - Front W/A	Out of stock	£56.03 £46.69
58	HA219036	Moulding - Front Axle Bearing	Out of stock	£4.94 £4.12
59	HA219037	Plate-Securing	Out of stock	£1.69 £1.41
60	HA219156	Pulley - Jockey	Out of stock	£1.76 £1.47
61	HA219051	17T Sprocket Assy	Out of stock	£23.42 £19.52
62	HAHY234051	Cap-Nut	In stock	£1.55 £1.29
64	HA219053	Sleeve Sprocket Tube	Out of stock	£9.95 £8.29
66	HA219142	Coupling	Out of stock	£34.39 £28.66
68	HA219060	Moulding Bearing Housing	Out of stock	£9.00 £7.50
69	HA219140	Pulley Assy	Out of stock	£47.27 £39.39
70	HA219064	Bracket Belt Guide	Out of stock	£8.69 £7.24
71	HA219054	Chain 30 Pitch 1/2" x 1/8"	In stock	£14.44 £12.03
72	HA219067	Cover Pto	Out of stock	£18.40 £15.33
74	HA219072	Deflector Rear	Out of stock	£45.68 £38.07
75	HA219074	Rod Pivot	Out of stock	£11.56 £9.63
76	HA219096	Spring Deflector R/H	In stock	£3.23 £2.69
77	HA09437	Nut	Out of stock	£1.72 £1.43
78	HA226034	Clutch Lever	Out of stock	£2.20 £1.83
79	HA305093	Guide Rope	Out of stock	£1.74 £1.45
80	HA219090	Lever Clutch	Out of stock	£44.95 £37.46
81	HA320006	Decal-Hoc	In stock	£1.69 £1.41
82	HA09474	Washer-Spring	In stock	£1.63 £1.36
83	HA111-0083	Decal - Caution	Out of stock	£2.41 £2.01
84	HA226013	Triangular Handwheel	In stock	£6.80 £5.67
85	HA219081	Grassbag Fabric	Out of stock	£44.80 £37.33
87	HA219075	Spring Deflector L/H	In stock	£3.38 £2.82
88	HA219102	Housing-Bearing. Roller	In stock	£13.30 £11.08
89	HA219082	Cover Moulding	Out of stock	£66.12 £55.10
90	HA09704	Screw	Out of stock	£1.72 £1.43
91	HA3966	Spring - Clip	Out of stock	£1.18 £0.98
92	HAZIS8L030S	Screw - Soc Hd Shld M12 x M10 x 30	Out of stock	£12.71 £10.59
93	HA219083	Handle Grassbag	Out of stock	£17.47 £14.56
94	HA219077	Frame Grassbag	Out of stock	£31.33 £26.11
96	HA410087	Decal	In stock	£5.86 £4.88
101	HA340154	Bushing	Out of stock	£5.95 £4.96
104	HA4017	Washer Nylon	Out of stock	£2.75 £2.29
110	HAHY09732	Screw Soc Hd Csk M10*30 Tufloc	Out of stock	£1.67 £1.39
111	HA09575	Screw-Taptite	In stock	£1.69 £1.41
116	HA09658	Washer	Out of stock	£1.72 £1.43
117	HA09657	Nut-Insert. Ni	Out of stock	£1.72 £1.43
