Description

Hayter Harrier 48 Autodrive Variable Speed Blade Brake Clutch Mower - 475A

Serial No: 409259243 - 999999999

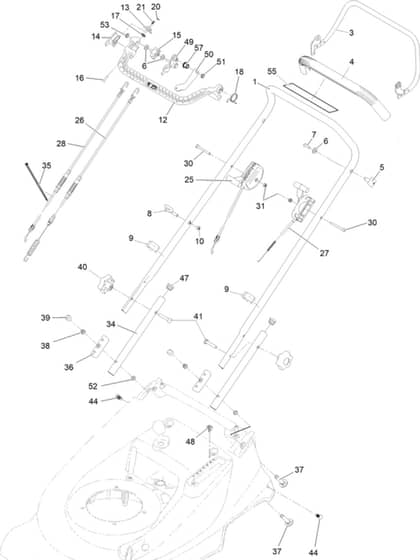

Handlebar - Controls - Parts Diagram

Ref. Img. Part No. Details
  1 Upper Handlebar
Upper Handlebar
HA134-3571-03 In stock
Upper Handlebar
£32.23 £26.86

  3 Clutch Lever
Clutch Lever
HA111-9381-03 In stock
Clutch Lever
£16.27 £13.56

  4
HA111-8716 In stock
"Handle. Soft Grip"
£11.60 £9.67

  5 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  6 Washer
Washer
HA09688 In stock
Washer
£0.68 £0.57

  7 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  8 Guide-Rope
Guide-Rope
HA86-9671 In stock
Guide-Rope
Was £4.94 £4.12 Special Price £3.48 £2.90

  9 Guide-Cable
Guide-Cable
HA410037 In stock
Guide-Cable
£1.46 £1.22

  10 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  12 Arm-Bail
Arm-Bail
HA134-2608 In stock
Arm-Bail
£17.53 £14.61

  13 Lever-Catch
Lever-Catch
HA111-8903 Out of stock
Lever-Catch
£2.20 £1.83

  14 Bcc Latch Button
Bcc Latch Button
HA134-2609 In stock
Bcc Latch Button
£0.74 £0.62

  15 Clamp-Bar
Clamp-Bar
HA111-8990 In stock
Clamp-Bar
£1.80 £1.50

  16 Latch-Pin
Latch-Pin
HA111-8908 Out of stock
Latch-Pin
£1.79 £1.49

  17 Lever-Bail. Spring
Lever-Bail. Spring
HA111-8906 In stock
Lever-Bail. Spring
£0.74 £0.62

  18 Lever-Bail Arm. Spring
Lever-Bail Arm. Spring
HA134-2284 In stock
Lever-Bail Arm. Spring
£4.57 £3.81

  20 Fastener-Starlock. Push-On
Fastener-Starlock. Push-On
HA111-0718 In stock
Fastener-Starlock. Push-On
£1.46 £1.22

  21 Clip-Tree
Clip-Tree
HA134-2027 In stock
Clip-Tree
£0.55 £0.46

  25 Cable Variator
Cable Variator
HA134-2552 In stock
Cable Variator
£47.44 £39.53

  26 Cable Clutch
Cable Clutch
HA134-0304 In stock
Cable Clutch
£11.51 £9.59

  27 Control Throttle
Control Throttle
HA134-2246 Out of stock
Control Throttle
£25.57 £21.31

  28 BBC Cable
BBC Cable
HA134-2615 Out of stock
BBC Cable
£51.23 £42.69

  30 Setscrew
Setscrew
HA09780 Out of stock
Setscrew
£1.87 £1.56

  31 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35

  34 Handlebar Lower
Handlebar Lower
HA111-9837-03 In stock
Handlebar Lower
£2.98 £2.48

  35 Tie-Cable
Tie-Cable
HAHY3966 Out of stock
Tie-Cable
£1.56 £1.30

  36 Plate-Clamp. Handlebar
Plate-Clamp. Handlebar
HA340028 In stock
Plate-Clamp. Handlebar
£6.26 £5.22

  37 Bolt-Coach
Bolt-Coach
HA09379 Out of stock
Bolt-Coach
£1.62 £1.35

  38 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  39 Cap-Nut
Cap-Nut
HAHY234051 In stock
Cap-Nut
£1.56 £1.30

  40 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  41 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  44 Plastic Fir Tree Rivet 8.7mm
Plastic Fir Tree Rivet 8.7mm
HA111-9831 Out of stock
Plastic Fir Tree Rivet 8.7mm
£1.37 £1.14

  47 Plug
Plug
HA300160 Out of stock
Plug
£1.62 £1.35

  48 Clip-Conduit. Twin
Clip-Conduit. Twin
HA111-8696 Out of stock
Clip-Conduit. Twin
£1.04 £0.87

  49 Anchor Plate Welded
Anchor Plate Welded
HA134-2660 In stock
Anchor Plate Welded
£13.40 £11.17

  50 BBC Linkage Assembly
BBC Linkage Assembly
HA134-2662 In stock
BBC Linkage Assembly
£8.23 £6.86

  51 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  52 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  53 Starlock-Domed
Starlock-Domed
HA134-3208 In stock
Starlock-Domed
£0.53 £0.44

  55 Tape - Toffee
Tape - Toffee
HA134-3328 Out of stock
Tape - Toffee
£0.74 £0.62

  57 Bush. Igus
Bush. Igus
HA134-1761 In stock
Bush. Igus
£1.00 £0.83


Description

Hayter Harrier 48 Autodrive Variable Speed Blade Brake Clutch Mower - 475A

Serial No: 409259243 - 999999999

Handlebar - Controls - Parts Diagram
