Description

Hayter Harrier 48 Autodrive Variable Speed Mower - 474A

Serial No: 404000000 - 406999999

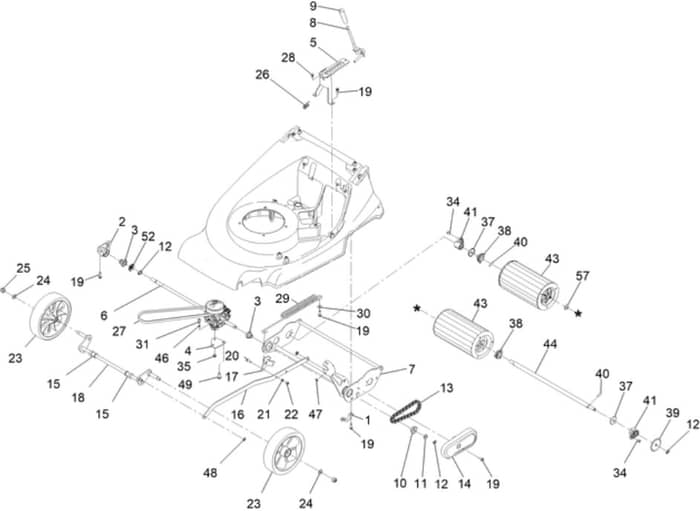

Traction - Suspension - Hoc - Parts Diagram

Ref. Img. Part No. Details
  1 Axle- Support. Rear
Axle- Support. Rear
HA111-8670 In stock
Axle- Support. Rear
£2.47 £2.06

  2 Rear Frame Bearing Mount
Rear Frame Bearing Mount
HA111-8576 Out of stock
Rear Frame Bearing Mount
£7.86 £6.55

  3 Bearing. Ball 12mm
Bearing. Ball 12mm
HA134-2889 In stock
Bearing. Ball 12mm
£11.38 £9.48

  4 Bracket Gearbox
Bracket Gearbox
HA134-2260 In stock
Bracket Gearbox
Was £3.43 £2.86 Special Price £2.02 £1.68

  5 Hoc Tower Assembly
Hoc Tower Assembly
HA111-8675 In stock
Hoc Tower Assembly
Was £13.93 £11.61 Special Price £8.54 £7.12

  6 Mc600 Gearbox With Vari Pulley
Mc600 Gearbox With Vari Pulley
HA134-8047 In stock
Mc600 Gearbox With Vari Pulley
£118.08 £98.40

  7 Rear Axle Frame Assembly
Rear Axle Frame Assembly
HA111-8623-03 Out of stock
Rear Axle Frame Assembly
£88.68 £73.90

  8 Lever Hoc Assy
Lever Hoc Assy
HA134-2282 Out of stock
Lever Hoc Assy
£7.00 £5.83

  9 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.34 £1.95

  10 Sprocket 10T
Sprocket 10T
HA111-7578 In stock
Sprocket 10T
£10.08 £8.40

  11 Washer-Thrust
Washer-Thrust
HA111-8216 In stock
Washer-Thrust
£1.34 £1.12

  12 Circlip-External. Hd
Circlip-External. Hd
HA134-0254 In stock
Circlip-External. Hd
£0.72 £0.60

  13 Chain 42 Pitches 3/8
Chain 42 Pitches 3/8
HA134-2655 In stock
Chain 42 Pitches 3/8" Inc Link
£12.38 £10.32

  14 Chain Guard
Chain Guard
HA134-3771 In stock
Chain Guard
£2.04 £1.70

  15 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.82 £1.52

  16 Connecting Rod
Connecting Rod
HA111-8729 In stock
Connecting Rod
Was £10.38 £8.65 Special Price £6.36 £5.30

  17 Spring Load Lever
Spring Load Lever
HA134-2254 In stock
Spring Load Lever
Was £1.86 £1.55 Special Price £1.14 £0.95

  18 Front Axle Assembly
Front Axle Assembly
HA134-4820 Out of stock
Front Axle Assembly
£40.38 £33.65

  19 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.69 £1.41

  20 Screw-HH
Screw-HH
HA09363 In stock
Screw-HH
£1.61 £1.34

  21 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.55 £1.29

  22 Nut-Nyloc
Nut-Nyloc
HA09544 Out of stock
Nut-Nyloc
£1.56 £1.30

  23 Wheel 8
Wheel 8
HA111-8858 In stock
Wheel 8". Pvc Tyre
£20.80 £17.33

  23 Wheel Asm-8Inch Semi-Pneu
Wheel Asm-8Inch Semi-Pneu
HA111-9270 Out of stock
Wheel Asm-8Inch Semi-Pneu
£27.83 £23.19

  24 Washer-Plain
Washer-Plain
HA09479 Out of stock
Washer-Plain
£1.62 £1.35

  25 Nut
Nut
HA09447 Out of stock
Nut
£1.72 £1.43

  26 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 Out of stock
Spring-Torsion. Hoc
£1.21 £1.01

  27 V Belt
V Belt
HA111-8709 In stock
V Belt
£17.80 £14.83

  28 Rivet-Push. Plastic
Rivet-Push. Plastic
HA134-0262 Out of stock
Rivet-Push. Plastic
£1.21 £1.01

  29 Spring Counter Balance
Spring Counter Balance
HA134-0388 In stock
Spring Counter Balance
£17.70 £14.75

  30 Washer
Washer
HA09263 In stock
Washer
£1.63 £1.36

  31 Shoulder Bolt
Shoulder Bolt
HA111-9762 In stock
Shoulder Bolt
Was £10.07 £8.39 Special Price £6.18 £5.15

  34 Screw-Taptite
Screw-Taptite
HA134-0050 In stock
Screw-Taptite
£0.70 £0.58

  35 Nut-Hf
Nut-Hf
HA137-3005 In stock
Nut-Hf
£0.50 £0.42

  37 Washer-Thrust
Washer-Thrust
HA111-8602 In stock
Washer-Thrust
£1.13 £0.94

  38 Cam-Drive
Cam-Drive
HA134-2924 In stock
Cam-Drive
£7.69 £6.41

  39 Sprocket
Sprocket
HA134-3806 In stock
Sprocket
£8.06 £6.72

  40 Key-Drive
Key-Drive
HA134-2034 In stock
Key-Drive
£2.90 £2.42

  41 Bush. Rear Roller
Bush. Rear Roller
HA134-2635 In stock
Bush. Rear Roller
£12.00 £10.00

  43 Roller Half Assembly
Roller Half Assembly
HA111-8720 In stock
Roller Half Assembly
£21.35 £17.79

  44 Roller Shaft
Roller Shaft
HA111-8722 In stock
Roller Shaft
£42.29 £35.24

  46 O-Ring
O-Ring
HA134-2791 Out of stock
O-Ring
£0.48 £0.40

  47 Grip-Fix
Grip-Fix
HA04020 Out of stock
Grip-Fix
£1.70 £1.42

  48 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.70 £1.42

  49 Screw-Hwh
Screw-Hwh
HA134-2299 In stock
Screw-Hwh
Was £0.55 £0.46 Special Price £0.18 £0.15

  52 Washer-Thrust
Washer-Thrust
HA134-2623 Out of stock
Washer-Thrust
£0.46 £0.38

  57 Washer-Flat
Washer-Flat
HA108-0015 In stock
Washer-Flat
£0.55 £0.46


Description

Hayter Harrier 48 Autodrive Variable Speed Mower - 474A

Serial No: 404000000 - 406999999

Traction - Suspension - Hoc - Parts Diagram
